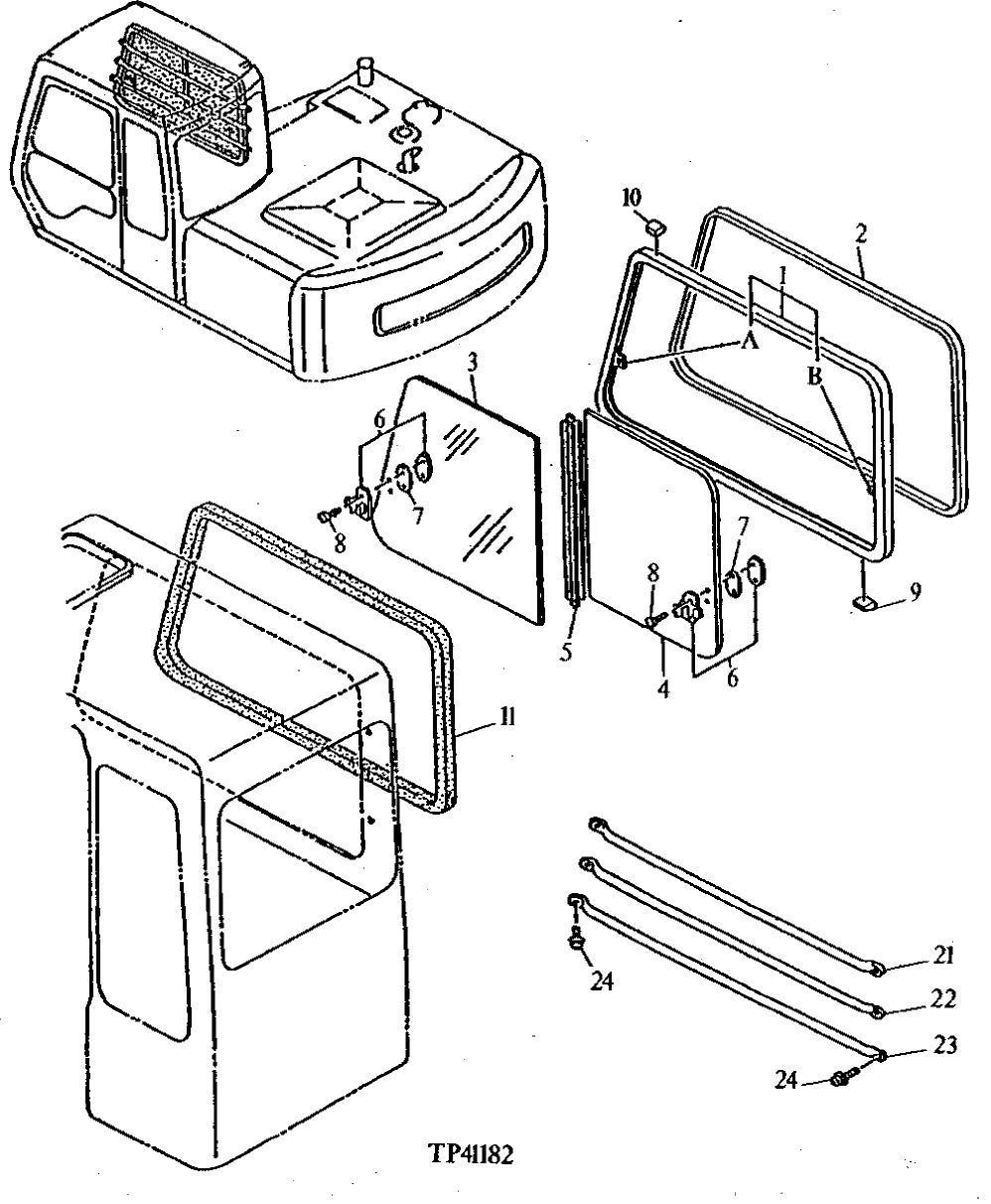

Запчасти John Deere 90E 118 - Cab Windows 1810 Operator Enclosure

0

4282696

Cab

(SUB FOR AT154356) (CONTAINS ALL ITEMS ON T HIS PAGE ADDITIONAL COMPONENTS LISTED ON PRE VIOUS AND FOLLOWING PAGES) Not Illustrated

1шт.

1

4324579

Frame

(SUB FOR AT157084, 4304835)

1шт.

1A

Catch

( AT157085 NLA)

1шт.

1B

Catch

(NLA)

1шт.

2

4295623

Frame

(SUB FOR AT157087)

1шт.

3

AT154435

Windowpane

1шт.

4

AT154436

Windowpane

1шт.

5

4295626

Weatherstrip

(SUB FOR AT157089)

1шт.

6

4369653

Lock

(SUB FOR 4295610 AND AT157079)

2шт.

7

4420531

Spacer

(SUB FOR 4295611) (SUB FOR AT157080)

2шт.

8

4219753

Screw

(SUB FOR TH110774)

4шт.

9

4147896

Spacer

(SUB FOR TH108646)

9шт.

10

4204567

Spacer

(SUB FOR TH108647)

3шт.

11

Molding

(MAKE FROM TH108667 BULK MATERICAL, CTL)

1шт.

21

4295628

Guard

(SUB FOR AT157091)

1шт.

22

4295629

Guard

(SUB FOR AT157092)

1шт.

23

4295633

Guard

(SUB FOR AT157093)

1шт.

24

4295634

Screw

(SUB FOR AT157094)

6шт.

19M7881

Screw

M8 X 20 (SUB FOR 4320170, A LONG W/ 24H1290 AND 12M7065)

6шт.

24H1290

Washer

21/64" X 3/4" X 0.035"

6шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

6шт.
