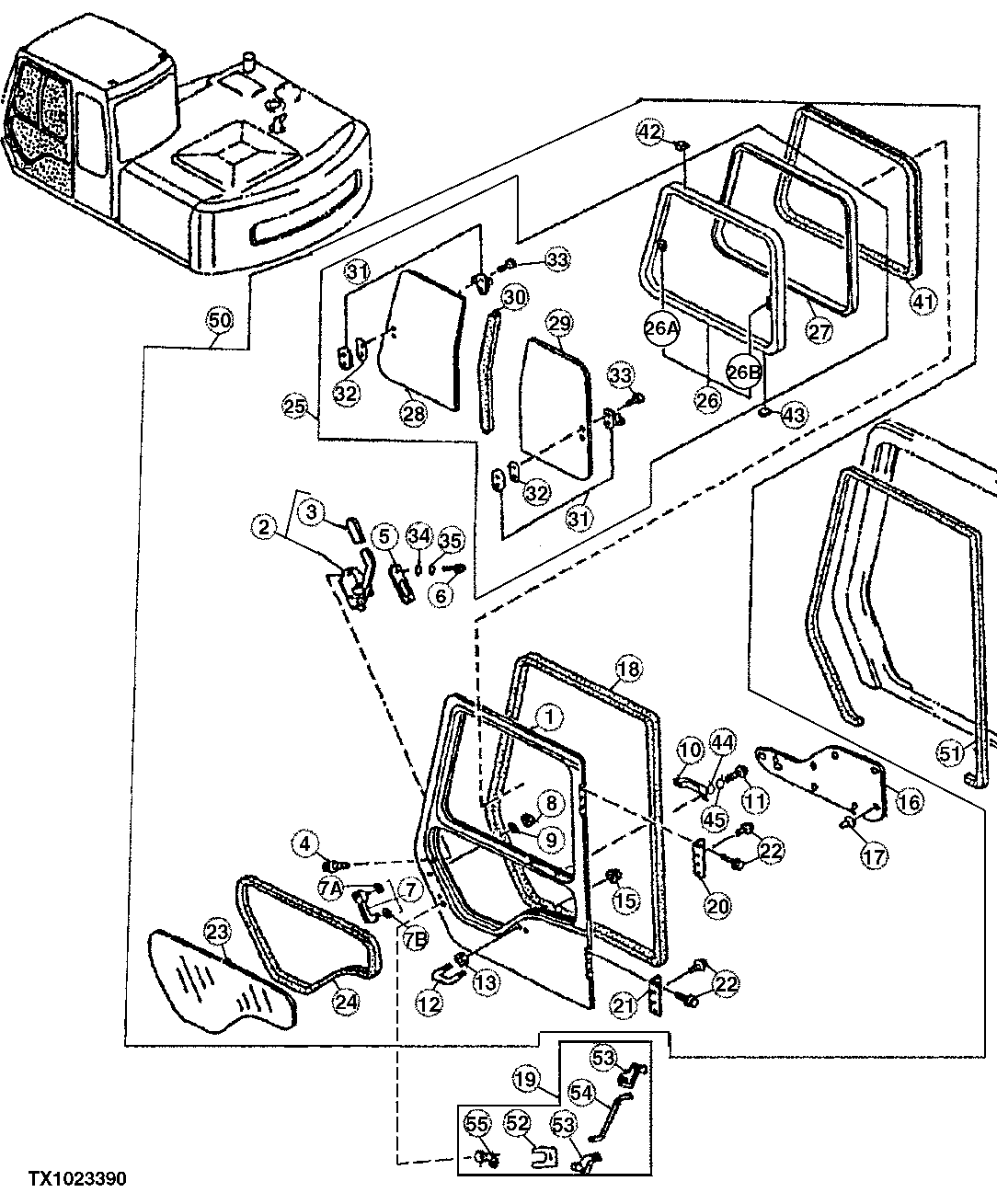

Запчасти John Deere 90E 117 - Cab Door 1810 Operator Enclosure

19

Lock

( 4295588 NLA) Order Individual Components

1шт.

20

4295589

Hinge

(SUB FOR AT157072)

1шт.

21

4295590

Hinge

(SUB FOR AT157073)

1шт.

22

R168831

Cap Screw

(SUB FOR AT157074 OR 4295578)

12шт.

24M7271

Washer

10.500 X 20 X 2 mm

12шт.

23

AT154422

Windowpane

1шт.

24

4289513

Isolator

(SUB FOR AT154423)

1шт.

25

Frame

(NLA)

1шт.

26

4295591

Frame

(SUB FOR AT157075)

1шт.

26A

Catch

1шт.

26B

Catch

1шт.

27

4295606

Molding

(SUB FOR AT157077)

1шт.

28

AT154426

Windowpane

1шт.

29

AT154425

Windowpane

1шт.

30

4295609

Weatherstrip

(SUB FOR AT157078)

1шт.

31

4369653

Lock

(SUB FOR AT157079 AND 4295610)

2шт.

32

4420531

Spacer

(SUB FOR 4295611) (SUB FOR AT157080)

2шт.

33

4219753

Screw

(SUB FOR TH110774)

4шт.

34

12M7064

Lock Washer

5 mm

2шт.

35

24M7348

Washer

5.500 X 10 X 1 mm

2шт.

41

Molding

(MAKE FROM TH108667 BULK MATERIAL, CTL)

1шт.

42

4204567

Spacer

(SUB FOR TH108647)

3шт.

43

4147896

Spacer

(SUB FOR TH108646)

8шт.

44

12M7006

Lock Washer

6 mm

2шт.

45

24H1287

Washer

9/32" X 5/8" X 0.065"

2шт.

50

4304828

Door

(SUB FOR AT157055)

1шт.

51

Molding

(MAKE FROM TH108667 BULK MATERIAL, CTL)

1шт.

52

4372091

Clip

(SUB FOR AT176790) (SUB FOR 4328638)

1шт.

53

4328639

Holder

(SUB FOR AT176795)

2шт.

54

4362997

Link

(SUB FOR AT176793)

1шт.

55

4362135

Lock

(SUB FOR AT176789)

1шт.

AT194969

Key

(SUB FOR AT147803) (H800) Not Illustrated

1шт.
