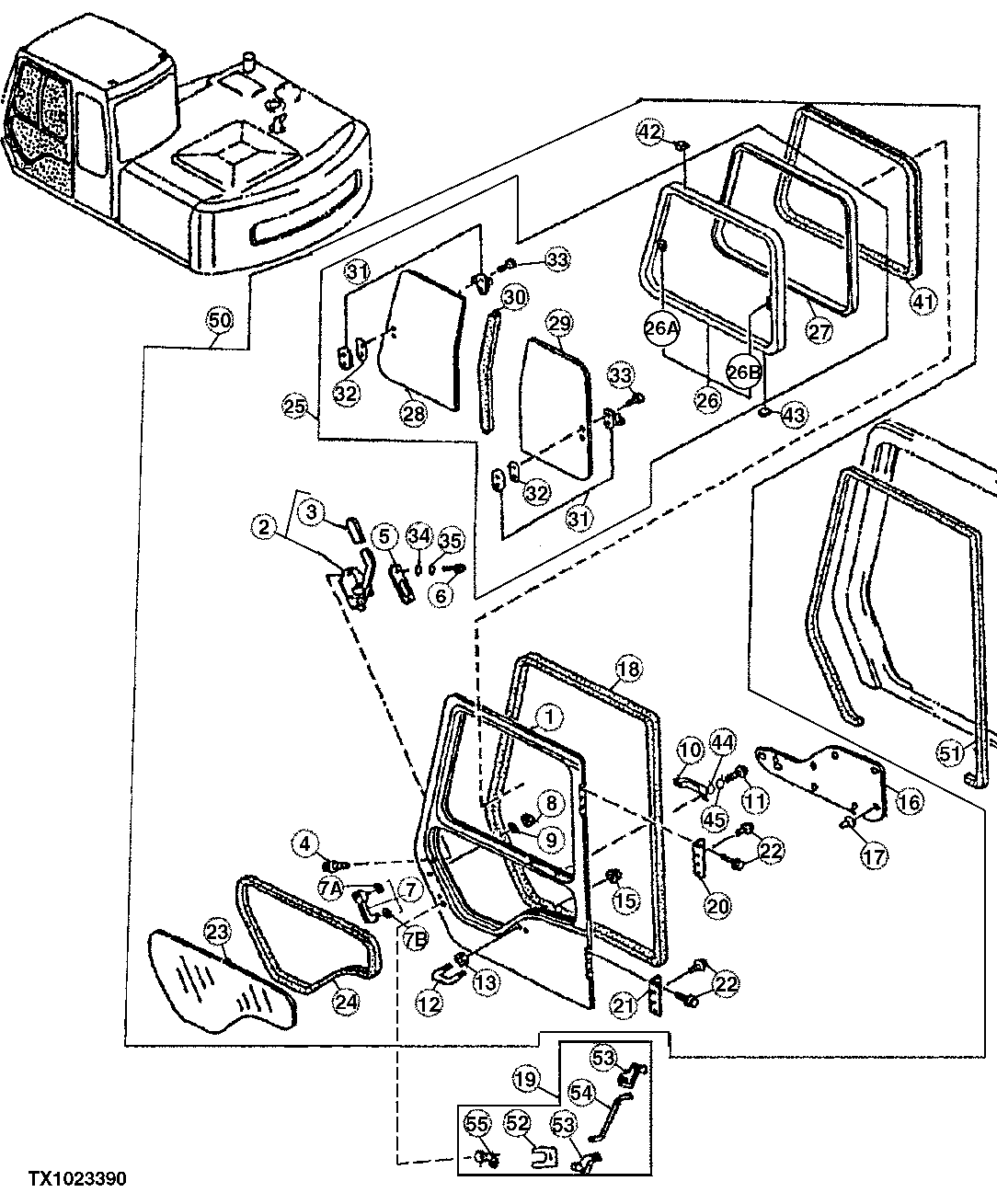

Запчасти John Deere 90E 116 - Cab Door 1810 Operator Enclosure

0

4282696

Cab

(SUB FOR AT154356) (CONTAINS ALL ITEMS ON T HIS PAGE ADDITIONAL COMPONENTS LISTED ON PRE VIOUS AND FOLLOWING PAGES) Not Illustrated

1шт.

1

Door

(NLA)

1шт.

2

4295576

Lock

(SUB FOR AT157063)

1шт.

3

4295577

Cover

(SUB FOR AT157064)

1шт.

4

19M8425

Cap Screw

M6 X 16

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

19M8425

Cap Screw

M6 X 16 (SUB FOR 4320168, A LONG W/ 24H1287 AND 12M7006)

4шт.

24H1287

Washer

9/32" X 5/8" X 0.065"

4шт.

12M7006

Lock Washer

6 mm

4шт.

5

4295585

Cover

(SUB FOR AT157065)

1шт.

6

19M7372

Cap Screw

M5 X 16

2шт.

7

4295581

Handle

(SUB FOR AT157066) Outer

1шт.

7A

4323455

Packing

(SUB FOR AT164071)

1шт.

7B

4323456

Packing

(SUB FOR AT164072)

1шт.

8

Nut

(SUB FOR 14M7273, THIS APPLICATION ) (SUB FOR AT163959) ( 4321892 NLA)

2шт.

14M7273

Nut

M8

2шт.

12M7065

Lock Washer

8 mm

2шт.

9

Lock Washer

( 12M7065 NO LONGER REQUIRED)

2шт.

10

4204579

Handle

(SUB FOR TH108661) Inner

1шт.

11

19M8425

Cap Screw

M6 X 16

2шт.

12

4304829

Bolt

(SUB FOR AT157067)

1шт.

13

4414857

Nut

(SUB FOR AT157068)

2шт.

15

4414857

Nut

(SUB FOR AT157068)

2шт.

16

Acoustical Upholstery

( 4295730 NLA) (SUB 43722 72, ALONG W/ (9) 4204607)

1шт.

4372272

Pad

(SUB FOR AT200589)

1шт.

17

4204607

Clip

(SUB FOR TH108690)

9шт.

18

4295587

Weatherstrip

(SUB FOR AT157070)

1шт.
