Запчасти John Deere 90E 114 - Cab (020057 - ) 1810 Operator Enclosure

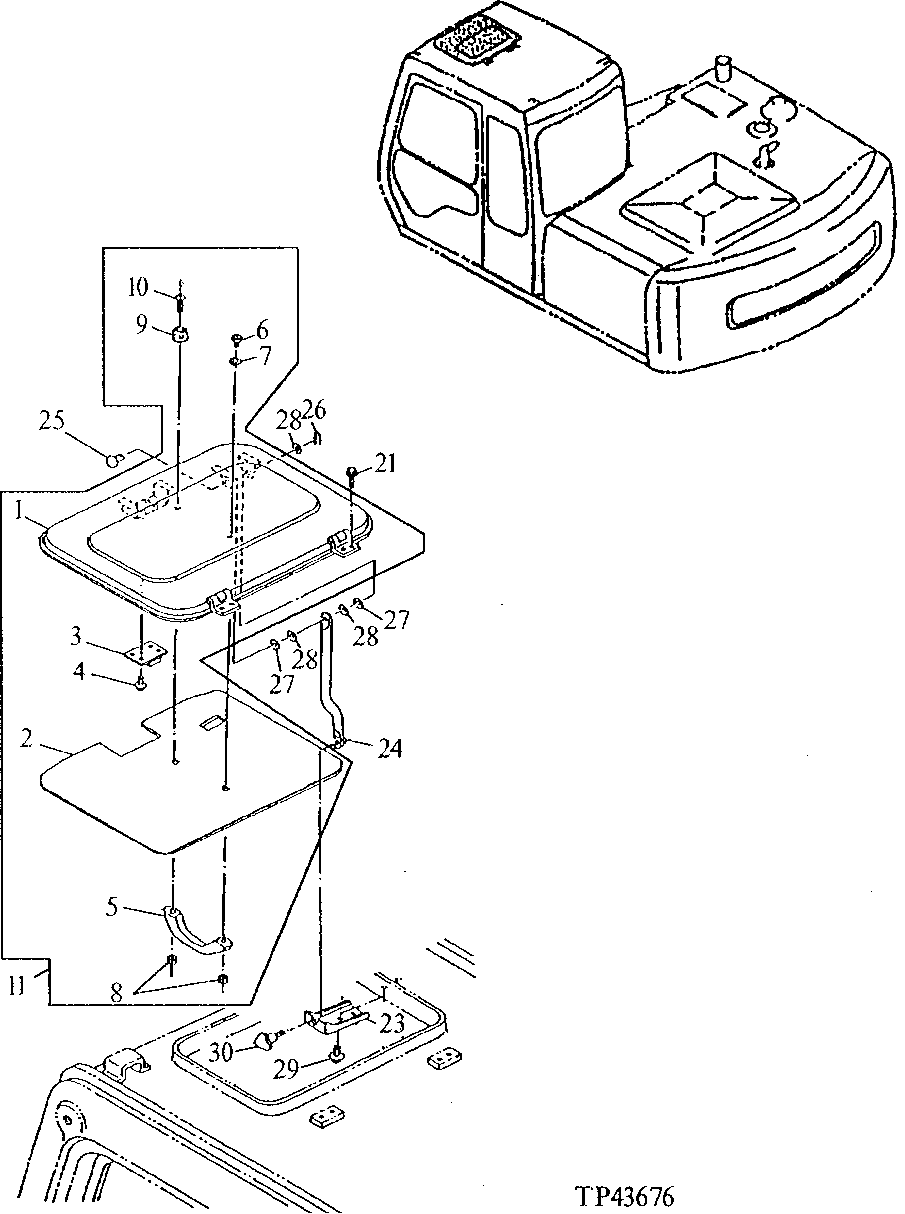

Схема запчастей John Deere 90E - 114 - Cab (020057 - ) 1810 Operator Enclosure

Артикул

Название

Примечание

Количество

0

4282696

Cab

(SUB FOR AT154356) (CONTAINS ALL ITEMS ON T HIS PAGE ADDITIONAL COMPONENTS LISTED ON PRE VIOUS AND FOLLOWING PAGES) Not Illustrated

1шт.

1

4320161

Roof

(SUB AT162727)

1шт.

2

Sealing Trim

( 4316891 NLA) (SUB FOR AT160713)

1шт.

4320162

Acoustical Upholstery

(SUB FOR AT162728)

1шт.

3

4204578

Lock

(SUB FOR TH108660)

1шт.

4

21M7271

Screw

M5 X 16 (SUB FOR 21M6070)

4шт.

12M7064

Lock Washer

5 mm

4шт.

19M7372

Cap Screw

M5 X 16

4шт.

24M7348

Washer

5.500 X 10 X 1 mm

4шт.

5

4204579

Handle

(SUB FOR TH108661)

1шт.

6

4204580

Bumper

(SUB FOR TH108662)

1шт.

7

4204581

Washer

5.500 X 15 X 2 mm (0.217" X 0.5 91" X 0.079") (SUB FOR TH108663)

1шт.

8

14M7297

Nut

M5

2шт.

9

4316892

Cushion

(SUB FOR AT160714)

1шт.

10

21M7325

Screw

M5 X 30

1шт.

11

4320161

Roof

(SUB FOR AT160711 OR AT162727)

1шт.

21

4295487

Bolt

(SUB FOR AT157034)

4шт.

23

4239989

Bracket

(SUB FOR AT130876)

1шт.

24

4341195

Support

(SUB FOR AT130878)

1шт.

25

4239991

Rivet

(SUB FOR AT130879)

1шт.

26

M800051

Pin

(SUB FOR CH10542)

1шт.

27

4239992

Washer

(SUB FOR AT130880)

2шт.

28

24M7054

Washer

6.400 X 12 X 1.600 mm

3шт.

29

21M7192

Screw

M8 X 16

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

4224347

Bolt

(SUB FOR AT121594)

2шт.

19M7932

Cap Screw

M8 X 16

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

30

4289287

Knob

(SUB FOR AT130881)

1шт.

Выбрано товаров: 29
