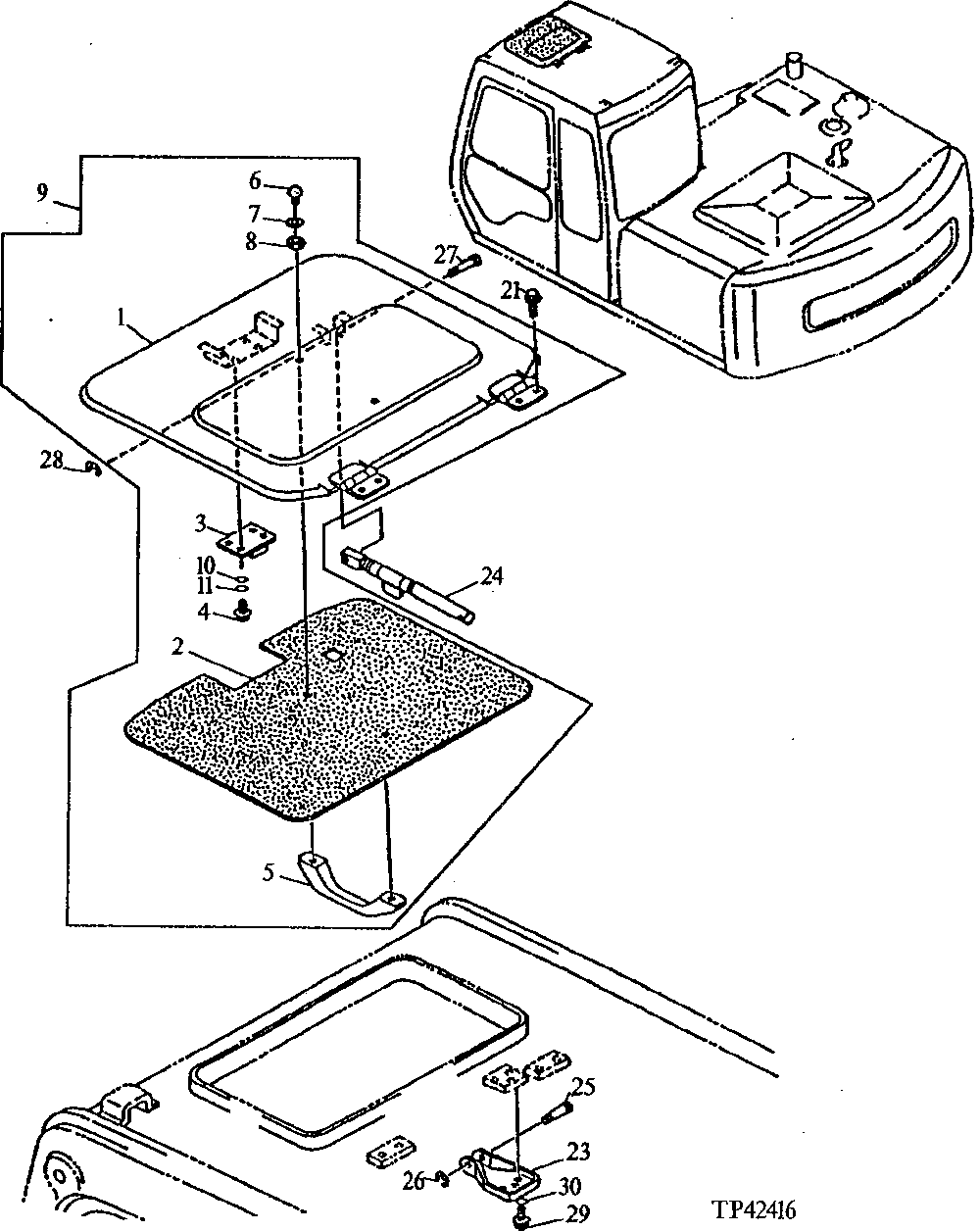

Запчасти John Deere 90E 113 - Cab ( - 020056) 1810 Operator Enclosure

0

4282696

Cab

(SUB FOR AT154356) (CONTAINS ALL ITEMS ON T HIS PAGE - ADDITIONAL COMPONENTS LISTED ON P REVIOUS AND FOLLOWING PAGES) Not Illustrate d

1шт.

1

Cover

(NLA)

1шт.

2

4295557

Sealing Trim

(SUB FOR AT157032)

1шт.

3

4204578

Lock

(SUB FOR TH108660)

1шт.

4

21M7271

Screw

M5 X 16 (SUB FOR 21M6070)

4шт.

5

4204579

Handle

(SUB FOR TH108661)

1шт.

6

4204580

Bumper

(SUB FOR TH108662)

2шт.

7

4204581

Washer

5.500 X 15 X 2 mm (0.217" X 0.5 91" X 0.079") (SUB FOR TH108663)

2шт.

8

14M7297

Nut

M5

2шт.

9

4301932

Roof

(SUB FOR AT157180)

1шт.

10

12M7064

Lock Washer

5 mm

4шт.

11

24M7348

Washer

5.500 X 10 X 1 mm

4шт.

21

4295487

Bolt

(SUB FOR AT157034)

4шт.

23

4310280

Bracket

(SUB FOR AT158405)

1шт.

24

4295554

Lock

(SUB FOR AT157037)

1шт.

25

4295555

Pin

(SUB FOR AT157038)

1шт.

26

4295653

Ring

(SUB FOR AT157039)

1шт.

27

4295555

Pin

(SUB FOR AT157038)

1шт.

28

4295653

Ring

(SUB FOR AT157039)

1шт.

29

19M7923

Cap Screw

M6 X 12

3шт.

30

12M7006

Lock Washer

6 mm

3шт.
