111 - Cab

Запчасти John Deere 90E 111 - Cab 1810 Operator Enclosure

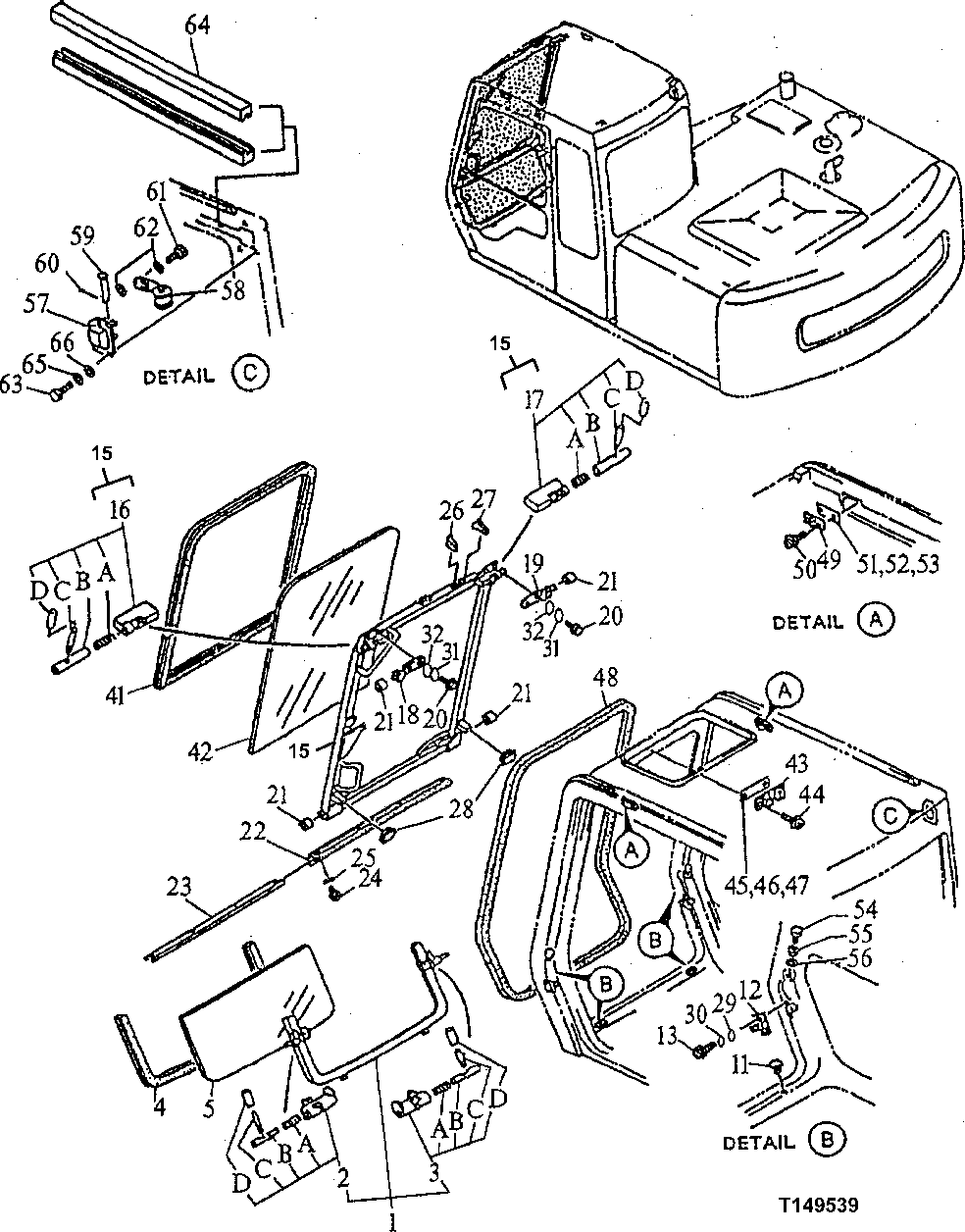

Схема запчастей John Deere 90E - 111 - Cab 1810 Operator Enclosure
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

4282696

Cab

(SUB FOR AT154356) (CONTAINS ALL ITEMS ON T HIS PAGE - FOR ADDITIONAL COMPONENTS SEE PRE VIOUS AND FOLLOWING PAGES) Not Illustrated

1шт.

1

4311738

Frame

(SUB FOR AT156983) (SUB FOR AT159096)

1шт.

2

Lock

(NLA)

1шт.

2A

4204546

Spring

(SUB FOR TH108625)

1шт.

2B

4295479

Pin

(SUB FOR AT156992)

1шт.

2C

4295480

Lever

(SUB FOR AT156993)

1шт.

2D

4295876

Cover

(SUB FOR AT156994)

1шт.

3

Lock

(NLA)

1шт.

3A

4204546

Spring

(SUB FOR TH108625)

1шт.

3B

4204547

Pin

(SUB FOR TH108626)

1шт.

3C

4295480

Lever

(SUB FOR AT156993)

1шт.

3D

4295876

Cover

(SUB FOR AT156994)

1шт.

4

4289522

Isolator

(SUB FOR AT154432)

1шт.

5

AT154431

Windowpane

1шт.

11

4295489

Cushion

(SUB FOR AT156996)

2шт.

12

4204552

Stop

(SUB FOR TH108632)

2шт.

13

21M7246

Screw

M6 X 16

4шт.

19M7923

Cap Screw

M6 X 12

4шт.

15

4311737

Frame

(INCLUDES FRAME, LEFT AND RIGHT LOCKS) (SUB FOR AT156998) (SUB FOR AT159097)

1шт.

16

Lock

(NLA) Left

1шт.

16A

494918

Spring

(SUB FOR TH106783)

1шт.

16B

4204556

Pin

(SUB FOR TH108635)

1шт.

16C

4295480

Lever

(SUB FOR AT156993)

1шт.

16D

4295876

Cover

(SUB FOR AT156994)

1шт.

17

Lock

(NOT AVAILABLE FOR SERVICE) Right

1шт.

17A

494918

Spring

(SUB FOR TH106783)

1шт.

17B

4204556

Pin

(SUB FOR TH108635)

1шт.

17C

4295480

Lever

(SUB FOR AT156993)

1шт.

17D

4295876

Cover

(SUB FOR AT156994)

1шт.

18

4295492

Bracket

(SUB FOR AT157001)

1шт.

19

4295493

Bracket

(SUB FOR AT157002)

1шт.

20

19M7881

Screw

M8 X 20

4шт.

21

4204558

Roller

(SUB FOR TH108638)

4шт.

22

4204559

Isolator

(SUB FOR TH108639)

1шт.

23

4295494

Plate

(SUB FOR AT157003)

1шт.

24

4295650

Screw

(SUB FOR AT157004)

4шт.

25

24M7029

Shim

4шт.

26

4295545

Stop

(SUB FOR AT157005)

1шт.

27

4295546

Stop

(SUB FOR AT157006)

1шт.

28

4295547

Stop

(SUB FOR AT157007)

2шт.

29

12M7006

Lock Washer

6 mm

4шт.

30

24M7105

Washer

6 X 12 X 1.600 mm

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

31

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

32

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.
