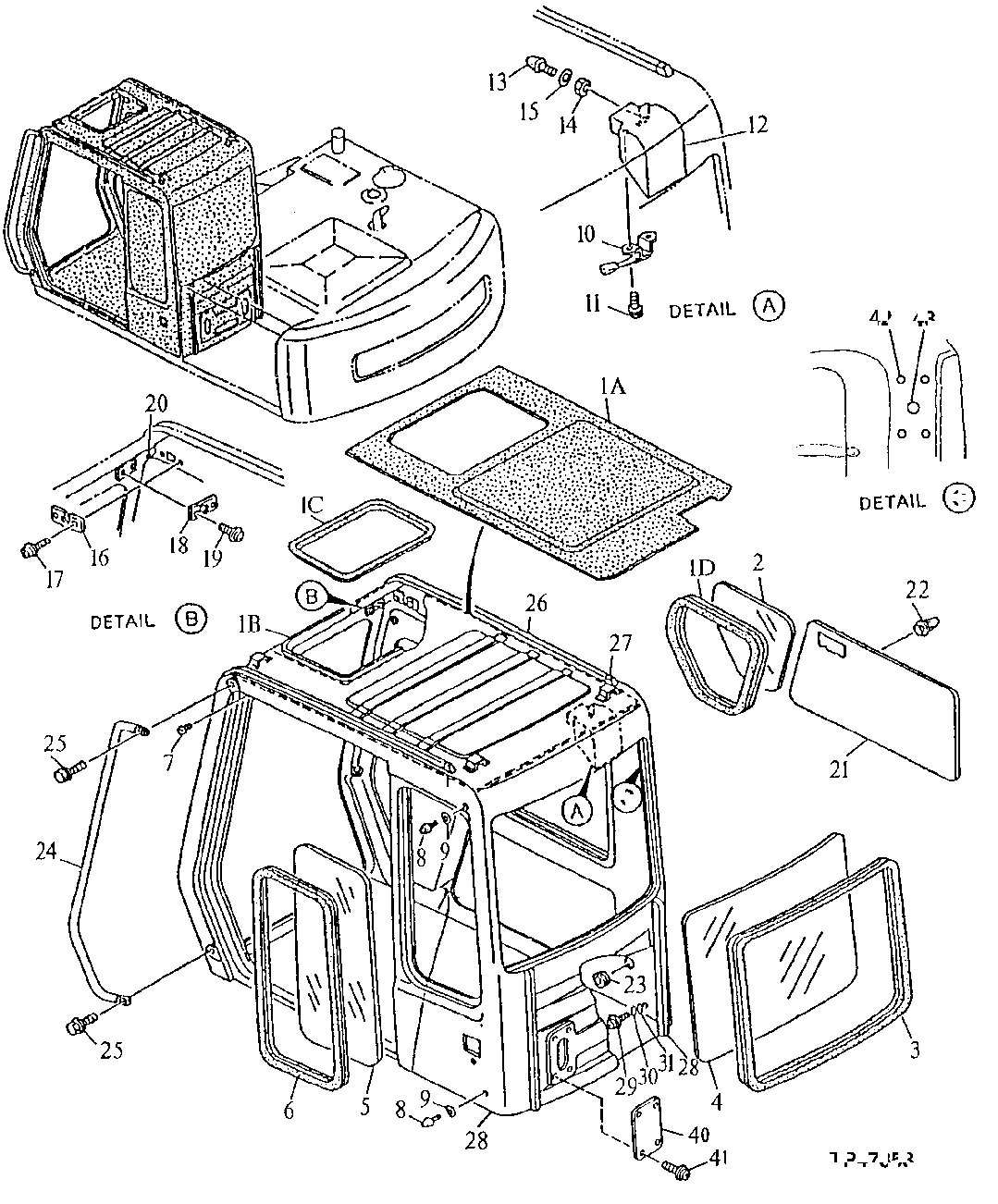

Запчасти John Deere 90E 110 - Cab 1810 Operator Enclosure

21

Sealing Trim

( AT156976 NLA) (SUB 43 20146, ALONG W/ 4372272)

1шт.

4372271

Pad

(SUB FOR 4320146) (SUB FOR AT200579)

1шт.

22

4204607

Clip

(SUB FOR TH108690)

10шт.

23

4146559

Grommet

(SUB FOR TH108788)

1шт.

24

Handrail

(SUB AT200583) ( AT156977 NLA)

1шт.

4320151J

Handrail

(SUB FOR AT200583 OR 4320151)

1шт.

25

T116333

Bolt

M10 X 30

2шт.

19M7550

Cap Screw

M10 X 35 (SUB FOR 4320149, A LONG W/ 24H1305 AND 12M7066)

2шт.

24H1305

Washer

13/32" X 13/16" X 0.065"

2шт.

12M7066

Lock Washer

10 mm

2шт.

26

4295425

Molding

(SUB FOR AT156979)

2шт.

27

Cover

(NOT AVAILABLE FOR SERVICE)

2шт.

28

4295472

Molding

(SUB FOR AT156981)

2шт.

Molding

(NO LONGER REQUIRED)

2шт.

29

19M8425

Cap Screw

M6 X 16

1шт.

19M8425

Cap Screw

M6 X 16 (SUB FOR 4320150, A LONG W/ 24H1287 AND 12M7006)

1шт.

24H1287

Washer

9/32" X 5/8" X 0.065"

1шт.

12M7006

Lock Washer

6 mm

1шт.

30

12M7006

Lock Washer

6 mm

1шт.

31

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

40

4300089

Cover

(SUB FOR AT203636)

1шт.

41

Screw

4шт.

42

4374624

Clip

(SUB FOR AT155697, THIS APPLICATION) (SUB FOR AT177382) (FOR ELECTRIC FAN OPENINGS)

4шт.

43

4361428

Plug

(SUB FOR AT175852) (FO R ELECTRIC FAN OPENING)

1шт.
