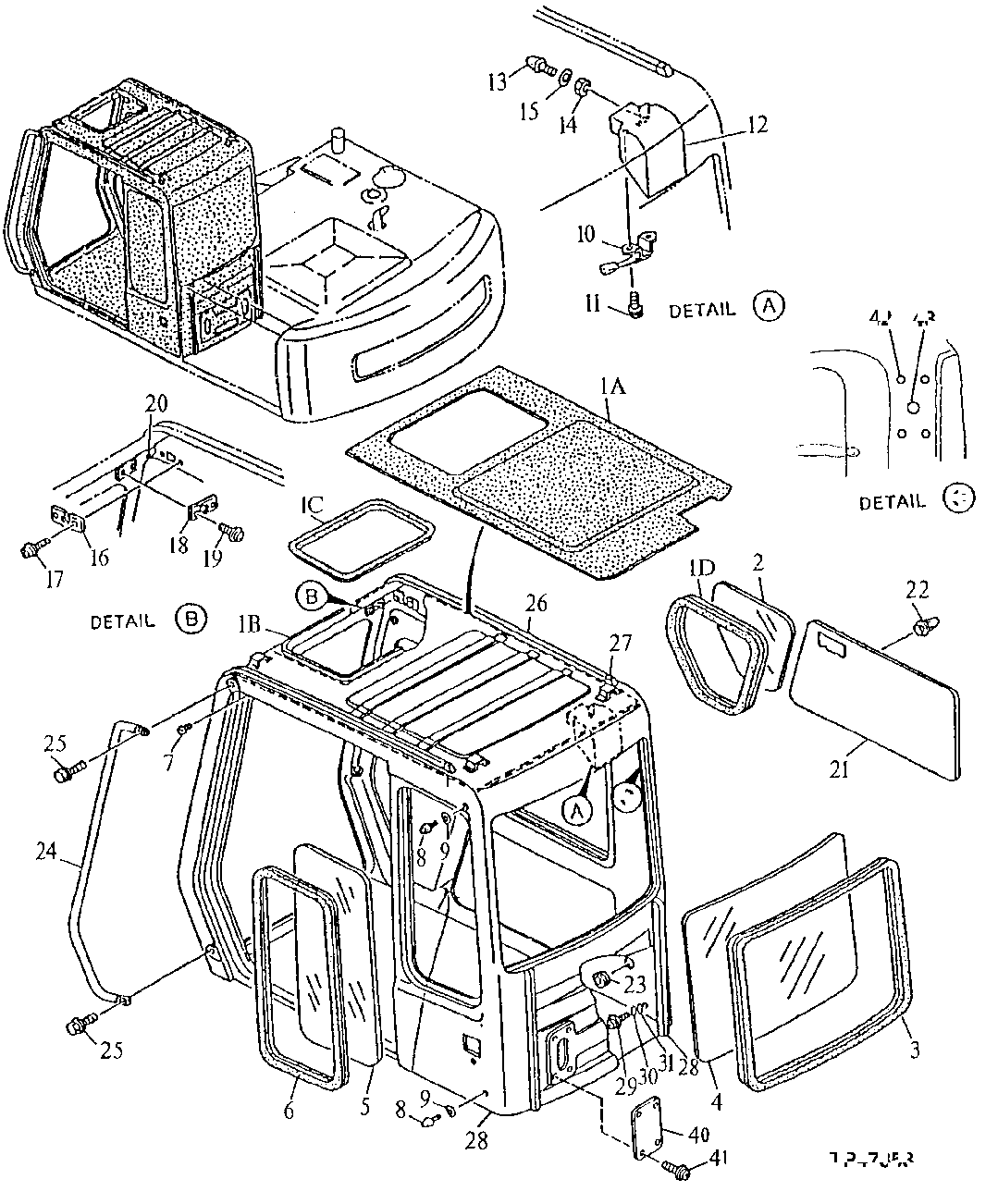

Запчасти John Deere 90E 109 - Cab 1810 Operator Enclosure

0

4282696

Cab

(SUB FOR AT154356) Not Illustrated Co ntains All Items On This Page - Additio nal Components Listed On Separate Pages

1шт.

1A

4295419

Sealing Trim

(SUB FOR AT156962)

1шт.

4320143

Pad

(SUB FOR AT162722)

1шт.

1B

4295420

Holder

(SUB FOR AT156963)

1шт.

1C

4341218

Isolator

(SUB FOR AT156964) (SUB FOR AT203635)

1шт.

4341218

Isolator

(SUB FOR AT203635)

1шт.

1D

4289528

Isolator

(SUB FOR AT154438)

1шт.

2

AT154437

Windowpane

1шт.

3

4289532

Isolator

(SUB FOR AT154442)

1шт.

4

4289531R

Windowpane

(SUB FOR AT154441 OR 4289531)

1шт.

5

AT154439

Windowpane

1шт.

6

4289530

Isolator

(SUB FOR AT154440)

1шт.

7

4172321

Bumper

(SUB FOR TH108666)

1шт.

8

4304827

Bumper

(SUB FOR AT156970)

2шт.

9

4204587

Washer

11 X 35 X 4.500 mm (0.433" X 1.3 78" X 0.177") (SUB FOR TH108669)

2шт.

10

4320144

Lock

(SUB FOR AT156971)

1шт.

11

19M7881

Screw

M8 X 20

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

19M7932

Cap Screw

M8 X 16

2шт.

12

4295857

Cover

(SUB FOR AT156972)

1шт.

Cover

(NO LONGER REQUIRED)

1шт.

13

4204586

Bumper

(SUB FOR TH108668)

1шт.

14

14M7274

Nut

M10

1шт.

15

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

16

4204599

Shim

(SUB FOR TH108682)

1шт.

17

Screw With Washer

(SUB FOR AT156973) ( J460410 NLA)

2шт.

21M7396

Screw

M4 X 10

2шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

2шт.

12H315

Lock Washer

0.164"

2шт.

18

4204600

Bracket

(SUB FOR TH108683)

1шт.

19

Screw

(SUB FOR AT156974) ( J460310 NLA)

2шт.

21M7394

Screw

M3 X 10

1шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

1шт.

12H233

Lock Washer

1/8"

1шт.

20

4295422

Clip

(SUB FOR AT156975)

1шт.
