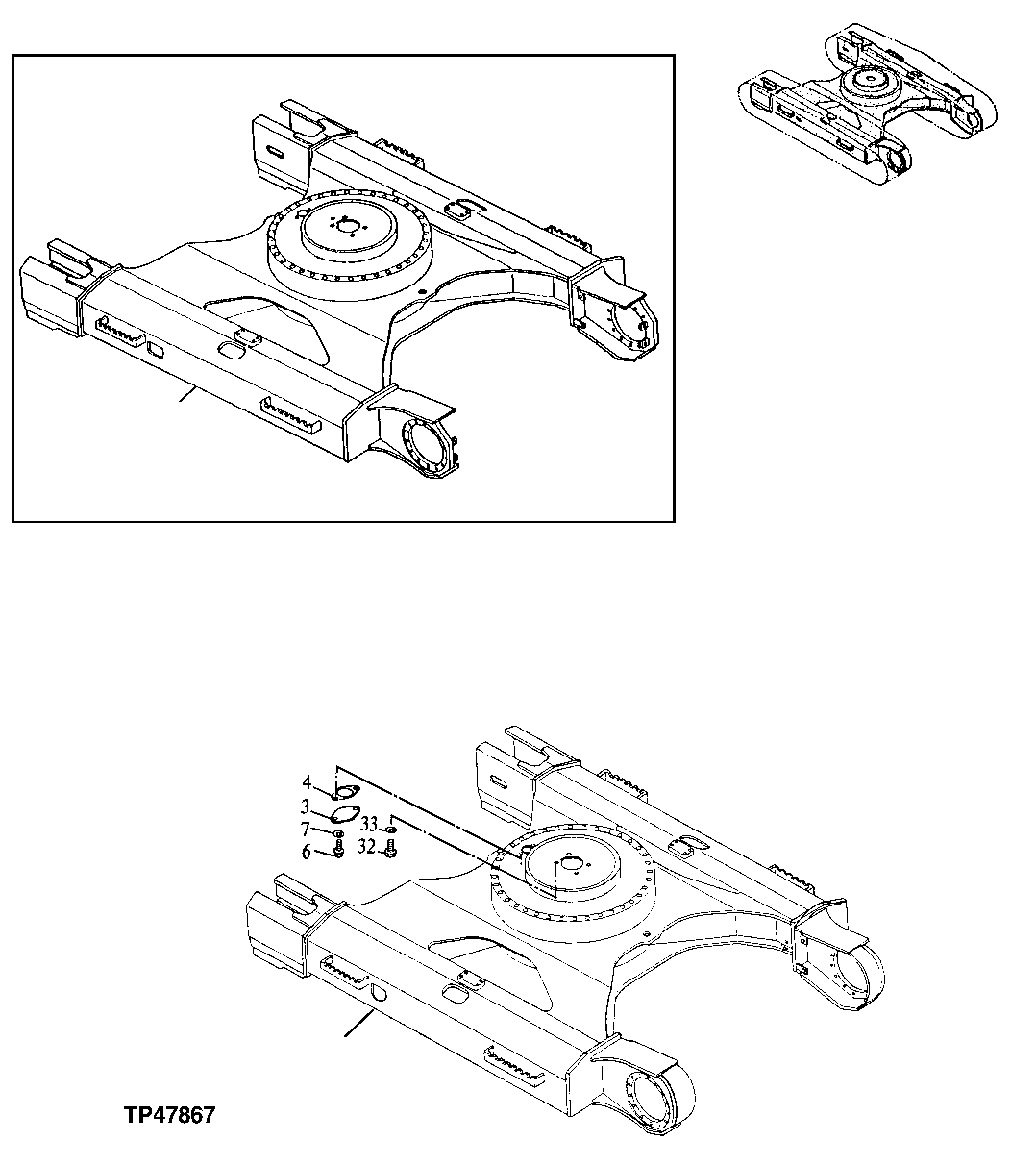

Запчасти John Deere 90E 103 - Track Frame 1740 Frame Installation

1A

Frame

( AT154450 NLA)

1шт.

Frame

(SUB AT176570) (ALSO ORDER (2) P60463, (2 ) AT176630, (8) 19M6332 AND (8) AT200011)

1шт.

1B

AT176570

Frame

Convenience Assembly

1шт.

3

4128863

Plate

(SUB FOR TH102264)

1шт.

4

4272297

Gasket

(SUB FOR TH110612 AND 4211149)

1шт.

6

19M7938

Cap Screw

M10 X 20

2шт.

19M7402

Cap Screw

M10 X 25

2шт.

7

12M7066

Lock Washer

10 mm

2шт.

32

19M8017

Cap Screw

M12 X 20

1шт.

Cap Screw

Not Required

1шт.

33

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

Washer

Not Required

1шт.
