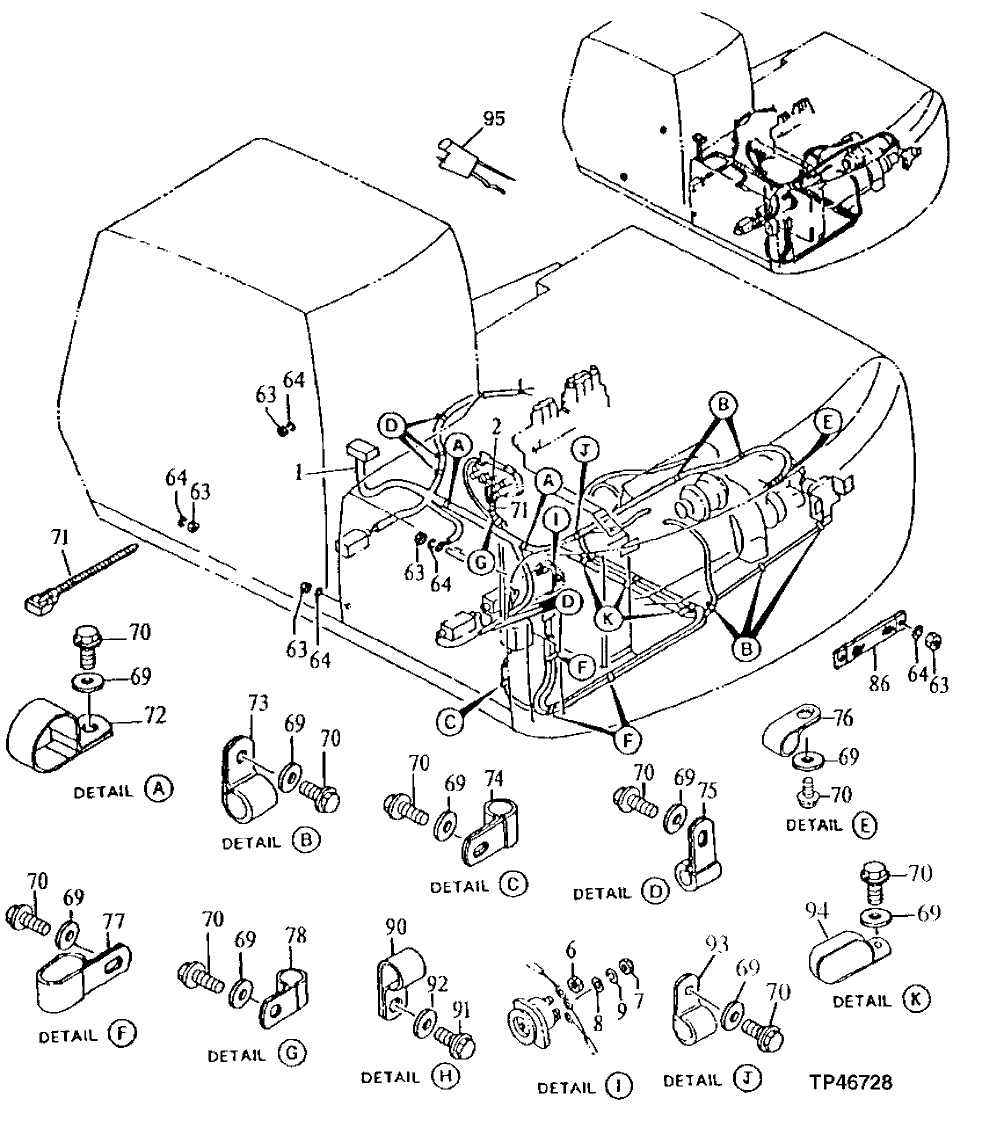

Запчасти John Deere 90E 98 - Machine Wiring Harness 1674 Wiring Harness And Switches

1

0001209

Wiring Harness

(SUB FOR AT154889)

1шт.

0001879

Wiring Harness

(SUB FOR AT202401)

1шт.

1A

4288109

Diode

(SUB FOR (12) AT174465) (COMPONENT OF WIRE HARNESS) (SEPARATE DIODES) (1-KEYS WITCH, 1-SWING STOP CUSHION SOLENOID, 1 -GRIP SOLENOID, 1-FUEL SHUTOFF SOLENOID , 1-OPTIONAL EQUIPMENT) Not Illustrate d

5шт.

4374532

Diode

(SUB FOR AT179476) (COMPONENT OF WIRE HAR NESS) (PLASTIC ONNECTOR CONTAINS 5 DIODES) (1-KEYSWITCH, 1-SWING STOP CUSHION SOLENO ID, 1-GRIP SOLENOID, 1-FUEL SHUTOFF SOLENO ID, 1-OPTIONAL EQUIPMENT) Not Illustrated

1шт.

2

4312250

Hold-Down Clip

(SET OF TEN) (SUB FOR AT158011) (WI RE AND CONNECTOR TO SOLENOID VALVE)

1шт.

3

4448296

Wiring Harness

(SUB FOR AT155617) (FROM MAIN WIRE HARNESS TO STARTER RELAY ) Not Illustrated On This Pag e

1шт.

6

4045245

Nut

(SUB FOR AT131399)

1шт.

7

14M7297

Nut

M5

2шт.

8

24M7027

Washer

5.300 X 10 X 1 mm

2шт.

9

12M7064

Lock Washer

5 mm

2шт.

63

14M7274

Nut

M10

5шт.

64

12M7066

Lock Washer

10 mm

5шт.

69

12M7066

Lock Washer

10 mm

23шт.

70

19M7938

Cap Screw

M10 X 20

23шт.

71

H77698

Tie Band

(SUB FOR M88199)

ARшт.

72

AT121321

Hose Clamp

2шт.

73

T28949

Clamp

(SUB FOR TH108458 OR 4190274)

5шт.

74

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

1шт.

75

4190275

Clamp

(SUB FOR TH108598)

6шт.

76

4192304

Screw

(SUB FOR AT154918)

1шт.

77

T32854

Clamp

3шт.

78

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

1шт.

86

AT47069

Ground Cable

406.400 mm (16") Ground Strap

1шт.

90

4000860

Clamp

(SUB FOR AT154911)

1шт.

91

19M8425

Cap Screw

M6 X 16

1шт.

92

12M7006

Lock Washer

6 mm

1шт.

93

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

1шт.

94

4190266

Clip

(SUB FOR TH108793)

3шт.

95

AT172578

Wiring Harness

Diode Used To Protect Against Voltage Spikes

1шт.
