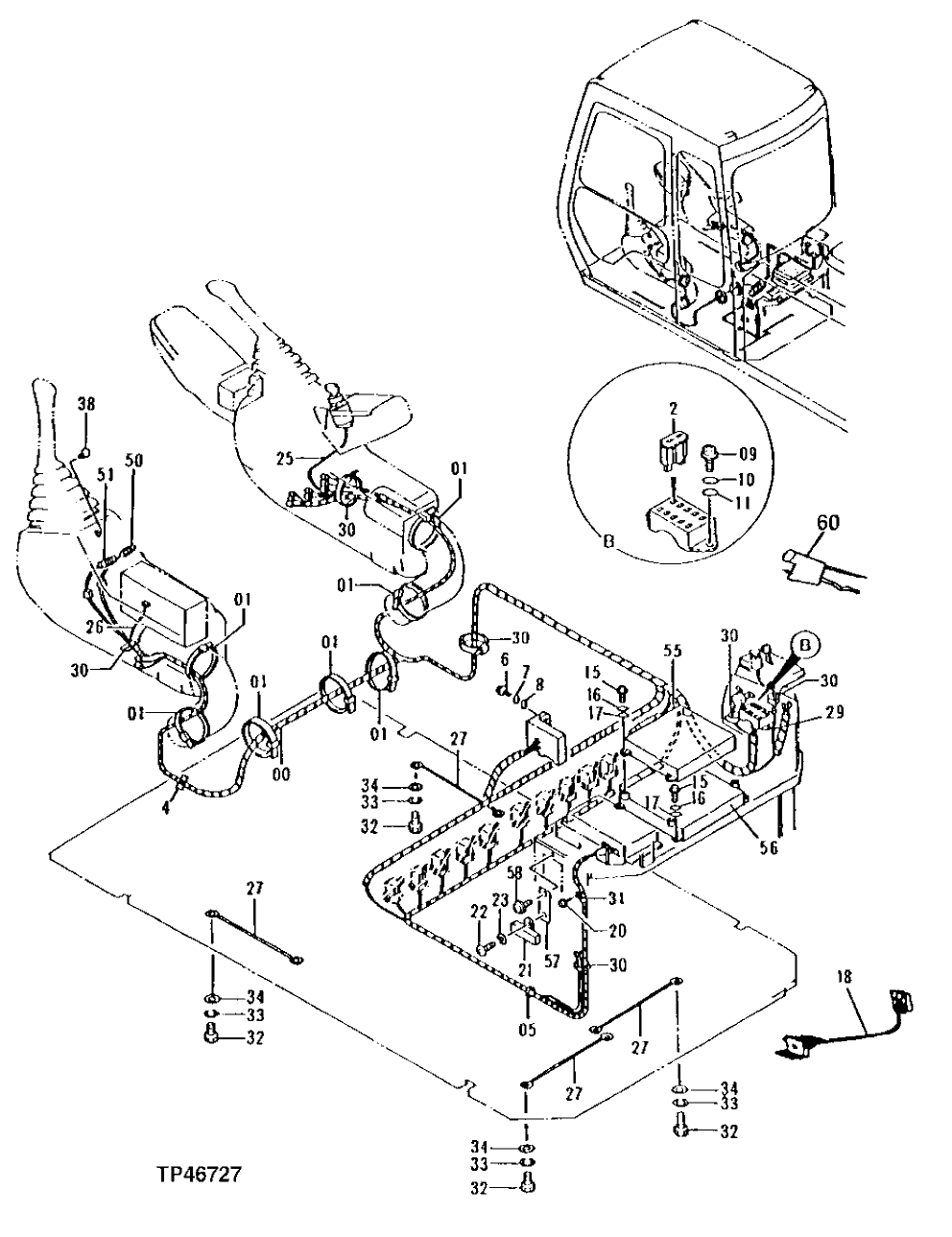

Запчасти John Deere 90E 95 - Cab Wiring Harness Mounting 1674 Wiring Harness And Switches

0

0001208

Wiring Harness

(SUB FOR AT154888)

1шт.

4192489

Diode

(SUB FOR TH110500) Not Illustrated

3шт.

0001878

Wiring Harness

(SUB FOR AT202400)

1шт.

1

H77698

Tie Band

7шт.

2

57M7329

Fuse

1A , (RADIO, PUMP VALVE CONTROL, VA LVE CONTROL UNIT MEMORY, ENGINE CONT ROL UNIT, SWITCH PANEL MEMORY) Blac k

5шт.

57M7329

Fuse

1A , Black

6шт.

57M7125

Fuse

5A, (ENGINE CONTROL UNIT MOTOR, P OWER ENGINE CONTROL UNIT, WINDSHIEL D WIPER-WASHER, TRAVEL ALARM, DONE LIGHT, (2) PUMP VALVE CONTROL) Tan

7шт.

57M7125

Fuse

5A , Tan

8шт.

57M7121

Fuse

10A , (POWER SWITCH PANEL, HORN, LIGHTER, SPARE) Red

4шт.

57M7121

Fuse

10A , Red

3шт.

57M7120

Fuse

20A , (START AID, HEATER B LOWER, WORK LIGHTS) Yellow

3шт.

57M7120

Fuse

20A , Yellow

2шт.

4

4190275

Clamp

(SUB FOR TH108598)

1шт.

5

4254600

Clip

(SUB FOR AT154928)

1шт.

6

19M8425

Cap Screw

M6 X 16

2шт.

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

7

12M7006

Lock Washer

6 mm

2шт.

8

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

9

19M7077

Cap Screw

M6 X 20

2шт.

10

12M7006

Lock Washer

6 mm

2шт.

11

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

15

19M8425

Cap Screw

M6 X 16

8шт.

16

12M7006

Lock Washer

6 mm

8шт.

17

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

18

2035206

Wiring Harness

(SUB FOR AT158373) (9ft. E XTENSION) To Cab Connector

1шт.

2036643

Wiring Harness

(SUB FOR AT161804) (15ft. E XTENSION) To Cab Connector

1шт.

20

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

21

4191772

Resistor

(SUB FOR AT155250) (EXITATION)

1шт.

22

4204811

Screw

(SUB FOR AT155253)

1шт.

23

Washer

1шт.

25

4277927

Wiring Harness

(SUB FOR AT154955) Starter Switch

1шт.

26

4277941

Wiring Harness

(SUB FOR AT154956) Radio

1шт.

27

Wiring Harness

(NLA)

4шт.

29

4284198

Wiring Harness

(SUB FOR AT155341)

1шт.

30

H77698

Tie Band

6шт.

31

4000859

Clip

(SUB FOR AT154910)

1шт.

32

19M8324

Cap Screw

M10 X 16

4шт.

33

12M7066

Lock Washer

10 mm

4шт.

34

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

38

4344989

Clip

(SUB FOR AT203632)

1шт.

50

4322387

Switch

(MOTION ALARM) (SUB FOR AT 154976) (SUB FOR AT161978)

1шт.

51

4322389

Switch

Starting Aid (SUB FOR AT1 54975) (SUB FOR AT161977)

1шт.

55

9109825

Control

(SUB FOR AT158401) Engine Control

1шт.

56

9116790

Control

(SUB FOR AT158400) (PUMP VALVE CONTROL)

1шт.

Pump/Valve Controller

( 9138117 NLA), (SUB FOR AT 203633) (PUMP VALVE CONTROL)

1шт.

57

4316851

Plate

(SUB FOR AT202450)

1шт.

58

21M7246

Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7105

Washer

6 X 12 X 1.600 mm

1шт.

60

AT172578

Wiring Harness

Diode (USED TO PROTECT AGAINST VOLTAGE SPIKES)

1шт.
