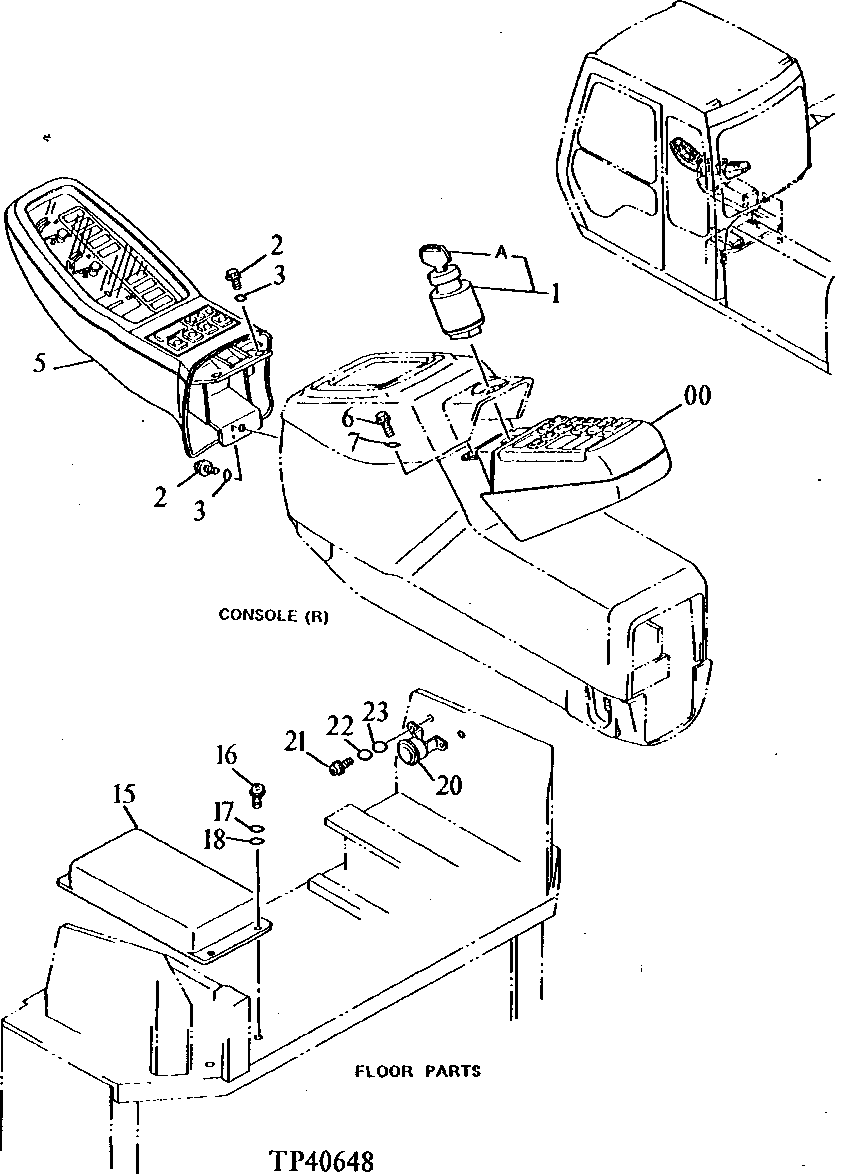

Запчасти John Deere 90E 92 - Console 1674 Wiring Harness And Switches

0

4323698

Box

(SUB FOR AT154923) (SUB FOR AT202325)

1шт.

1

4477373

Switch

(SUB FOR AT154992 AND TH 4469337) Ignition Switch

1шт.

1A

AT194969

Key

(SUB FOR AT147803) Set Of Two

1шт.

2

19M7932

Cap Screw

M8 X 16

3шт.

3

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

5

4282697

Gauge

(SUB FOR AT154965)

1шт.

6

19M7932

Cap Screw

M8 X 16

3шт.

7

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

15

Control

(SUB AT169088) ( AT154919 NLA)

1шт.

4688258

Control

(SUB FOR AT169088)

1шт.

16

J900614

Bolt

(SUB FOR TH104056)

4шт.

17

12M7006

Lock Washer

6 mm

4шт.

18

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

20

4258403

Audible Warning Alarm

(SUB FOR AT154934)

1шт.

21

19M7372

Cap Screw

M5 X 16

2шт.

22

12M7064

Lock Washer

5 mm

2шт.

23

24M7348

Washer

5.500 X 10 X 1 mm

2шт.
