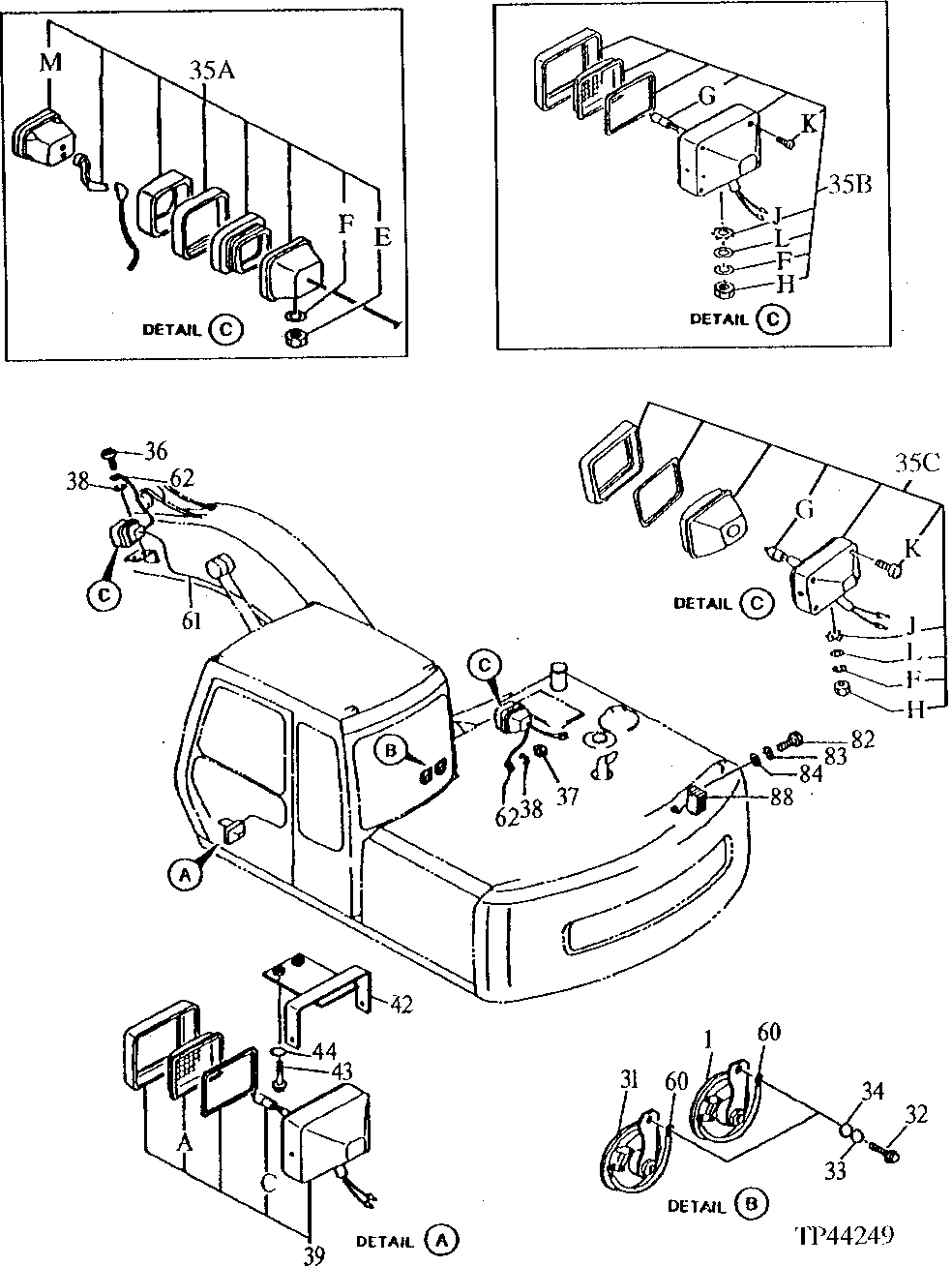

Запчасти John Deere 90E 90 - Work Lights ( - 025811) 1674 Wiring Harness And Switches

1

AT64237

Horn

(HI)

1шт.

31

AT64237

Horn

Low

1шт.

32

19M7407

Cap Screw

M8 X 25

2шт.

33

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

34

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

35A

4326800

Lamp

(HEADLIGHT) ( TH102149 NLA)

2шт.

35B

4326800

Lamp

( AT159146 NLA)

2шт.

35C

AT165110

Lamp

(SUB FOR AT176424)

2шт.

35E

14M7502

Nut

M14 (SUB FOR 14M7150)

1шт.

35F

12H317

Lock Washer

9/16"

1шт.

35G

AT135758

Bulb

(SUB FOR AT159149) (USE IF AVAILABLE)

1шт.

AT135758

Bulb

(SUB FOR AT159149 OR AT154990)

1шт.

35H

14M7345

Nut

M14 (SUB FOR J952014) (SUB FOR TH103791)

1шт.

35J

4307026

Washer

(SUB FOR T144361)

1шт.

35K

37H19

Screw

(SUB FOR T144362 OR 4307027)

1шт.

35L

24M7085

Washer

15 X 28 X 2.500 mm

1шт.

35M

AT165110

Lamp

(SUB FOR TH102150, 4163596)

1шт.

36

21M7285

Screw

M6 X 12

1шт.

37

14M7272

Nut

M6

1шт.

38

12M7006

Lock Washer

6 mm

2шт.

39

4274478

Headlight

(SUB FOR AT154323) Headlight

1шт.

39A

4285646

Lens

(SUB FOR AT154988)

1шт.

39C

AT135758

Bulb

(SUB FOR AT154990)

1шт.

42

8051250

Bracket

(SUB FOR AT154506)

1шт.

8061439

Bracket

(SUB FOR AT203634)

1шт.

43

19M7402

Cap Screw

M10 X 25

2шт.

44

12M7066

Lock Washer

10 mm

2шт.

60

Wiring Harness

(NLA)

2шт.

61

4261622

Wiring Harness

(SUB FOR AT154283)

1шт.

62

4254604

Wiring Harness

(SUB FOR AT154214)

2шт.

82

19M8456

Cap Screw

M8 X 100

2шт.

83

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

84

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

88

AT301074

Alarm System

(SUB FOR AT154966, 4283028)

1шт.
