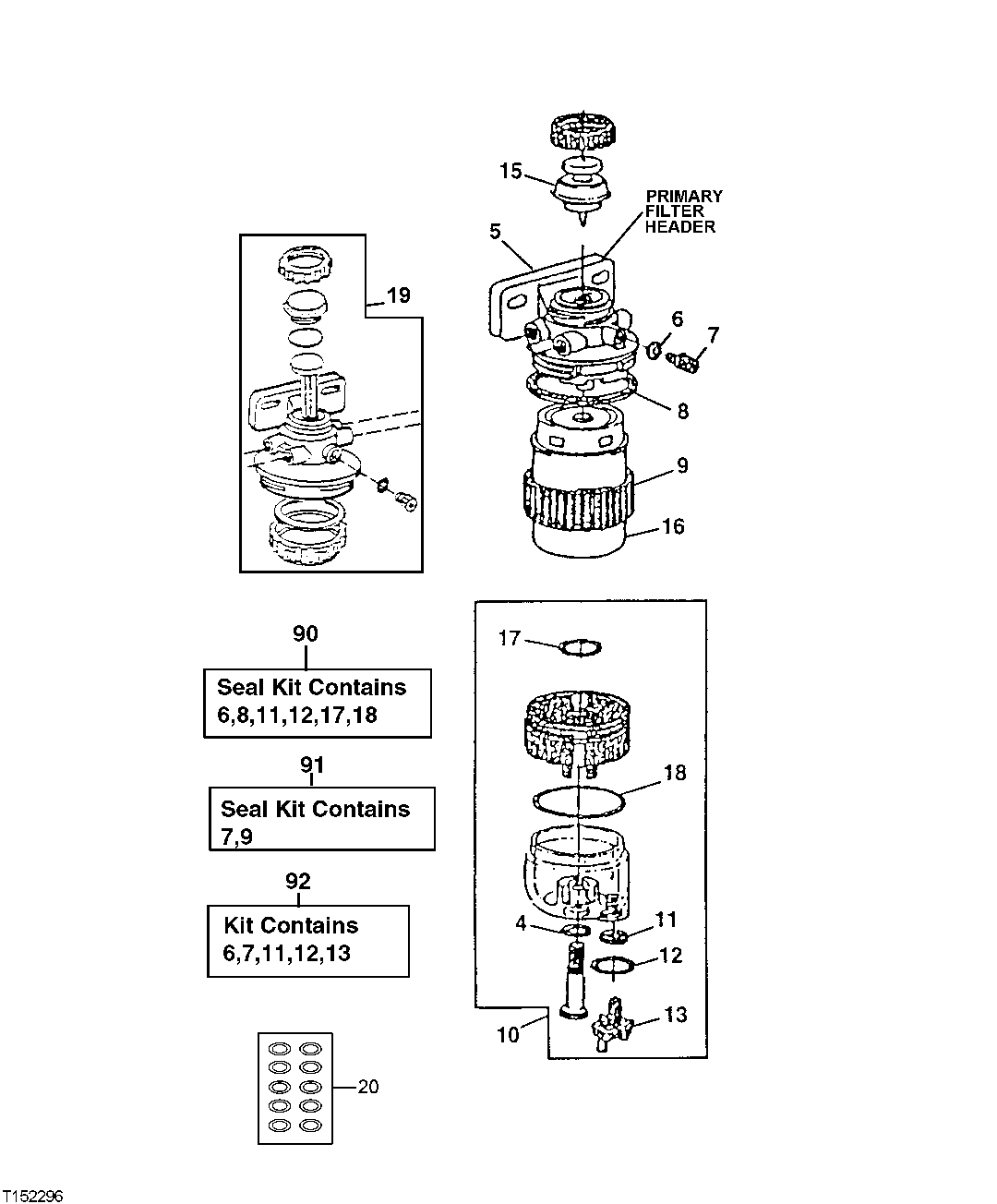

Запчасти John Deere 90E 77 - Fuel/ Water Separator (025000 - ) 0560 External Fuel Supply Systems

4

O-Ring

1шт.

5

RE63183

Filter Head

(NLA) (SUB RE500161) (ALSO ORDER (2) R65 684, (2) R82719 AND (4) R26286) Primary

1шт.

6

R113562

O-Ring

(K1) (K3)

1шт.

7

R113563

Drain Plug

(K2) (K3)

1шт.

8

R113565

O-Ring

(K1)

1шт.

9

Ring

(K2)

1шт.

10

RE51650

Sediment Bowl

1шт.

11

Seal

(K1) (K3)

1шт.

12

O-Ring

(K1) (K3)

1шт.

13

RE60854

Drain Valve

(SUB FOR RE57841) (K3)

1шт.

15

RE50467

Hand Primer

1шт.

R113562

O-Ring

Not Illustrated

1шт.

16

RE62424

Fuel Filter

(SUB FOR RE53729) (INCLU DES) Drain Valve Primary

1шт.

17

O-Ring

(K1)

1шт.

18

O-Ring

(K1)

1шт.

19

RE500161

Filter Kit

Primary Filter (WHEN REPLACING RE63183, ALSO ORDER (2) R65684, (2) R82719 AND (4) R26286)

1шт.

20

RE516513

Pump Repair Kit

(W/ HAND PRIMER) (CONTAINS 10 O-RINGS)

1шт.

RE516512

O-Ring Kit

(W/O HAND PRIMER) (CONTAINS 10 O-RINGS)

1шт.

90

RE516553

Seal Kit

(INCLUDES ALL (K1) PARTS) (SUB FOR RE50752)

1шт.

91

RE51649

Seal Kit

(INCLUDES ALL (K2) PARTS) Mechanical

1шт.

92

RE60854

Valve Kit

(INCLUDES ALL (K3) PARTS) ( BLEED PLUG AND ) Drain Valve

1шт.
