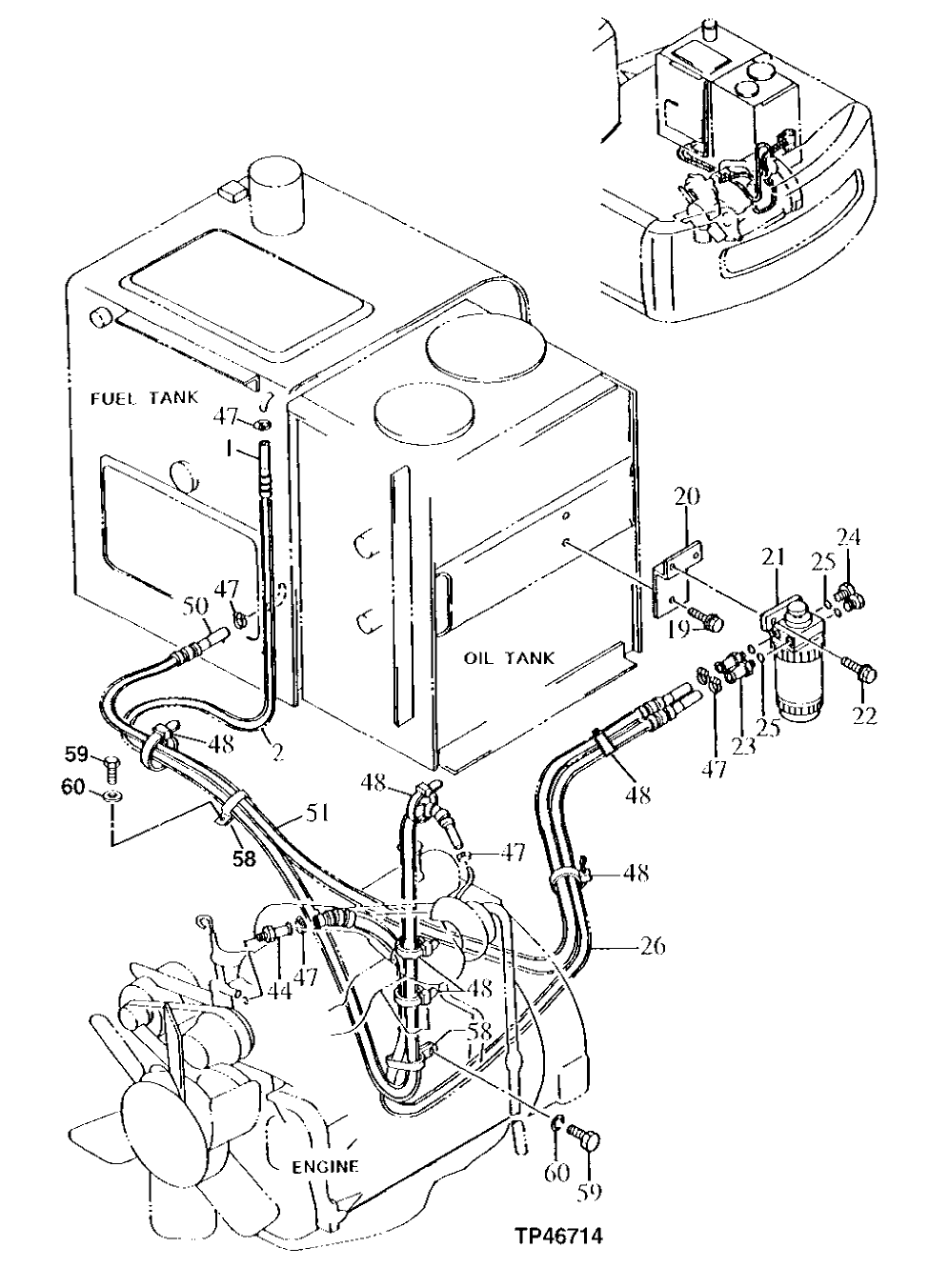

Запчасти John Deere 90E 76 - Fuel Lines (025000 - ) 0560 External Fuel Supply Systems

1

Hose

(CTL FROM M87571 BULK MATERIAL)

1шт.

2

Conduit

(CTL FROM T83427 BULK MATERIAL)

1шт.

19

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

20

Bracket

(NOT AVAILABLE FOR SERVICE)

1шт.

21

Separator

Water

1шт.

22

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

23

R65684

Fitting

2шт.

24

R27094

Drain Plug

2шт.

25

R26286

O-Ring

10.516 X 1.829 mm (0.414" X 0.072")

4шт.

26

Hose

(CTL FROM BULK MATERIAL)

1шт.

44

R67293

Fitting

(SUB FOR TH100897)

1шт.

47

TY22464

Clamp

(SUB FOR AT145649) (SUB FOR AR21836)

6шт.

48

H77698

Tie Band

6шт.

50

Hose

(CTL FROM M87571 BULK MATERIAL)

1шт.

51

Conduit

(CTL FROM T83427 BULK MATERIAL)

1шт.

58

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

2шт.

59

19M7938

Cap Screw

M10 X 20

2шт.

60

12M7066

Lock Washer

10 mm

2шт.
