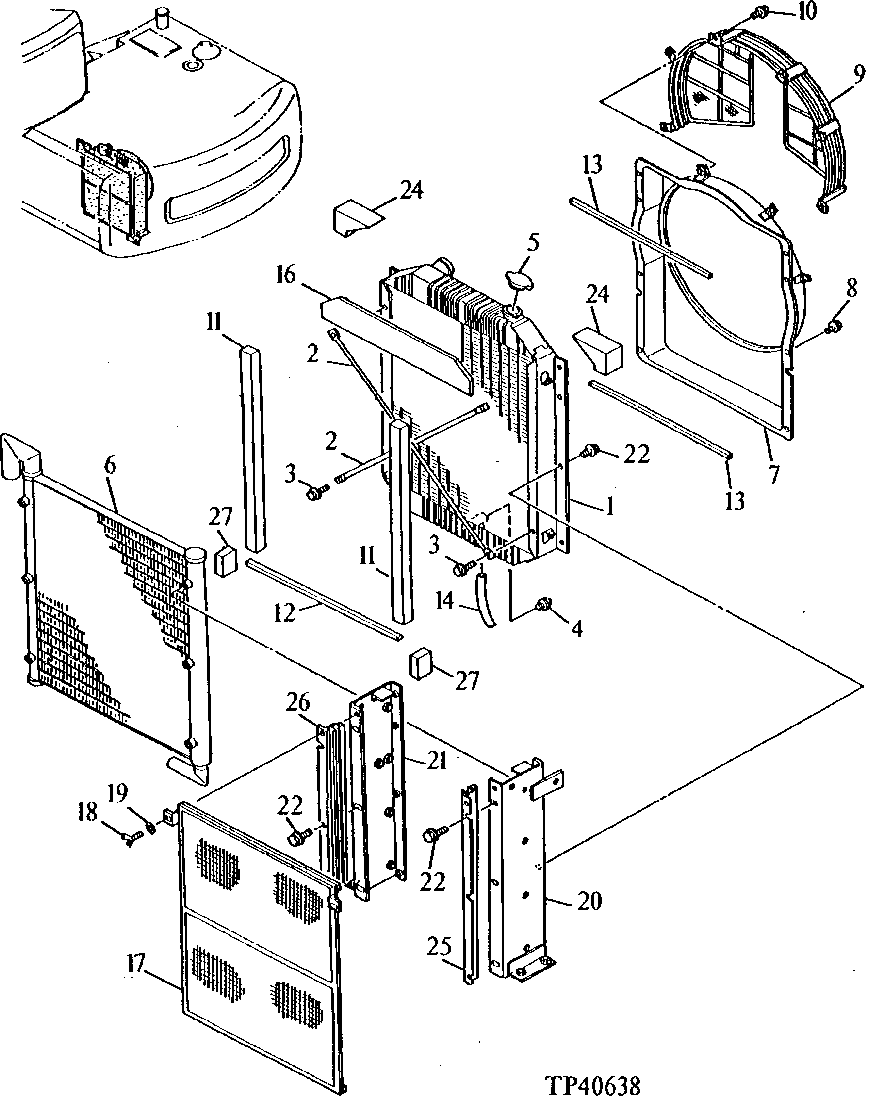

Запчасти John Deere 90E 66 - Radiator 0510 Engine Cooling Systems

1

4292947

Radiator

(SUB FOR AT155008)

1шт.

2

4206676

Rod

(SUB FOR TH108222)

2шт.

3

Screw With Washer

(SUB FOR TH108223) ( 4206679 NLA)

4шт.

19M7560

Cap Screw

M6 X 16

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

4

4148705

Drain Plug

(SUB FOR TH109425)

1шт.

5

AT169085

Filler Cap

(SUB FOR AT155009) (USE IF AVAILABLE)

1шт.

AT169085

Filler Cap

(SUB FOR AT155009)

1шт.

6

4285627

Oil Cooler

(SUB FOR AT154977)

1шт.

7

4292958

Guide

(SUB FOR AT155012)

1шт.

8

4285639

Bolt

(SUB FOR AT154985)

8шт.

9

4292960

Guard

(SUB FOR AT155013) Fan

1шт.

10

19M7932

Cap Screw

M8 X 16 (SUB FOR TH108229, 4 206128, AT202245 OR 4331649)

3шт.

12M7065

Lock Washer

8 mm

3шт.

11

4285637

Packing

(SUB FOR AT154984)

2шт.

12

4285635

Packing

(SUB FOR AT154982)

1шт.

13

4285636

Packing

(SUB FOR AT154983)

2шт.

14

Hose

(MAKE FROM 1/2in. ID VINYL TUBING CTL)

1шт.

16

4292968

Packing

(SUB FOR AT155014)

1шт.

17

4285628

Screen

(SUB FOR AT154978)

1шт.

18

21M1689

Wing Screw

M6 X 12

2шт.

19

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

20

4292953

Bracket

(SUB FOR AT155010)

1шт.

21

4292954

Bracket

(SUB FOR AT155011)

1шт.

22

4285640

Bolt

(SUB FOR AT154986)

14шт.

24

4285634

Packing

(SUB FOR AT154981)

2шт.

25

4296419

Bracket

(SUB FOR AT154979)

1шт.

26

4296420

Bracket

(SUB FOR AT154980)

1шт.

27

4292971

Packing

(SUB FOR AT155015)

2шт.
