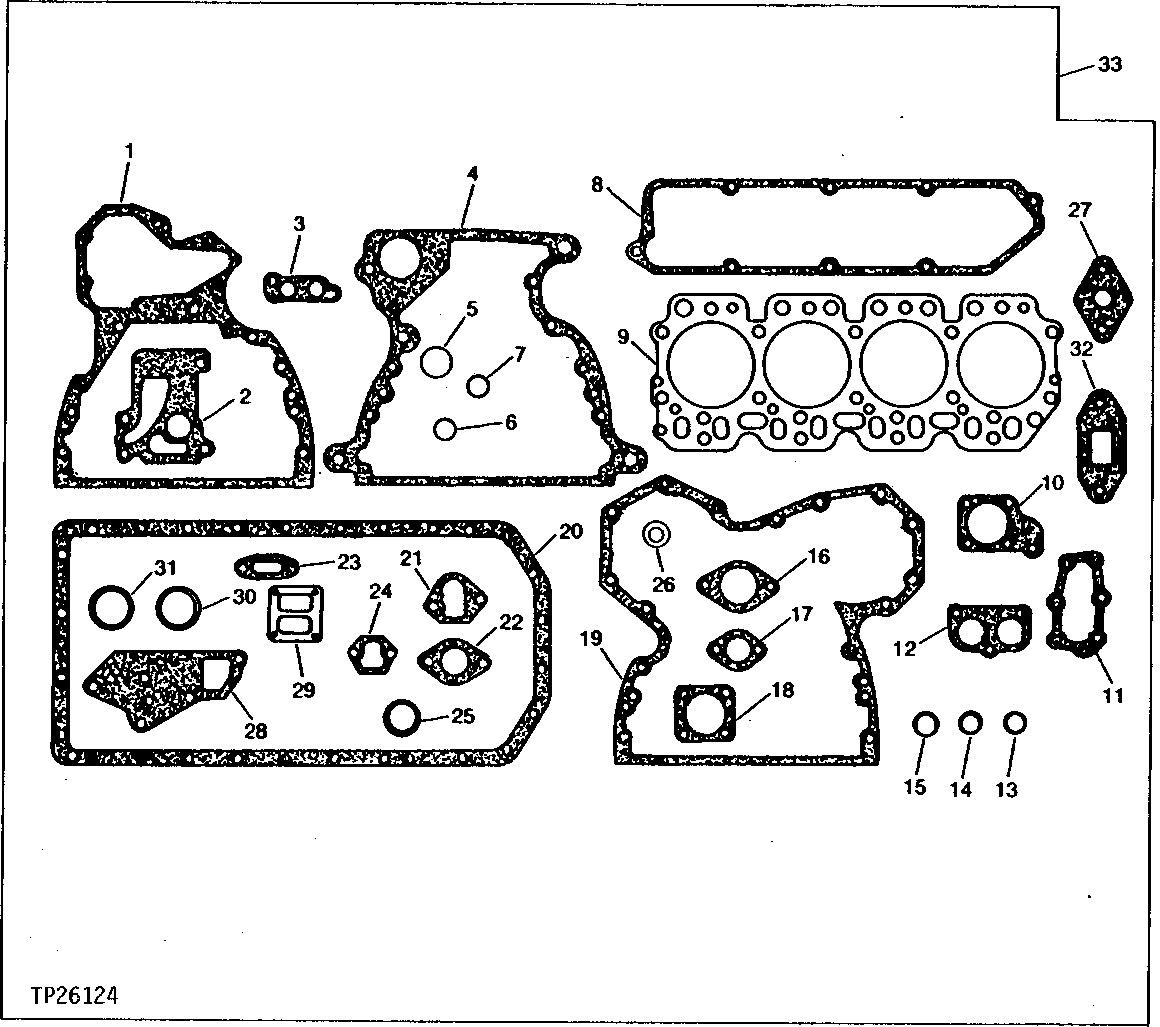

Запчасти John Deere 90E 62 - Engine Overhaul Kit, Gasket Kit 0452 Gasket Replacement Kits 4045TT009 4045TT009

1

R131794

Gasket

(CYLINDER BLOCK PLATE) (SUB FOR R90648)

1шт.

2

R98489

Gasket

(OIL COOLER)

1шт.

3

R98488

Gasket

(OIL FILTER ADAPTER)

1шт.

4

R97351

Gasket

(FLYWHEEL HOUSING)

1шт.

5

T20328

Gasket

(OIL FILLER CAP)

1шт.

6

R56463

O-Ring

(VENT TUBE)

1шт.

7

T13213

Washer

(OIL DRAIN PLUG)

1шт.

8

R73521

Gasket

(ROCKER ARM COVER)

1шт.

9

R125863

Gasket

(SUB FOR R92425) Cylinder Head

1шт.

10

R98487

Gasket

(LOWER OIL COOLER COVER)

1шт.

11

T20273

Gasket

(TIMING GEAR COVER OPENING COVER)

1шт.

12

R501373

Gasket

(SUB FOR R54638) DUAL THERMOSTAT COVER

1шт.

13

R56461

O-Ring

Bypass

2шт.

14

R80632

O-Ring

(OIL PUMP TUBE)

2шт.

15

R61871

O-Ring

(OIL PUMP INTAKE)

1шт.

16

R98486

Gasket

(OIL COOLER)

2шт.

17

T20219

Gasket

Thermostat Housing

1шт.

18

R81275

Gasket

Air Inlet

1шт.

19

R126513

Gasket

Timing Gear Cover (SUB FOR R97454, R119269 OR R121314)

1шт.

20

R97342

Gasket

Oil Pan

1шт.

21

R125066

Gasket

(TIMING GEAR COVER OPENIN G COVER) (SUB FOR R97773)

1шт.

22

R90658

Gasket

(EXHAUST MANIFOLD)

4шт.

23

R97352

Gasket

Oil Filler Inlet

1шт.

24

R520618

Gasket

Fuel Pump (SUB FOR R97350)

1шт.

25

U13639

O-Ring

(COOLANT HEATER PLUG)

1шт.

26

R87627

O-Ring

(VALVE STEM SEALS)

8шт.

27

R97348

Gasket

(TURBOCHARGER INLET)

1шт.

28

T20243

Gasket

(WATER PUMP COVER)

1шт.

29

R92097

Gasket

(TURBOCHARGER)

1шт.

30

R56814

O-Ring

(OIL COOLER) Inner

1шт.

31

R56815

O-Ring

(OIL COOLER) Outer

1шт.

32

R105346

Gasket

(TURBOCHARGER OUTLET)

1шт.

33

RE501568

Gasket Kit

(SUB FOR RE37715)

1шт.
