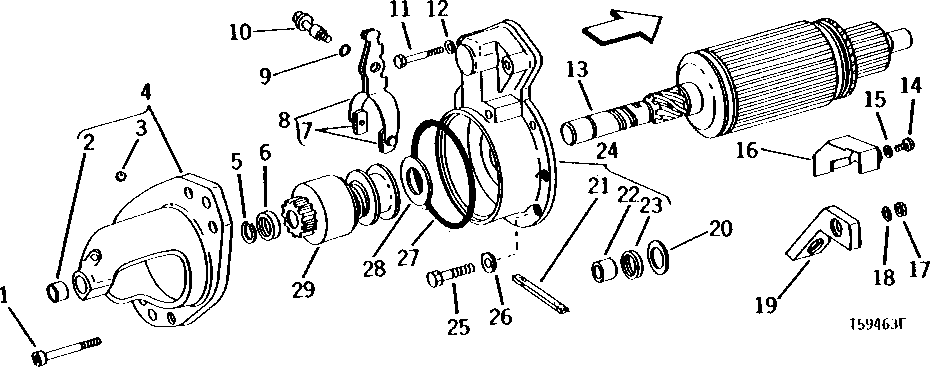

Запчасти John Deere 90D 2 - STARTING MOTOR DRIVE MOTOR AND ARMATURE 422 - ENGINE 4

1

R65700

SCREW

6шт.

2

R50891

BUSHING

1шт.

3

R50892

PLUG

1шт.

4

RE16047

STARTER MOTOR

HOUSING

1шт.

5

R50902

SNAP RING

1шт.

6

R65701

LOCKING COLLAR

1шт.

7

R51667

WEAR PLATE

2шт.

8

AR67827

ARM

1шт.

9

R52387

O-RING

1шт.

10

R50897

SHAFT

1шт.

11

R50893

SCREW

2шт.

12

12H302

LOCK WASHER

1/4"

2шт.

13

ARMATURE

( AR84338 NO LONGER AVAILABLE)

1шт.

14

AR55946

SCREW

1шт.

15

R51662

WASHER

1шт.

16

RE39064

SHIELD

1шт.

17

14H971

NUT

1/2"

1шт.

18

R50899

LOCK WASHER

1шт.

19

R50910

ELECTRICAL CONNECTOR ASSY

1шт.

20

R50906

THRUST WASHER

1шт.

21

R51666

WICK

FELT, OIL

1шт.

22

R51665

BUSHING

CENTER HOUSING

1шт.

23

AR55947

SEAL

1шт.

24

AR68731

HOUSING

CENTER BEARING

1шт.

25

R51661

SCREW

2шт.

26

12H302

LOCK WASHER

1/4"

2шт.

27

R50901

WASHER

1шт.

28

R50905

WEAR RING

1шт.

29

AR84337

DRIVE

1шт.

30

RE15718

STARTER MOTOR

(NOT ILLUSTRATED) (COMPLETE ASSEMBLY NOT SHOWN ON THIS PAGE) (USE IF AVAILABLE)

1шт.

RE65173

KIT

(SUB FOR RE15718, RE43422) (SUB RE70961) (NOT ILLUSTRATED)

1шт.

RE70961

STARTER MOTOR KIT

1шт.
