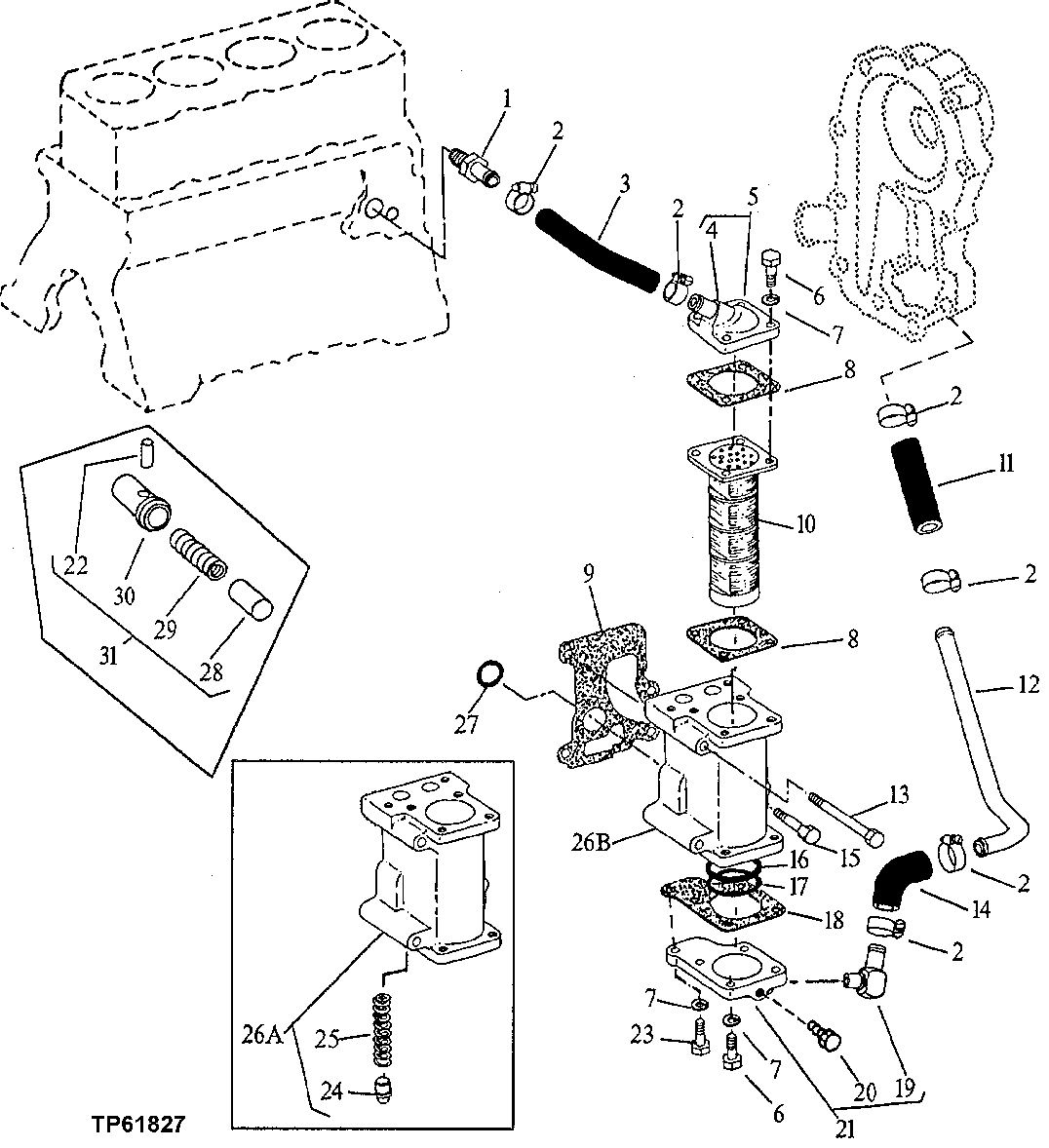

Запчасти John Deere 90D 2 - ENGINE OIL COOLER 419 - ENGINE 4

1

R39503

FITTING

1шт.

2

TY22467

CLAMP

(SUB FOR AR21839, THIS APPLICATION) (SUB FOR AT145650)

6шт.

3

R54826

HOSE

1шт.

4

R34985

LINE

1шт.

5

AR70464

COVER

(MARKED R58632)

1шт.

6

19H1849

CAP SCREW

5/16" X 1-1/4"

8шт.

19H2661

CAP SCREW

5/16" X 1-3/8"

8шт.

7

12H303

LOCK WASHER

5/16"

9шт.

8

R98486

GASKET

(SUB FOR R56020)

2шт.

9

R98489

GASKET

(SUB FOR R76243)

1шт.

10

RE31089

OIL COOLER

(SUB FOR AR65812) (ALSO ORDER (4) 19H2661 CAP SCREWS)

1шт.

11

HOSE

(MAKE FROM R57300 BULK MATERIAL, CUT TO LENGTH)

1шт.

12

R54830

TUBE

1шт.

13

19H1925

CAP SCREW

3/8" X 4-1/4"

2шт.

14

R54829

HOSE

1шт.

15

19H3065

CAP SCREW

3/8" X 2"

2шт.

16

R56814

O-RING

INNER

1шт.

17

R56815

O-RING

OUTER

1шт.

18

R98487

GASKET

(SUB FOR R54831)

1шт.

19

AR26732

ELBOW FITTING

1шт.

20

R42852

PIPE PLUG

1шт.

21

AR63356

COVER

(MARKED R54828)

1шт.

22

34H184

SPRING PIN

1/8" X 1-1/8"

1шт.

23

19H2705

CAP SCREW

5/16" X 1"

1шт.

24

VALVE SEAT

(SUB AR103165)

1шт.

25

R46625

SPRING

1шт.

26A

AR103165

HOUSING

(MARKED R76241)

1шт.

26B

R110562

HOUSING

1шт.

27

R61871

O-RING

1шт.

28

VALVE

(SUB AR63351)

1шт.

29

R46625

SPRING

1шт.

30

HOUSING

(SUB AR63351)

1шт.

31

AR63351

VALVE

1шт.
