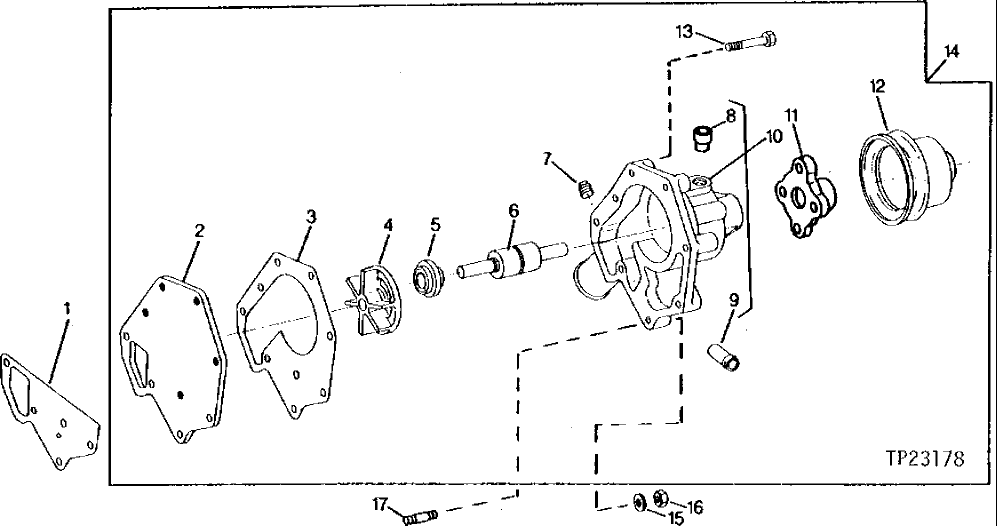

Запчасти John Deere 90D 1 - WATER PUMP ASSEMBLY 417 - ENGINE 4

1

T20243

GASKET

1шт.

2

R55759

COVER

1шт.

3

R55405

GASKET

1шт.

4

T30897

IMPELLER

(SUB FOR T30897 OR R94419)

1шт.

5

AR101549

SEAL KIT

1шт.

6

JD9257

BALL BEARING

1шт.

7

15H584

PIPE PLUG

1/2"

1шт.

8

R59050

TUBE

1шт.

9

R34985

LINE

1шт.

10

AR80109

HOUSING

(MARKED R59049)

1шт.

11

T30720

HUB

(SUB FOR R62371) (USE WITH T30721, NOT REQUIRED WITH T23628)

1шт.

12

T23628

PULLEY

(SUB FOR T30721) (ALSO ORDER (4) 19H3467)

1шт.

13

19H3385

CAP SCREW

1/2" X 1-1/8"

3шт.

19H2676

CAP SCREW

3/8" X 1", (USE WITH R62371)

4шт.

19H3475

SCREW

5/16" X 1", (USE WITH T23628)

4шт.

19H3065

CAP SCREW

3/8" X 2"

1шт.

19H1912

CAP SCREW

3/8" X 3-1/2"

2шт.

14

AR71133

WATER PUMP

(MARKED R59049)

1шт.

15

12H304

LOCK WASHER

3/8", (USE WITH R62371)

4шт.

16

14H812

NUT

3/8"

1шт.

17

T25701

STUD

1шт.
