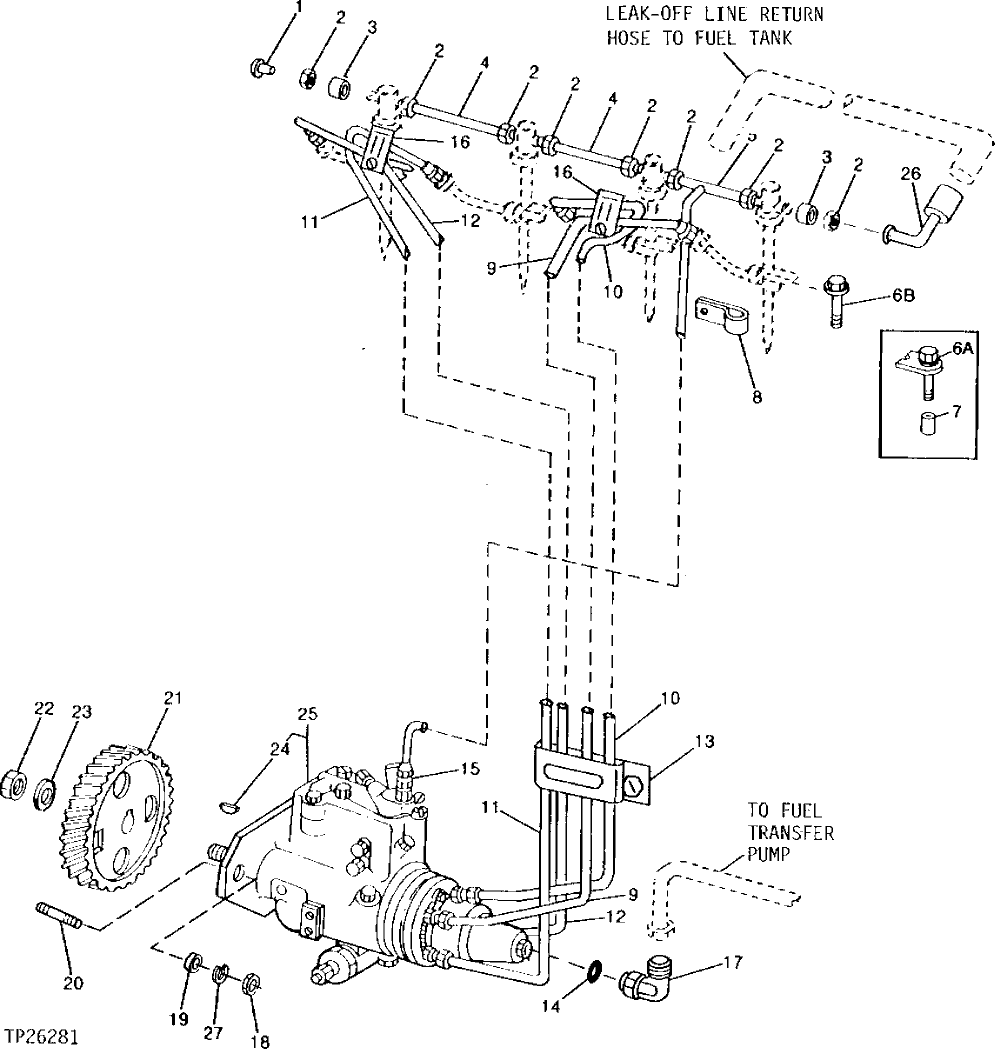

Запчасти John Deere 90D 4 - FUEL INJECTION SYSTEM 413 - ENGINE 4

1

16H658

RIVET

1/4" X 5/8"

1шт.

2

R51937

TUBE NUT

7шт.

3

R51936

SEALING WASHER

7шт.

4

R66090

TUBE

2шт.

5

AR85615

LINE

LEAK-OFF

1шт.

6A

R34760

CLAMP

4шт.

6B

R101201

CAP SCREW

1шт.

7

R60745

SPACER

(K) (SUB RE32011)

4шт.

8

T29969

CLAMP

1шт.

9

RE20992

FUEL LINE

NO. 4

1шт.

RE43292

FUEL LINE

NO. 4

1шт.

10

RE20991

FUEL LINE

NO. 3

1шт.

RE43291

FUEL LINE

NO. 3

1шт.

11

RE20990

FUEL LINE

NO. 2

1шт.

RE43290

FUEL LINE

NO. 2

1шт.

12

RE20989

FUEL LINE

NO. 1

1шт.

RE43289

FUEL LINE

NO. 1

1шт.

13

RE19799

CLAMP

1шт.

14

R26286

O-RING

1шт.

15

R35352

FITTING

1шт.

16

RE19797

CLAMP

2шт.

17

RE56322

TEE FITTING

(SUB FOR AT32333)

1шт.

18

14H785

NUT

5/16"

3шт.

19

T27860

WASHER

0.344" X 0.689" X 0.066"

3шт.

20

T23442

STUD

3шт.

21

R84663

GEAR

(48 TEETH)

1шт.

22

R48599

NUT

1шт.

23

R132874

WASHER

(SUB FOR R48600)

1шт.

24

26H10

SHAFT KEY

5/32" X 5/8"

1шт.

25

RE27407

FUEL INJECTION PUMP

(A) (STANADYNE NO. DB2435-4614)

1шт.

RE40003

FUEL INJECTION PUMP

(A)

1шт.

SE500642

FUEL INJECTION PUMP REMAN

(REMAN FOR RE27407) PKG 1

1шт.

SE500665

FUEL INJECTION PUMP REMAN

(REMAN FOR RE40003) PKG 1

1шт.

26

RE16142

FUEL LINE

LEAK-OFF

1шт.

27

12H303

LOCK WASHER

5/16"

3шт.
