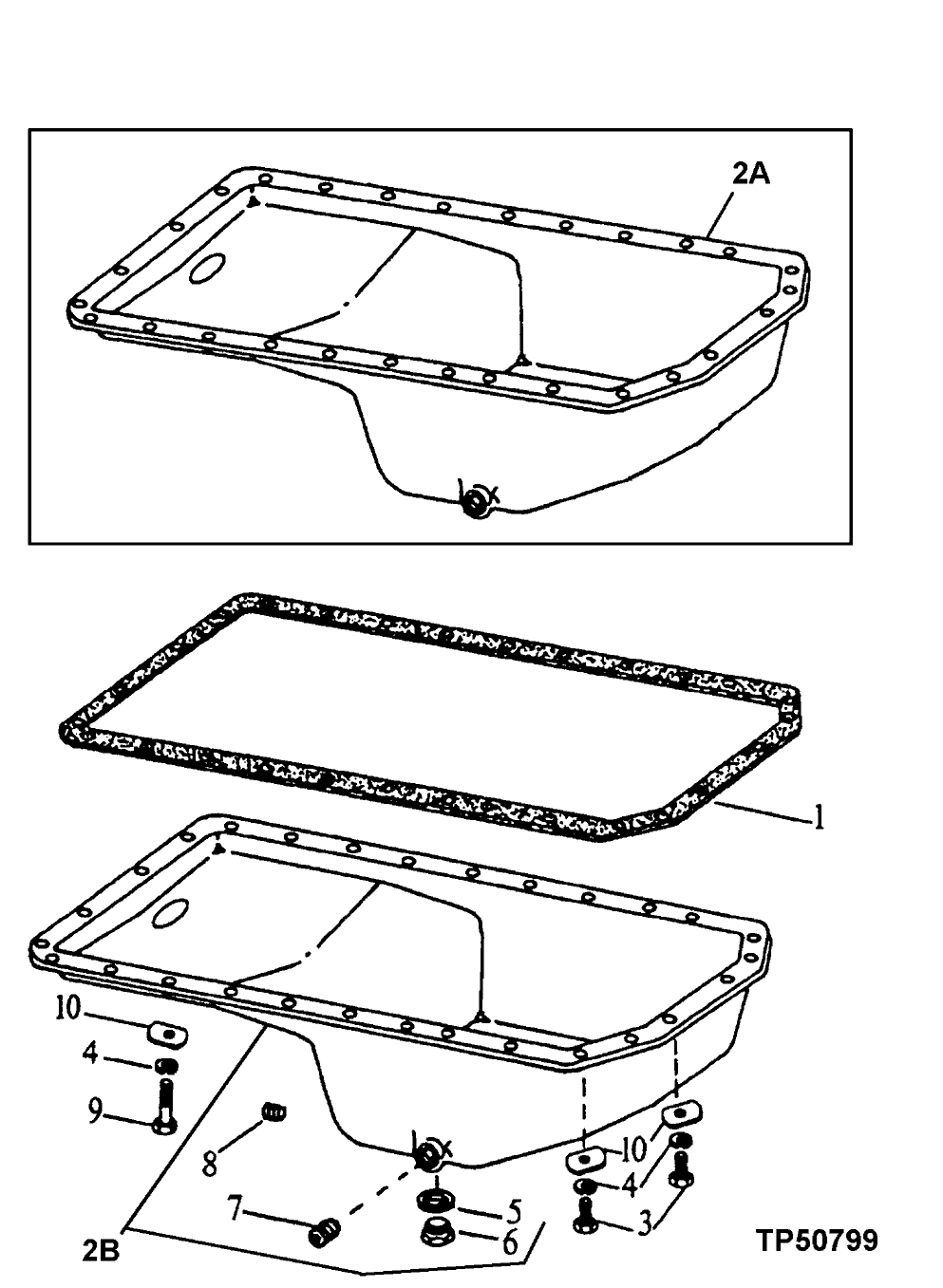

Запчасти John Deere 90D 1A - ENGINE OIL PAN 407 - ENGINE 4

1

R119360

GASKET

(SUB FOR R119360)

1шт.

2A

AR66726

OIL PAN

(ALSO ORDER T13213, T20098, RE57836 AND 15H690) (SUB AT67734)

1шт.

2B

AT67734

OIL PAN

1шт.

3

19H2284

CAP SCREW

3/8" X 7/8"

6шт.

19H2676

CAP SCREW

4шт.

4

12H304

LOCK WASHER

3/8"

28шт.

5

T13213

WASHER

1шт.

6

T20098

DRAIN PLUG

1шт.

7

15H690

PIPE PLUG

3/4"

1шт.

8

RE57836

PIPE PLUG

1/2", (SUB FOR 15H624)

1шт.

9

19H1648

CAP SCREW

3/8" X 3/4"

22шт.

19H2284

CAP SCREW

24шт.

10

R122618

SCREW

(SUB FOR T30726)

28шт.
