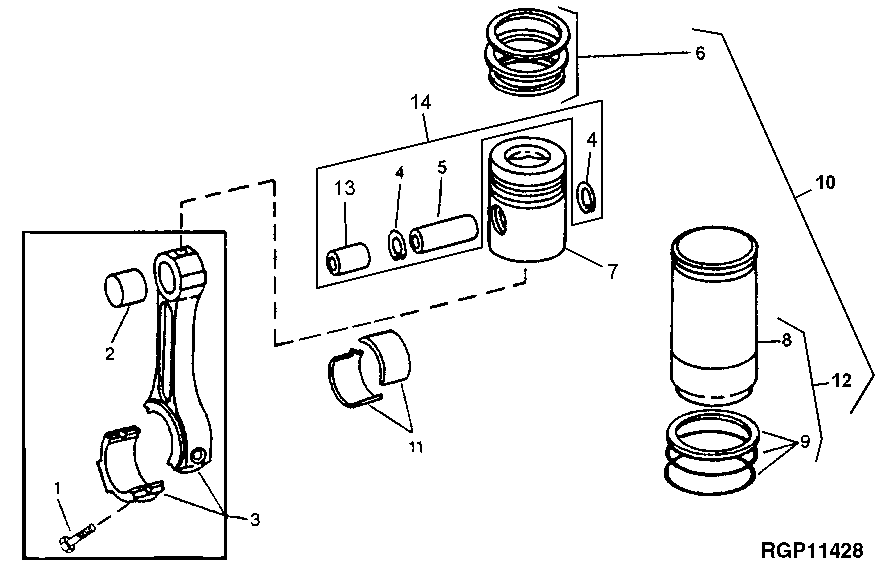

Запчасти John Deere 90D 2 - CONNECTING ROD, PISTON, RINGS AND LINER 403 - ENGINE 4

1

R74195

SCREW

8шт.

2

BUSHING

( R56186 NO LONGER AVAILABLE)

4шт.

3

RE53716

CONNECTING ROD

(MARKED R116851) (SUB FOR AR66400) (MARKED R56187)

4шт.

4

R54114

SNAP RING

8шт.

5

PIN

( R124230 N0 L0NGER AVAILABLE,FURNISH RE63913)

4шт.

6

RE507852

PISTON RING KIT

(SUB FOR RE15674, RE48818, RE66820)

4шт.

7

PISTON

(FURNISH RE19833)

4шт.

8

R121867

CYLINDER LINER

(SUB FOR R80500) (SUB RE500024) (ALSO USE AR54749 LUBRICANT FOR CYLINDER LINER PACKING INSTALLATION) (SUB FOR R54505)

4шт.

9

AR65507

O-RING KIT

4шт.

10

RE19833

KIT

(SUB FOR RE19832)

4шт.

11

AR97517

BEARING

(SET OF (2) R54801) (SUB FOR AR69098)

4шт.

BEARING

( AR68413 NO LONGER AVAILABLE) .05 MM (.002") UNDERSIZE (SET OF (2) R57123)

4шт.

AR68414

BEARING

25 MM (.010") UNDERSIZE (SET OF (2) R57124) (SUB AR97653)

4шт.

AR68415

BEARING

51 MM (.20") UNDERSIZE (SET OF (2) R57125) (SUB AR97654)

4шт.

AR68416

BEARING

76 MM (.030") UNDERSIZE (SET OF (2) R57126) (SUB AR97655)

4шт.

12

RE500024

CYLINDER LINER

4шт.

13

BUSHING

4шт.

14

RE63913

KIT

4шт.
