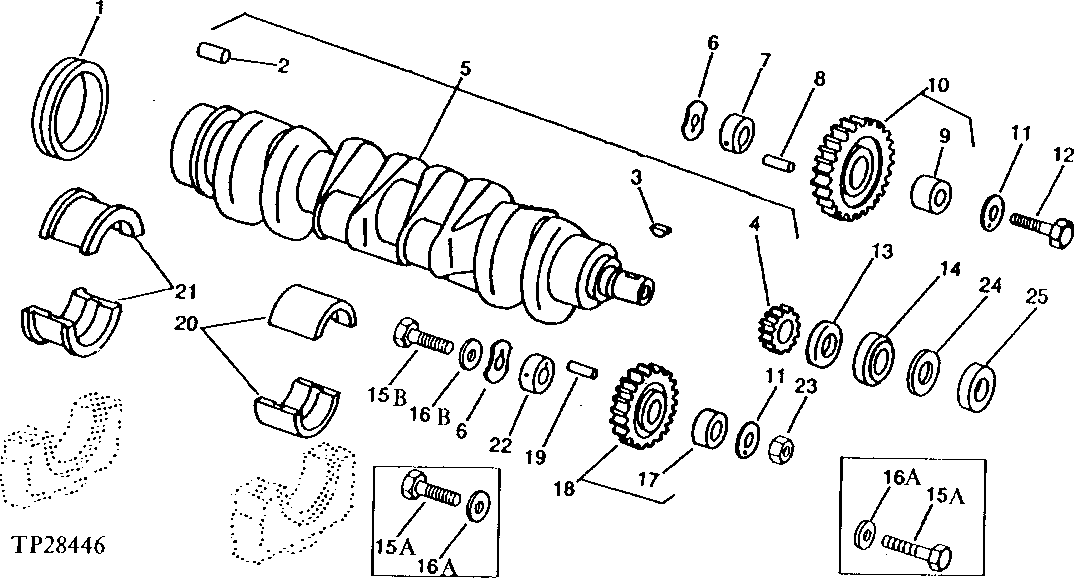

Запчасти John Deere 90D 2 - CRANKSHAFT, IDLER GEARS AND MAIN BEARINGS 401 - ENGINE 4

1

RE44574

SEAL

(SUB FOR RE17831 OR RE24959)

1шт.

2

R48685

DOWEL PIN

(SUB FOR A120R)

1шт.

3

26H72

SHAFT KEY

1/8" X 5/8"

1шт.

4

T20094

HELICAL GEAR

(24 TEETH)

1шт.

5

CRANKSHAFT

RE56792,MARKED R108657 NO LONGER AVAILABLE (SUB FOR RE11026,MARKED R54501)SUB 71439 CRANKSHAFT KIT (SHORT NOSE)

1шт.

CRANKSHAFT

RE55452,MARKED R108657 NO LONGER AVAILABLE (SUB FOR RE30341,RE57661,MARKED R90825) SUB RE54883 CRANKSHAFT KIT(LONG NOSE)

1шт.

6

T26324

THRUST WASHER

2шт.

7

R89824

SHAFT

(SUB FOR T26323)

1шт.

8

34H283

SPRING PIN

3/16" X 1-1/8"

1шт.

9

T20034

BUSHING

1шт.

10

AR91660

GEAR

(55 TEETH) (MARKED R70182)

1шт.

11

T26326

THRUST WASHER

2шт.

12

T26327

SCREW

1шт.

13

T20046

OIL SLINGER

1шт.

14

AR67942

SEAL

1шт.

15A

T26325

SCREW

2шт.

15B

19H3183

CAP SCREW

HS, SAE 8, 1/2" X 2-1/8"

1шт.

16A

R76126

WASHER

2шт.

16B

R100105

WASHER

1шт.

17

T26321

BUSHING

1шт.

18

AT24252

GEAR

(45 TEETH) (MARKED T26322)

1шт.

19

34H286

SPRING PIN

3/16" X 1-1/2"

1шт.

20

RE27352

BEARING KIT

(SUB FOR AT21140) STANDARD ( T23214)

4шт.

BEARING

( AT21108 NO LONGER AVAILABLE) 0.05 MM (.002") UNDERSIZE ( T23552)

4шт.

RE27353

BEARING KIT

(SUB FOR AT21110) 0.25 MM (.010") UNDERSIZE ( T23554)

4шт.

RE27360

KIT

(SUB FOR AT21112) 0.51 MM (.020") UNDERSIZE ( T23556)

4шт.

RE27368

KIT

(SUB FOR AT21114) 0.76 MM (.030") UNDERSIZE ( T23558)

4шт.

21

AT21139

BEARING

STANDARD ( T23215)

1шт.

BEARING

( AT21130 NO LONGER AVAILABLE) 0.05 MM (.002") UNDERSIZE ( T23574)

1шт.

AT21132

BEARING

0.25 MM (.010") UNDERSIZE ( T23576)

1шт.

AT21134

BEARING

0.51 MM (.020") UNDERSIZE ( T23578)

1шт.

AT21136

BEARING

0.76 MM (.030") UNDERSIZE ( T23580)

1шт.

22

T26323

SHAFT

(SUB R89824, R100105, 19H3183 AND E69392)

1шт.

R89824

SHAFT

1шт.

23

E69392

NUT

(SUB FOR 14H865, THIS APPLICATION)

1шт.

24

H35244

RING

1шт.

25

R81989

SLEEVE

1шт.
