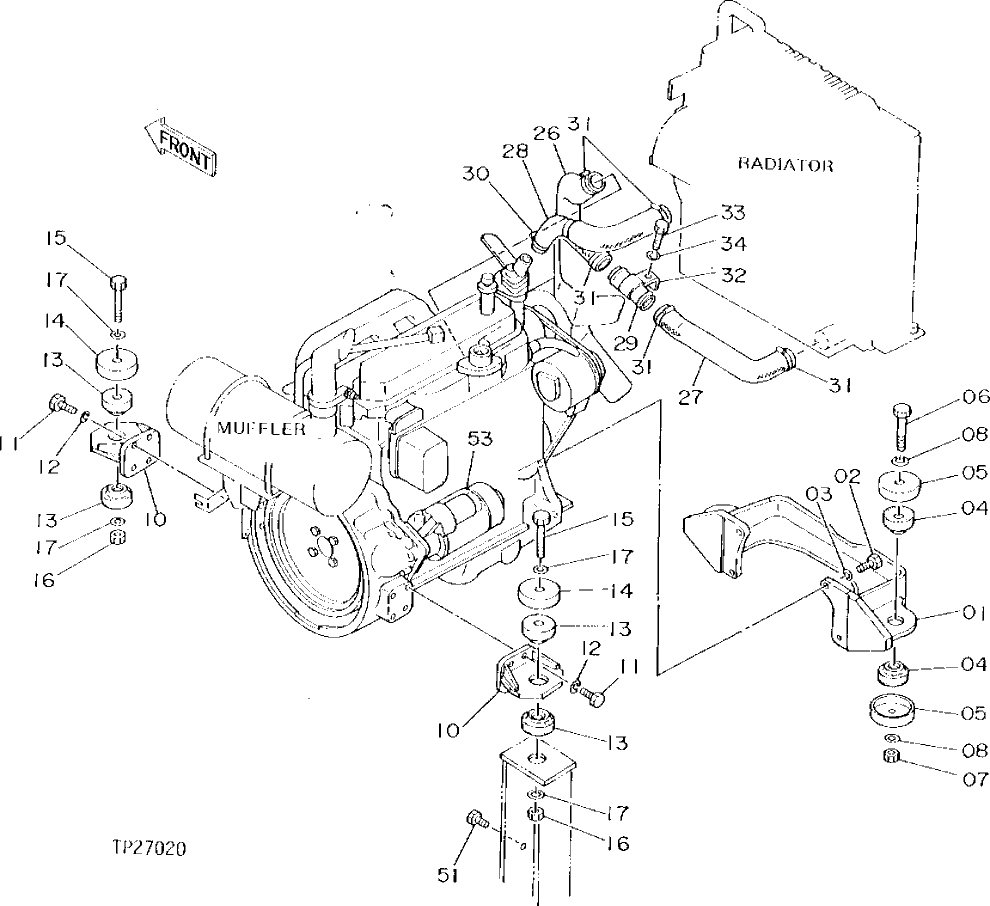

Запчасти John Deere 90D 2 - ENGINE 400 - ENGINE 4

1

7018317

BRACKET

(SUB FOR TH108210)

1шт.

2

19H2706

CAP SCREW

5/8" X 2"

4шт.

3

12H294

LOCK WASHER

5/8", (SUB FOR TH100886)

4шт.

4

4155171

ISOLATOR

(SUB FOR TH100887)

4шт.

5

4164248

STOP

(SUB FOR TH100888)

4шт.

6

19M8970

CAP SCREW

M18 X 120, (SUB FOR J931804)

2шт.

7

J951018

NUT

(SUB FOR TH100890)

2шт.

8

4114406

WASHER

19 X 36 X 4.500 MM (0.748" X 1.417" X 0.177") (SUB FOR TH100891)

4шт.

10

8028462

BRACKET

(SUB FOR TH100892)

2шт.

11

19H2993

CAP SCREW

1/2" X 1-1/2"

8шт.

12

12H301

LOCK WASHER

1/2", (SUB FOR TH100893)

8шт.

13

4155170

ISOLATOR

(SUB FOR TH100894)

4шт.

14

4164248

STOP

(SUB FOR TH100888)

2шт.

15

19M8970

CAP SCREW

M18 X 120, (SUB FOR J931804)

2шт.

16

J951018

NUT

(SUB FOR TH100890)

2шт.

17

4114406

WASHER

19 X 36 X 4.500 MM (0.748" X 1.417" X 0.177") (SUB FOR TH100891)

4шт.

26

TH108211

RADIATOR HOSE

(WATER)

1шт.

27

TH108212

RADIATOR HOSE

(WATER)

1шт.

28

TH108213

RADIATOR HOSE

(WATER)

1шт.

29

4203695

LINE

(SUB FOR TH108214) (WATER)

1шт.

30

TY22470

CLAMP

(SUB FOR TH101905) (SUB FOR AR65293)

1шт.

31

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999)

5шт.

32

4053697

CLAMP

(SUB FOR TH101030)

1шт.

33

19M7753

CAP SCREW

M12 X 70

1шт.

34

12H301

LOCK WASHER

1/2"

1шт.

51

19M7938

CAP SCREW

M10 X 20

1шт.

53

RE70961

STARTER MOTOR KIT

(SUB FOR RE15718, RE43422 AND RE65173) (STARTING MOTOR)

1шт.
