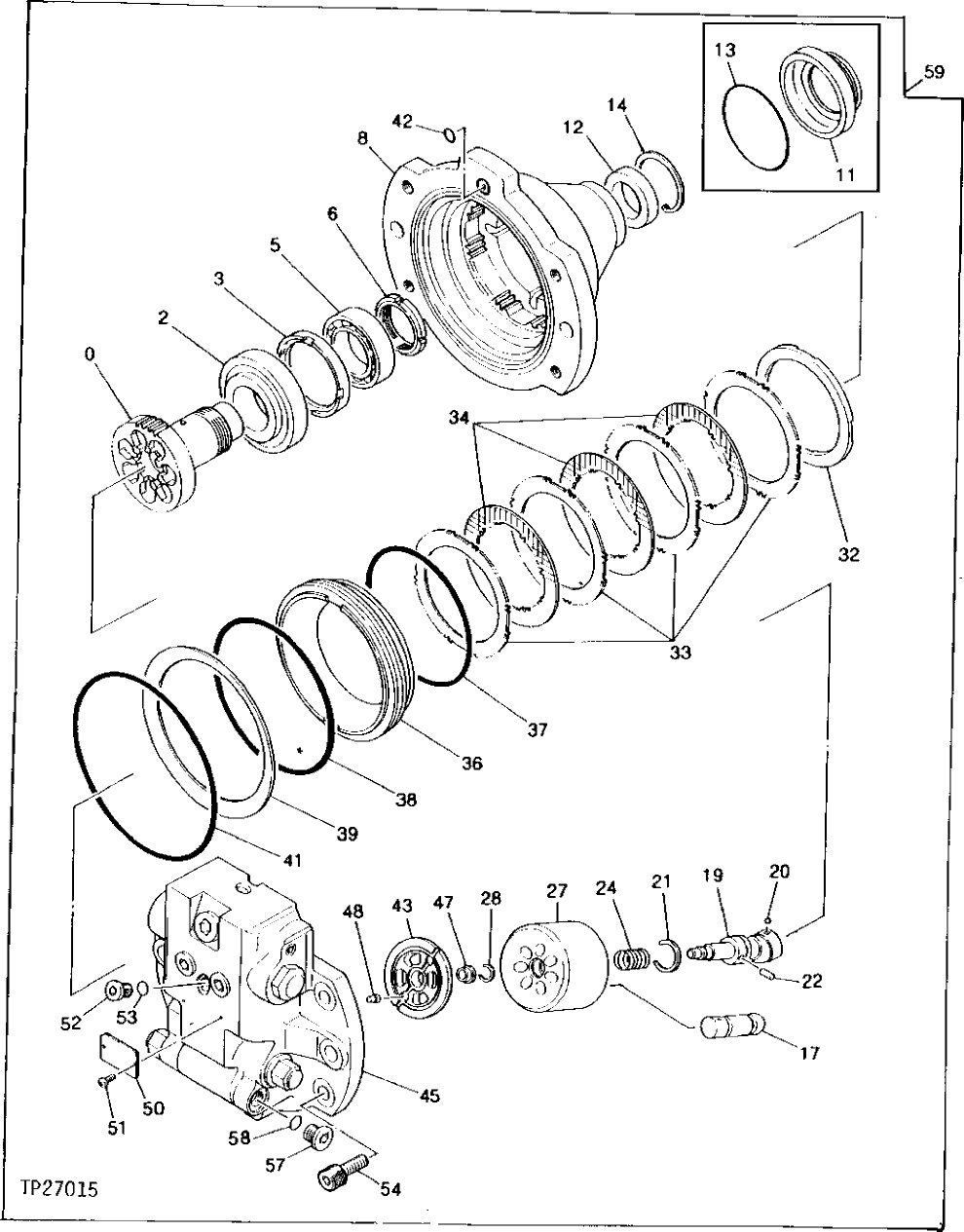

Запчасти John Deere 90D 12 - PROPEL MOTOR 260 - AXLES AND SUSPENSION SYSTEMS 2

0

2021884

DRIVE DISK

(SUB FOR TH109093) HUB

1шт.

2

TH109094

TAPERED ROLLER BEARING

1шт.

3

3033767

SPACER

(SUB FOR TH109095)

1шт.

4227551

SPACER

(SUB FOR TH111944)

1шт.

5

JD10455

CYLINDRICAL ROLLER BEARING

(SUB FOR TH109096 OR T116639)

1шт.

6

4180790

NUT

(SUB FOR TH109097)

1шт.

8

HOUSING

(SUB AT217364)

1шт.

1012660

HOUSING

(SUB FOR TH111945)

1шт.

11

3033766

COVER

(SUB FOR TH109099)

1шт.

12

4180789

SEAL

(SUB FOR TH109100)

1шт.

13

CH16109

PACKING

1шт.

14

40M7118

SNAP RING

(SUB FOR TH109101)

1шт.

40M7201

SNAP RING

(SUB FOR TH111946)

1шт.

17

9742464

PISTON

(SUB FOR TH109102) (SUB FOR AT216024)

7шт.

19

9725076

SHAFT

(SUB FOR TH109103)

1шт.

20

L38718

BALL

6 MM (0.236")

1шт.

21

4184949

SNAP RING

(SUB FOR TH109104)

1шт.

22

4198956

PIN FASTENER

(SUB FOR T107766)

1шт.

24

4180786

COMPRESSION SPRING

(SUB FOR TH109105)

1шт.

27

3033765

ROTOR

(SUB FOR TH109106)

1шт.

28

4188858

SNAP RING

(SUB FOR TH109107)

1шт.

32

4179342

SPACER

(SUB FOR TH109108)

1шт.

33

3033493

PLATE

(SUB FOR TH109109)

4шт.

34

3033494

PLATE

(SUB FOR TH109110) FRICTION

3шт.

36

3033492

PISTON

(SUB FOR TH109111) BRAKE RELEASE

1шт.

37

4252402

RING

(SUB FOR TH109112)

1шт.

38

4232766

RING

(SUB FOR T107773)

1шт.

39

3033310

DISK SPRING

(SUB FOR TH109113)

1шт.

41

T107748

O-RING

190 X 3 MM (7.480" X 0.118")

1шт.

42

T111819

O-RING

14.800 X 2.400 MM (0.583" X 0.094") (SUB FOR TH106167)

1шт.

43

3041415

PLATE

(SUB FOR TH109114)

1шт.

45

9090259

FLOW CONTROL HYD. VALVE

(SUB FOR TH108821)

1шт.

9083455

FLOW CONTROL HYD. VALVE

(SUB FOR TH111938) (SUB FOR TH112119)

1шт.

47

4180781

BUSHING

(SUB FOR TH109115)

1шт.

48

4177927

PIN

(SUB FOR T107780)

2шт.

50

IDENTIFICATION PLATE

(SUB AT217311)

1шт.

51

37H99

SCREW

0.100" X 1/4"

2шт.

52

4208977

DRAIN PLUG

(SUB FOR TH111351)

1шт.

53

M800650

PACKING

1шт.

54

19M8531

SCREW

M14 X 35

4шт.

57

15M7036

DRAIN PLUG

(SUB FOR TH109285 OR 0309805) (SUB FOR 4217653, ALONG WITH CH11570)

1шт.

58

CH11570

O-RING

1шт.

59

HYDRAULIC MOTOR

REMAN, ( TH108820, AT217364, OR 9073498EX NLA)

1шт.

9086378EX

HYDRAULIC MOTOR REMAN

REMAN, (SUB FOR TH111937 OR AT217311)

1шт.
