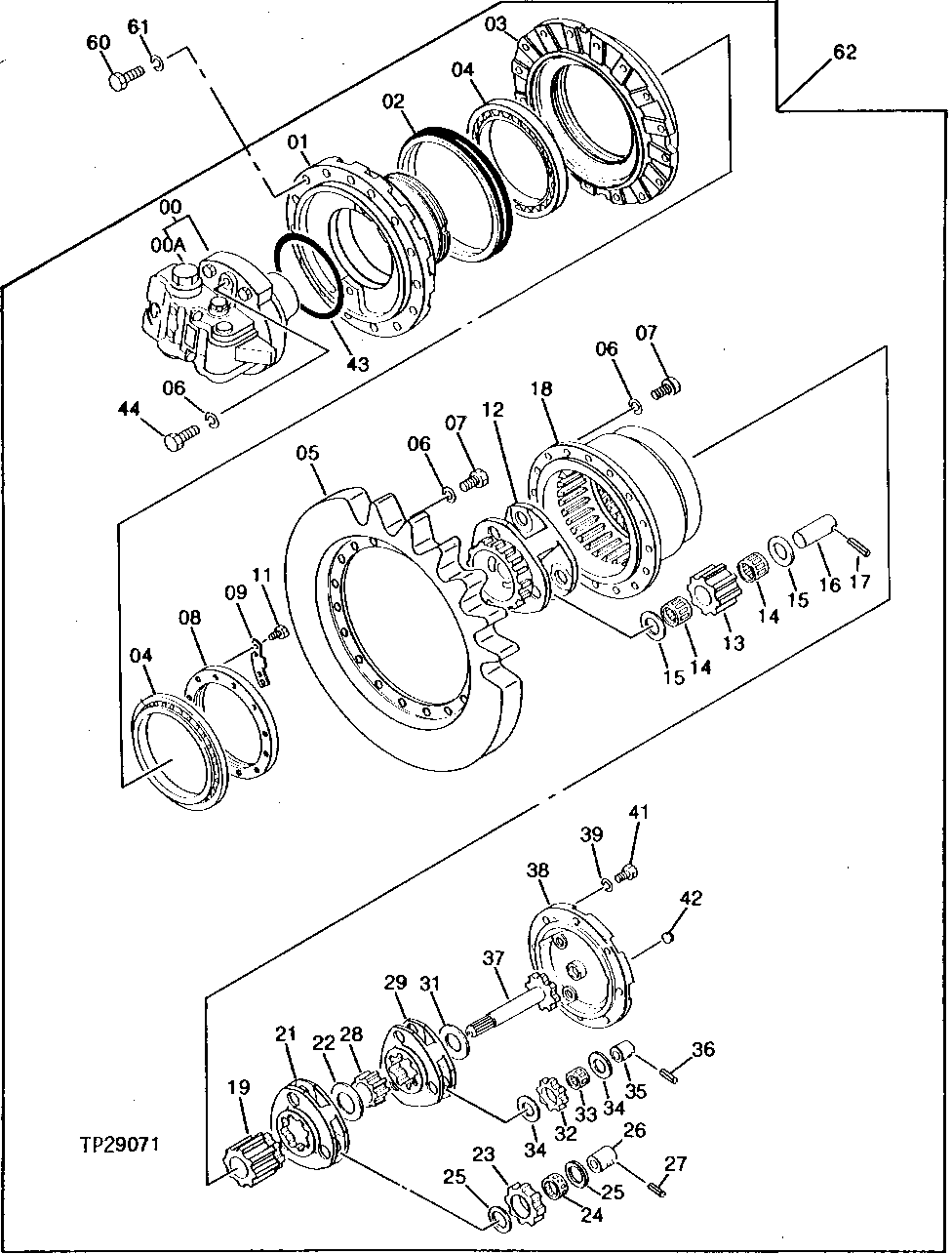

Запчасти John Deere 90D 8 - PROPEL MOTOR, BRAKE AND PLANETARY DRIVE 260 - AXLES AND SUSPENSION SYSTEMS 2

0

HYDRAULIC MOTOR

REMAN, ( TH108820, AT217364, OR 9073498EX NLA)

1шт.

9086378EX

HYDRAULIC MOTOR REMAN

REMAN, (SUB FOR TH111937 OR AT217311)

1шт.

0A

9090259

FLOW CONTROL HYD. VALVE

(SUB FOR TH108821)

1шт.

9083455

FLOW CONTROL HYD. VALVE

(SUB FOR TH111938) (SUB FOR TH112119)

1шт.

1

1009905

HOUSING

(SUB FOR TH108822)

1шт.

2

4179741

SEAL

(SUB FOR TH108823)

1шт.

3

1009401

FLANGE

(SUB FOR TH108824)

1шт.

4

AT130941

TAPERED ROLLER BEARING

(SUB FOR TH108825)

2шт.

5

AT316098

CHAIN SPROCKET

(SUB FOR TH108826 OR AT180462)

1шт.

6

12H294

LOCK WASHER

5/8"

34шт.

7

19M7488

CAP SCREW

M16 X 40

32шт.

8

3033234

NUT

(SUB FOR TH108827)

1шт.

9

4178862

LOCK PLATE

(SUB FOR T107725)

1шт.

11

19M7938

CAP SCREW

M10 X 20

2шт.

12

1020591

PLANET PINION CARRIER

(SUB FOR TH108828) (SUB FOR AT167499)

1шт.

13

3034195

GEAR

(SUB FOR TH108829)

3шт.

14

4354748

NEEDLE BEARING

(SUB FOR TH108830) (SUB FOR AT217768)

6шт.

15

4196487

PLATE

(SUB FOR TH108831)

6шт.

16

4183107

PIN

(SUB FOR TH108832)

3шт.

17

4144020

SPRING PIN

6 X 56 MM (0.236" X 2.205") (SUB FOR TH108833)

3шт.

18

1010014

RING GEAR

(SUB FOR TH108834)

1шт.

19

3033236

SUN GEAR

(SUB FOR TH108835)

1шт.

21

2034738

PLANET PINION CARRIER

(SUB FOR TH108836) (SUB FOR AT160508)

1шт.

22

4187683

WASHER

(SUB FOR TH108837)

1шт.

23

3033238

GEAR

(SUB FOR TH108838)

3шт.

24

TH102292

NEEDLE BEARING

3шт.

25

4196489

PLATE

(SUB FOR TH108839)

6шт.

26

4178203

BUSHING

(SUB FOR TH108840)

3шт.

27

4173093

SPRING PIN

(SUB FOR TH108841)

3шт.

28

3033235

SUN GEAR

(SUB FOR TH108842)

1шт.

29

2021633

PLANET PINION CARRIER

(SUB FOR TH108843)

1шт.

2037034

PLANET PINION CARRIER

(SUB FOR TH111939) (SUB FOR AT167500)

1шт.

31

4178208

WASHER

(SUB FOR TH108844)

1шт.

32

3033237

GEAR

(SUB FOR TH108845)

3шт.

3034194

GEAR

(SUB FOR TH111940)

3шт.

33

4177007

NEEDLE BEARING

(SUB FOR TH108846)

3шт.

34

4192910

PLATE

(SUB FOR TH108847)

6шт.

35

4178202

BUSHING

(SUB FOR TH108848)

3шт.

36

34M7181

SPRING PIN

4 X 45 MM

3шт.

37

T200648

PINION SHAFT

(SUB FOR TH108849 OR 2022131)

1шт.

2022128

SHAFT

(SUB FOR TH111941)

1шт.

38

2022682

COVER

(SUB FOR TH108850)

1шт.

2025960

COVER

(SUB FOR TH111942)

1шт.

39

12H301

LOCK WASHER

1/2"

8шт.

41

19M8169

SCREW

M12 X 30

8шт.

42

94-2013

FITTING PLUG

(SUB FOR AT128487) (SUB FOR TH100648)

2шт.

94-2013

FITTING PLUG

(SUB FOR AT128487) (SUB FOR TH100648)

3шт.

43

4092970

O-RING

174.300 X 3.100 MM (6.862" X 0.122") (SUB FOR TH105976)

1шт.

44

19M8529

CAP SCREW

M16 X 70

2шт.

60

19M8529

CAP SCREW

M16 X 70

28шт.

61

12H294

LOCK WASHER

5/8"

28шт.

62

MOTOR

( TH111936 NO LONGER AVAILABLE)

2шт.
