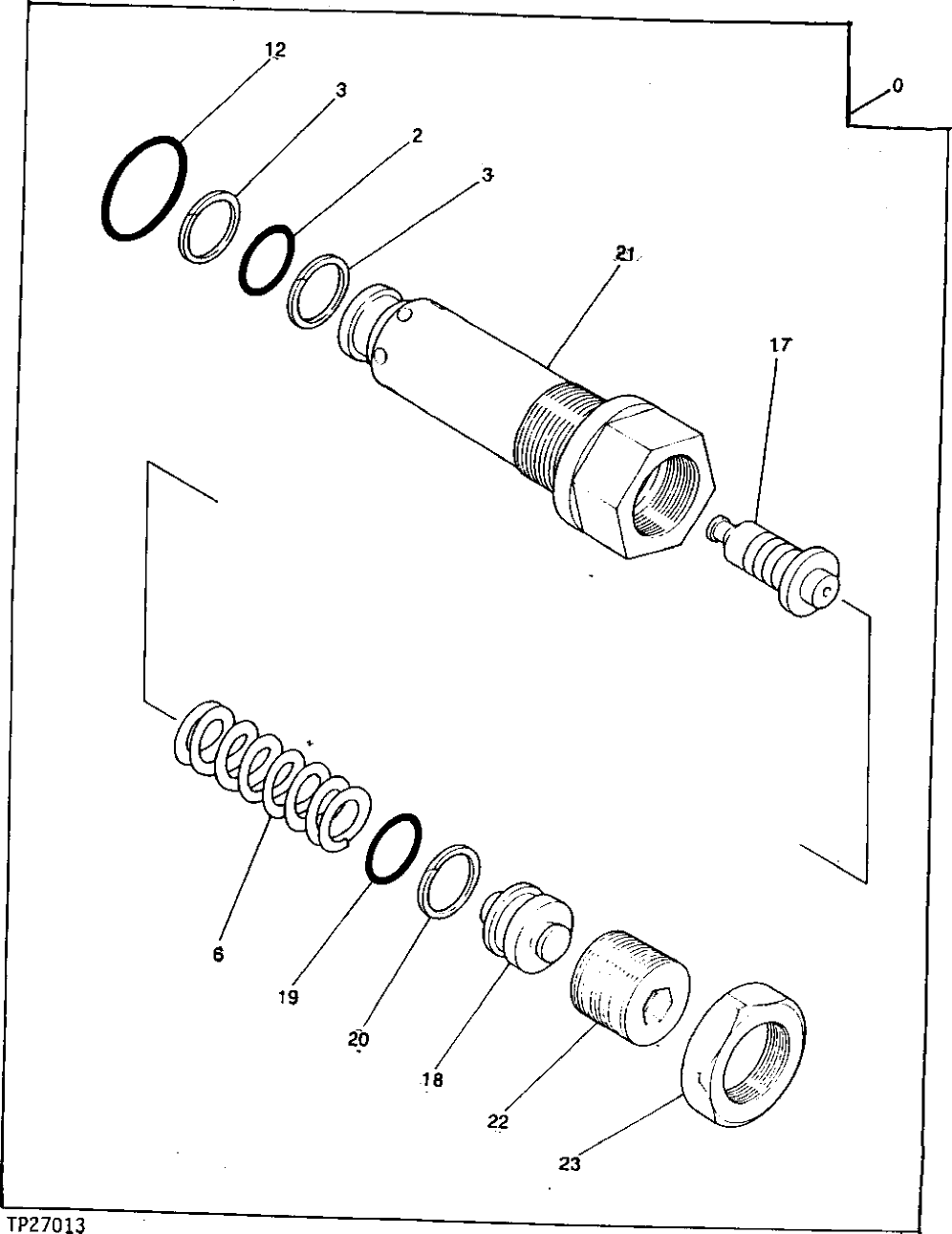

Запчасти John Deere 90D 6 - RELIEF VALVE 260 - AXLES AND SUSPENSION SYSTEMS 2

0

9065995

PRESSURE RELIEF VALVE

(SUB FOR TH109126)

2шт.

9080500

PRESSURE RELIEF VALVE

(SUB FOR TH111943)

2шт.

2

4185504

O-RING

12.300 X 1.900 MM (0.484" X 0.075") (SUB FOR TH109131)

1шт.

3

4185505

BACK-UP RING

(SUB FOR TH109132)

2шт.

6

4185341

COMPRESSION SPRING

(SUB FOR TH109133)

1шт.

12

CH12329

PACKING

(SUB FOR TH100770)

1шт.

17

4187481

PISTON

(SUB FOR TH109134)

1шт.

18

4192174

PLUG

(SUB FOR TH109135)

1шт.

19

4185504

O-RING

12.300 X 1.900 MM (0.484" X 0.075") (SUB FOR TH109131)

1шт.

20

4185505

BACK-UP RING

(SUB FOR TH109132)

1шт.

21

HOUSING

(SUB TH109126 OR TH111943)

1шт.

22

4192175

SET SCREW

M18 X 15, (SUB FOR TH109137)

1шт.

23

4197135

NUT

(SUB FOR TH109138)

1шт.
