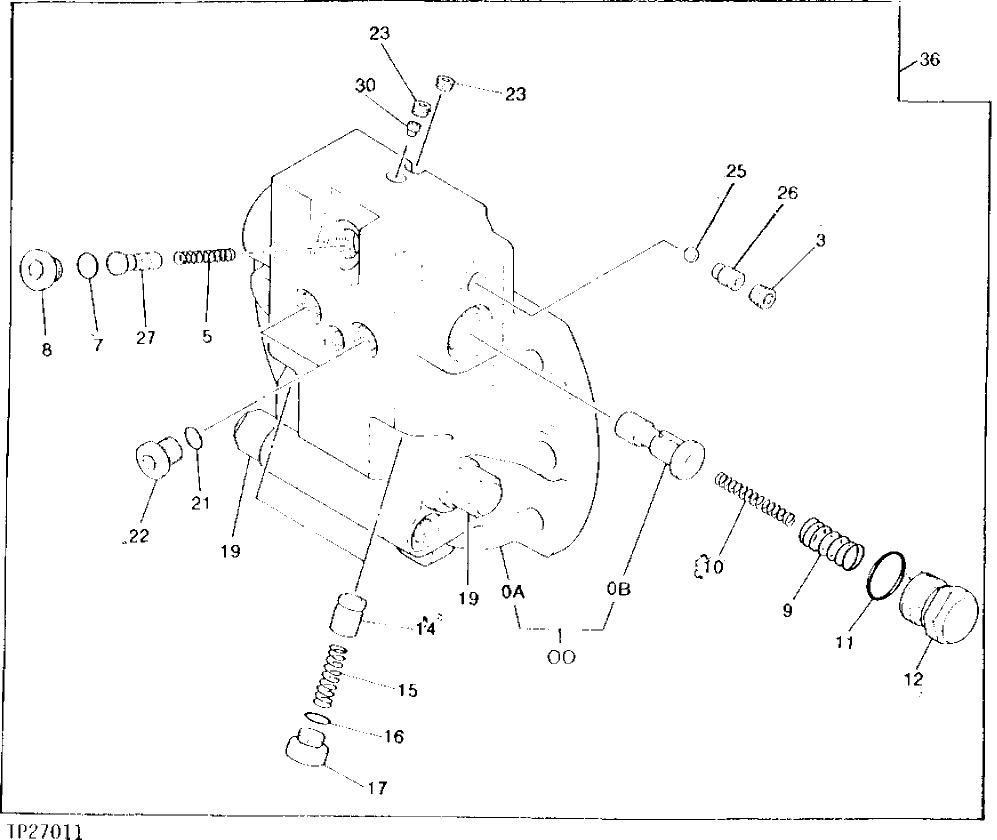

Запчасти John Deere 90D 4 - PROPEL BRAKE VALVE 260 - AXLES AND SUSPENSION SYSTEMS 2

0

CASE

1шт.

0A

VALVE

1шт.

0B

SPOOL

2шт.

3

94-2011

FITTING PLUG

(SUB FOR TH100434)

1шт.

5

4185136

SPRING

(SUB FOR T107783)

1шт.

7

CH11570

O-RING

1шт.

8

15M7036

DRAIN PLUG

1шт.

9

4181417

COMPRESSION SPRING

(SUB FOR TH109118)

2шт.

10

4181416

COMPRESSION SPRING

(SUB FOR TH109119)

2шт.

11

CH17653

PACKING

(SUB FOR TH109120)

2шт.

12

4181484

FITTING PLUG

(SUB FOR TH109121)

2шт.

14

4181486

POPPET

(SUB FOR TH109122)

2шт.

15

4185001

COMPRESSION SPRING

(SUB FOR TH109123)

2шт.

16

CH11570

O-RING

2шт.

17

4181485

PIPE PLUG

(SUB FOR TH109125)

2шт.

19

9065995

PRESSURE RELIEF VALVE

(SUB FOR TH109126)

2шт.

9080500

PRESSURE RELIEF VALVE

(SUB FOR TH111943)

2шт.

21

M800650

PACKING

2шт.

22

4208977

DRAIN PLUG

(SUB FOR T107790) (SUB FOR TH111351)

2шт.

23

15H560

PIPE PLUG

1/16"

2шт.

25

R26552

BALL

7.938 MM (5/16")

1шт.

26

4192228

VALVE SEAT

(SUB FOR TH109127)

1шт.

27

4190670

VALVE SPOOL

(SUB FOR T107793)

1шт.

30

4202942

ORIFICE

(SUB FOR TH109128, THIS APPLICATION) (SUB FOR T107796)

1шт.

31

4177927

PIN

(SUB FOR T107780) (INCLUDED IN TH108821) (NOT ILLUSTRATED)

2шт.

32

94-2010

FITTING PLUG

(SUB FOR TH100689) (INCLUDED IN TH108821) (NOT ILLUSTRATED)

1шт.

4208977

DRAIN PLUG

(SUB FOR TH111351) (INCLUDED IN TH108821) (NOT ILLUSTRATED)

1шт.

M800650

PACKING

(INCLUDED IN TH108821) (NOT ILLUSTRATED)

1шт.

33

15M7036

DRAIN PLUG

(SUB FOR TH109285 OR 0309805) (INCLUDED IN TH108821) (NOT ILLUSTRATED) (SUB FOR T107751 OR TH111931, ALONG WITH CH11570)

1шт.

33A

CH11570

O-RING

(NOT ILLUSTRATED)

1шт.

35

37H99

SCREW

0.100" X 1/4", (INCLUDED IN TH108821) (NOT ILLUSTRATED)

2шт.

36

9090259

FLOW CONTROL HYD. VALVE

(SUB FOR TH108821)

1шт.

9083455

FLOW CONTROL HYD. VALVE

(SUB FOR TH112119)

1шт.
