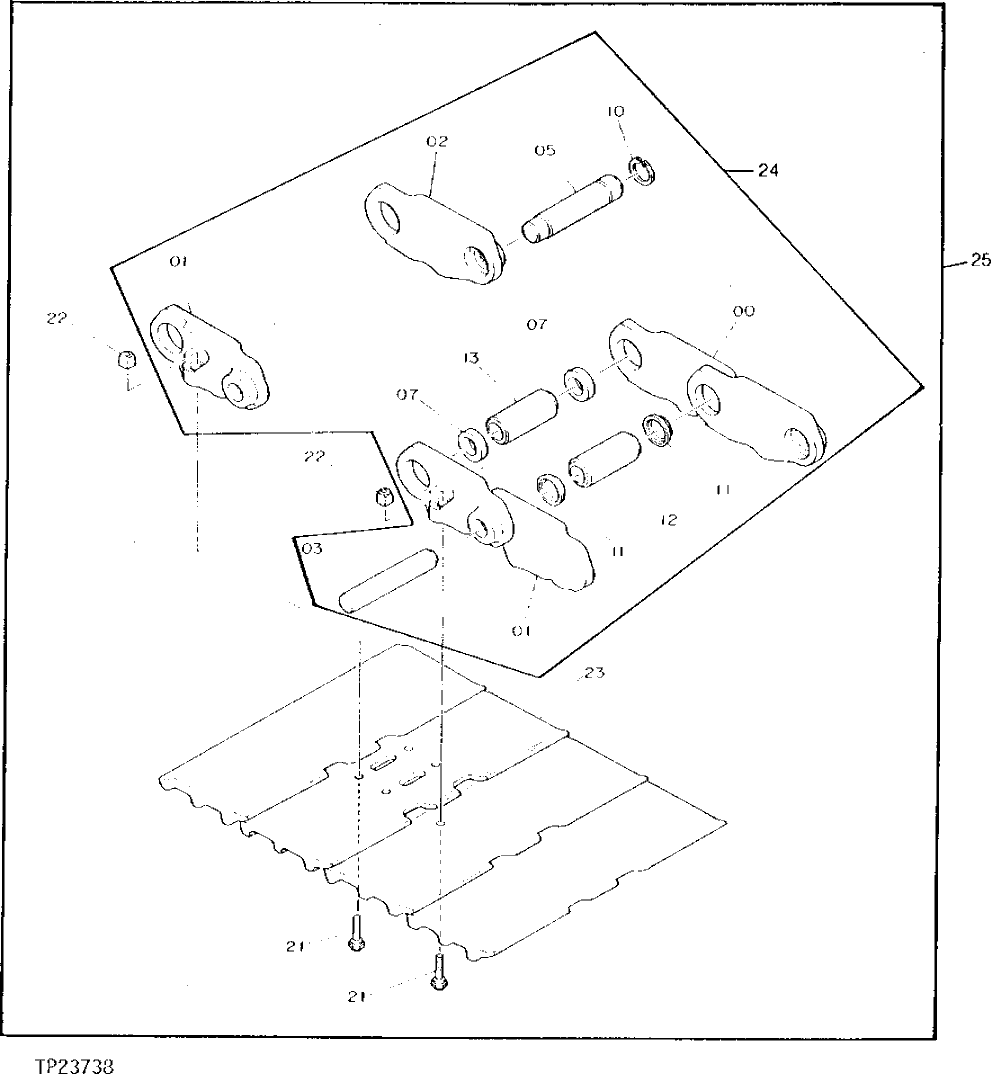

Запчасти John Deere 90D 10 - TRACK CHAIN 130 - TRACKS 1

0

1010119

STRUTTED LINK-RH

(SUB FOR TH108893) R.H

42шт.

1

1010120

STRUTTED LINK-LH

(SUB FOR TH108894) L.H

43шт.

2

AT128412

MASTER TRACK LINK-RH

(SUB FOR TH108895) MASTER (USE IF AVAILABLE)

1шт.

AT128412

MASTER TRACK LINK-RH

(SUB FOR TH108895) (MASTER)

1шт.

3

AT173246

PIN

(SUB FOR TH108896)

42шт.

5

AT173247

MASTER TRACK PIN

(SUB FOR TH108897) MASTER

1шт.

7

TH108898

SPACER

33.900 X 51 X 12.600 MM (1.335" X 2.008" X 0.496")

2шт.

10

T212046

SNAP RING

(SUB FOR 4192665, TH108899 OR DH400631)

1шт.

11

4347208

SEAL

(SUB FOR 4192571 OR AT173245) (ALSO ORDER AT128414) (11 MM LENGTH)

84шт.

12

AT128414

BUSHING

(115.5 MM LENGTH) (SUB FOR TH101372, ALSO ORDER (2) AT173245)

42шт.

13

TH100397

BUSHING

100.500 X 107.500 X 50.570 MM (3.957" X 4.232" X 1.991") MASTER

1шт.

21

4254888

BOLT

(USE WITH LINKS MARKED 171 Q) (172 EACH SIDE OF UNIT) (SUB FOR TH100398, ALONG WITH AT180443)

344шт.

T43323

TRACK BOLT

(K) 15.875 X 52 MM (5/8" X 2.047") (USE WITH LINKS MARKED 171 J) (172 EACH SIDE OF UNIT) (SUB FOR T45096)

344шт.

22

4122664

NUT

M16, (SUB FOR TH100399) (USE WITH TH100398 BOLT) (USE WITH LINKS MARKED 171Q) (172 EACH SIDE OF UNIT)

344шт.

AT180443

NUT

(SUB FOR AT128416) (USE WITH 4254888 BOLT) (USE WITH LINKS MARKED 171Q) (172 EACH SIDE OF UNIT)

344шт.

T45097

NUT

(K) 15.875 MM (5/8") (USE WITH LINKS MARKED 171J) (172 EACH SIDE OF UNIT)

344шт.

23

2037093

OPEN CENTER 3 BAR SHOE

(SUB FOR TH100400 AND 2019235) 500M (19.62") PAD (43 EACH SIDE OF UNIT)

86шт.

T212012

OPEN CENTER 3 BAR SHOE

(SUB FOR TH108986 OR 2024425) 700 MM (28") PAD (43 EACH SIDE OF UNIT)

86шт.

T212011

OPEN CENTER 3 BAR SHOE

(SUB FOR TH111657) 600 MM (23.62") PAD (43 EACH SIDE OF UNIT)

86шт.

T57079

OPEN CENTER 3 BAR SHOE

(K) 600 MM (23.62") PAD (HEAVY DUTY) (43 EACH SIDE OF UNIT)

86шт.

2034772

SINGLE BAR SHOE

(SUB FOR AT158182) (600 MM - 24 INCH) (NOT ILLUSTRATED)

86шт.

24

TRACK CHAIN W/O SHOES

(SUB (2) AT128409, ALONG WITH (344) T212050 AND (344) T212051) ( AT173248 NO LONGER AVAILABLE)

2шт.

25

TRACK CHAIN W/O SHOES

(500 MM, 600 MM, 700 MM) (ORDER INDIVIDUAL COMPONENTS)

2шт.
