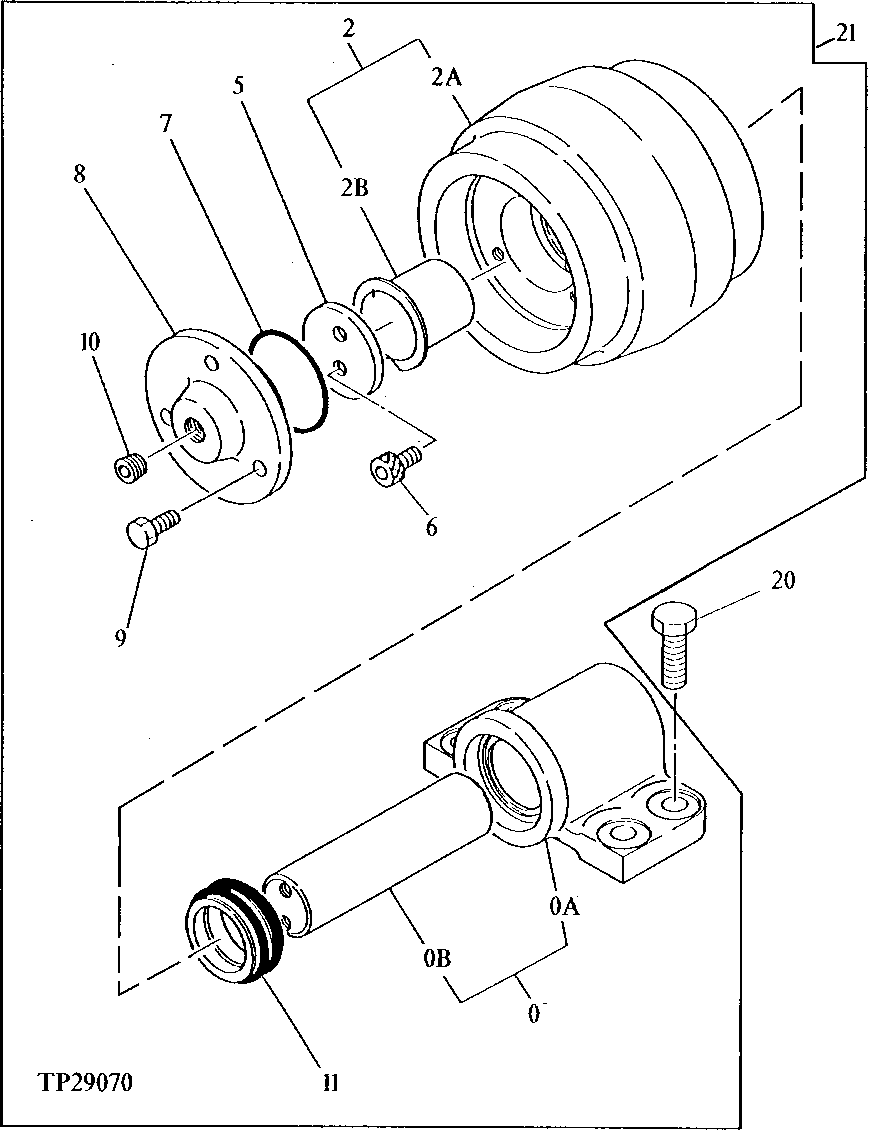

Запчасти John Deere 90D 6 - UPPER ROLLER 130 - TRACKS 1

0

BRACKET

( TH108878 USE IF AVAILABLE) (USE WITH TH108877 ROLLER)

1шт.

0A

BRACKET

(SUB TH108878 IF AVAILABLE) (USE WITH TH108877 ROLLER)

1шт.

0B

SHAFT

(SUB TH108878 IF AVAILABLE) (USE WITH TH108877 ROLLER)

1шт.

2

ROLLER

( TH108879 NO LONGER AVAILABLE)

1шт.

2A

ROLLER

1шт.

2B

BUSHING

(SUB FOR TH108881) (SUB FOR AT167822) ( 4327613 NSEP)

1шт.

5

4173905

WASHER

(SUB FOR TH108882) (USE WITH TH108877 ROLLER)

1шт.

WASHER

(SUB FOR AT131371) (USE WITH AT131369 ROLLER) ( 4282841 NSEP)

1шт.

6

TH100454

SCREW

(USE WITH TH108877 ROLLER)

2шт.

M351018

BOLT

(SUB FOR AT131372) (USE WITH AT131369 ROLLER)

2шт.

7

CH11436

O-RING

(SUB FOR TH100004)

1шт.

8

4173903

COVER

(SUB FOR TH108883)

1шт.

9

19M7881

SCREW

M8 X 20

3шт.

10

94-2011

FITTING PLUG

(SUB FOR TH100434)

1шт.

11

TH100452

SEAL

1шт.

20

19M7403

CAP SCREW

M12 X 35, (QUANTITY OF FOUR WITH EACH ROLLER)

8шт.

21

4S00515

ROLLER CARRIAGE

(SUB FOR AT131369 OR 9105752)

2шт.
