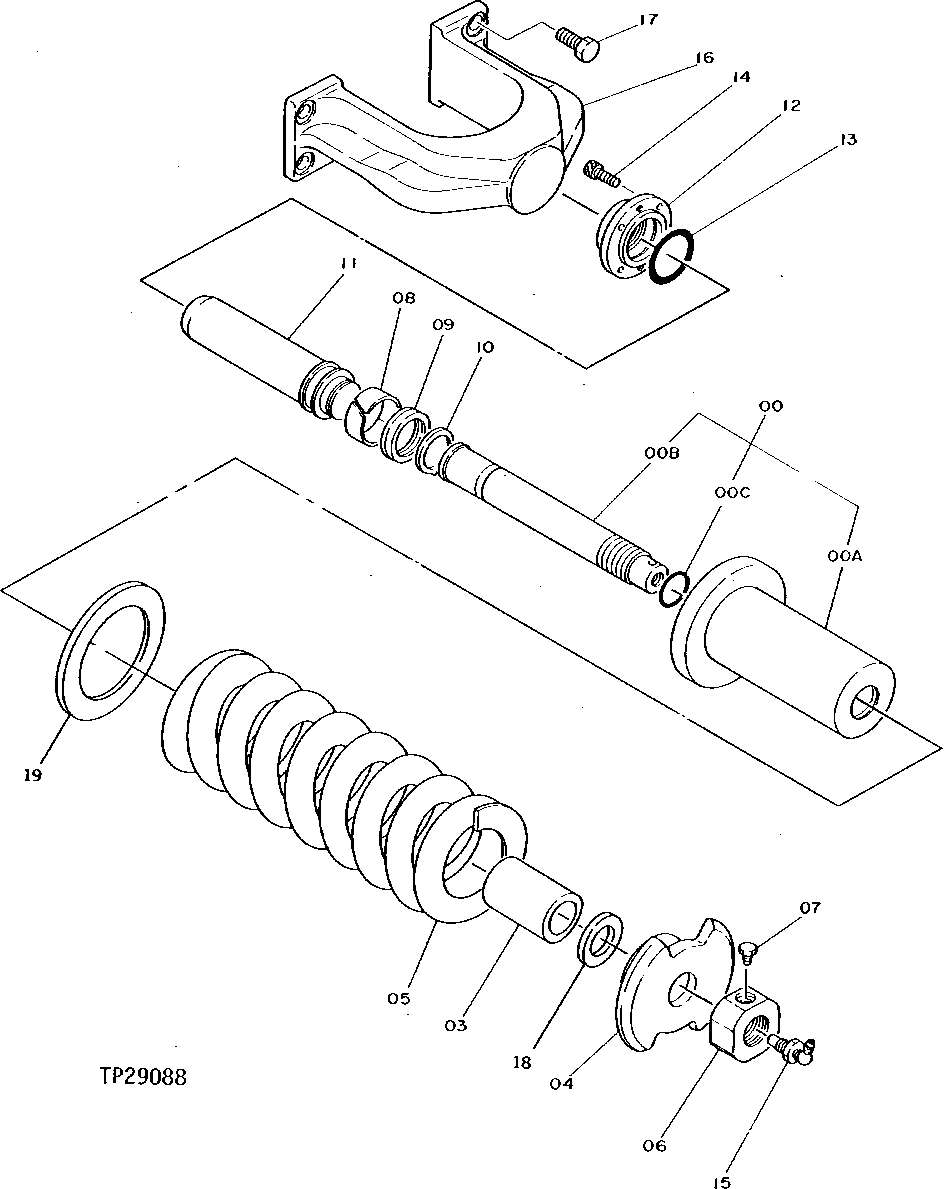

Запчасти John Deere 90D 4 - TRACK ADJUSTER 130 - TRACKS 1

0

CYLINDER

(ORDER INDIVIDUAL COMPONENTS)

1шт.

0A

3034933

CYLINDER

(SUB FOR TH108861)

1шт.

0B

3034939

ROD

(SUB FOR TH108862)

1шт.

0C

992444

O-RING

39.700 X 3.500 MM (1.563" X 0.138") (SUB FOR TH108863 OR 4509931)

1шт.

3

4186446

SPACER

(SUB FOR TH108864)

1шт.

4

4186443

BUSHING

(SUB FOR TH108865)

1шт.

5

3034938

COMPRESSION SPRING

(SUB FOR TH108866)

1шт.

6

4186445

NUT

(SUB FOR TH108867)

1шт.

7

TH108868

BOLT

M10 X 16

1шт.

8

TH108869

WEAR RING

1шт.

9

4179303

PACKING

(SUB FOR TH108870)

1шт.

10

40M7047

SNAP RING

(SUB FOR TH108871)

1шт.

11

3034935

ROD

(SUB FOR TH108872)

1шт.

12

3034936

FLANGE

(SUB FOR TH108873)

1шт.

13

CH15107

PACKING

(SUB FOR TH100110)

1шт.

14

19M8446

SCREW

M8 X 20

4шт.

15

4255055

VALVE

(SUB FOR TH108874 OR AT154223)

1шт.

16

1010168

YOKE

(SUB FOR TH108875)

1шт.

17

19M8035

CAP SCREW

M16 X 35

4шт.

18

DY0812

SPACER

(B)

1шт.

19

DY0813

SPACER

(B)

1шт.
