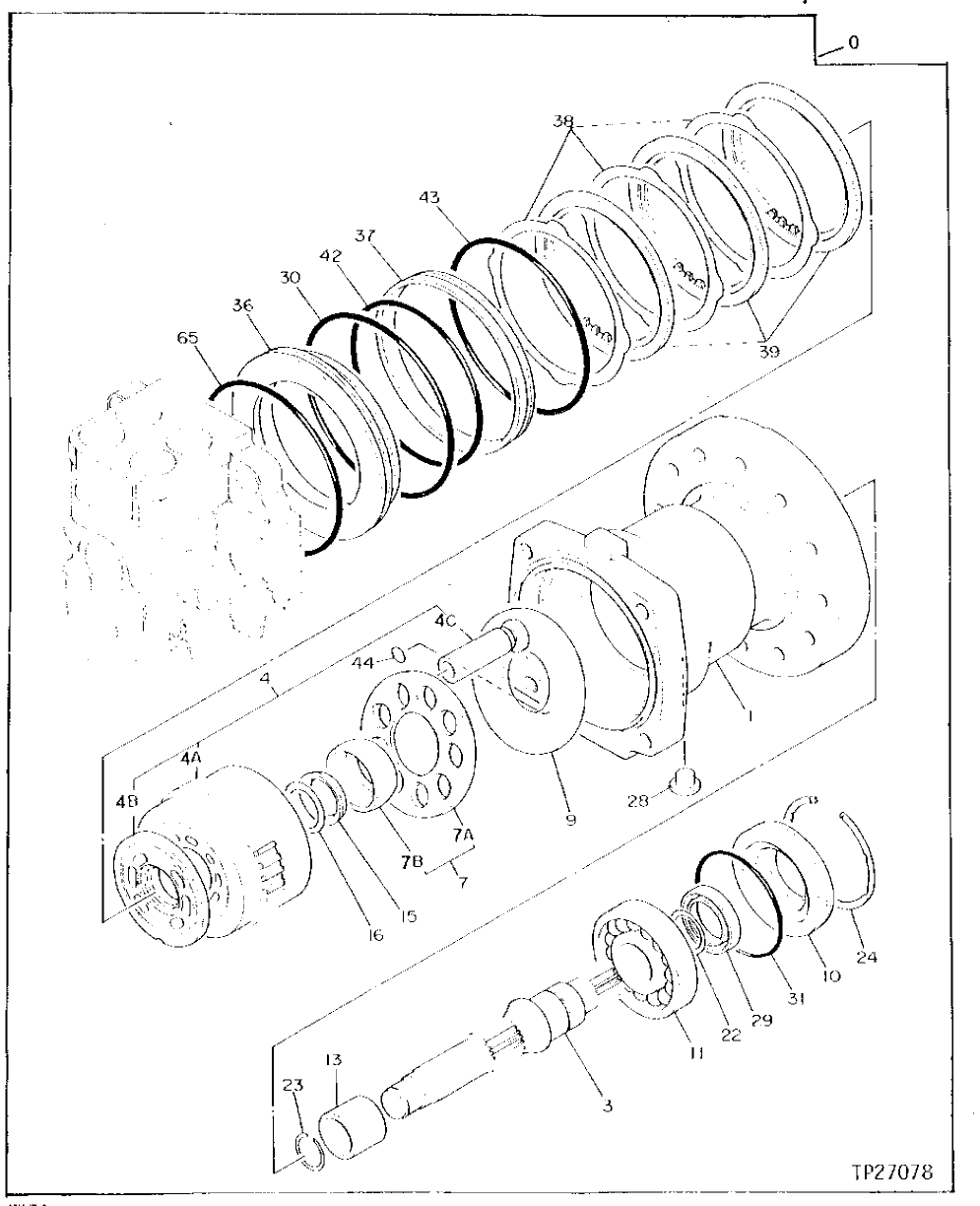

Запчасти John Deere 90D 2 - SWING MOTOR 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43
№
Артикул
Название
Примечание
Количество
0
TH111898
MOTOR
(SUB FOR TH108286) (SUB AT217312, ALONG WITH TH111890, TH109540, TH100055, T77858, TH110496 AND TH101926) (CONTAINS ALL ITEMS ON THIS PAGE - FOR ADDITIONAL COMPONENTS SEE FOLLOWING PAGE)
1шт.
4224976EX
HYDRAULIC MOTOR REMAN
(REMANUFACTURED) (SUB FOR TH111898) (SUB FOR AT217312) (CONTAINS ALL ITEMS ON THIS PAGE - FOR ADDITIONAL COMPONENTS SEE FOLLOWING PAGE)
1шт.
1
CASE
( TH109044 NO LONGER AVAILABLE)
1шт.
HOUSING
(SUB AT217312)
1шт.
3
0311303
SHAFT
(SUB FOR TH109046)
1шт.
0356703
SHAFT
(SUB FOR AT130570)
1шт.
4
0311304
CYLINDER BLOCK
(SUB FOR TH109047)
1шт.
4A
CYLINDER BLOCK
(SUB TH109047)
1шт.
4B
PLATE
(SUB TH109047)
1шт.
4C
PISTON
(SUB TH109047)
9шт.
7
0311305
PLATE
(SUB FOR TH109048)
1шт.
7A
PLATE
(SUB TH109048)
1шт.
7B
HOLDER
(SUB TH109048)
1шт.
9
0311306
WASHER
56 X 125 X 6 MM (2.205" X 4.921" X 0.236") (SUB FOR TH109049)
1шт.
10
0311307
CASE
(SUB FOR TH109050)
1шт.
0356704
HOUSING
(SUB FOR AT130571)
1шт.
11
JD9480
BALL BEARING
(SUB FOR TH109051)
1шт.
13
0311309
BEARING RACE
(SUB FOR TH109052)
1шт.
15
0311311
SPRING
(SUB FOR TH109054)
1шт.
16
0311312
WASHER
45 X 54 X 1 MM (1.772" X 2.126" X 0.039") (SUB FOR TH109055)
1шт.
23
0311316
SNAP RING
(SUB FOR TH109059)
1шт.
24
0311317
SNAP RING
(SUB FOR TH109060)
1шт.
0329616
SNAP RING
(SUB FOR TH110270)
1шт.
28
PLUG
1шт.
29
0251311
SEAL
(SUB FOR TH109063)
1шт.
30
0311320
O-RING
(SUB FOR TH109064)
1шт.
31
AT264319
O-RING
99.400 X 3.100 MM (3.913" X 0.122") (SUB FOR TH100084, T110447)
1шт.
CH17447
PACKING
(SUB FOR TH111724)
1шт.
36
0311321
PISTON
(SUB FOR TH109065)
1шт.
37
0311322
BUSHING
(SUB FOR TH109066)
1шт.
38
0311323
PLATE
(SUB FOR TH109067)
3шт.
39
0311324
PLATE
(SUB FOR TH109068)
3шт.
42
0224924
O-RING
(SUB FOR TH105729)
1шт.
43
4S00218
O-RING
( 0310017 NO LONGER AVAILABLE) (SUB FOR TH109070)
1шт.
CH17167
O-RING
9.800 X 1.900 MM (0.386" X 0.075")
1шт.
Выбрано товаров: 38
