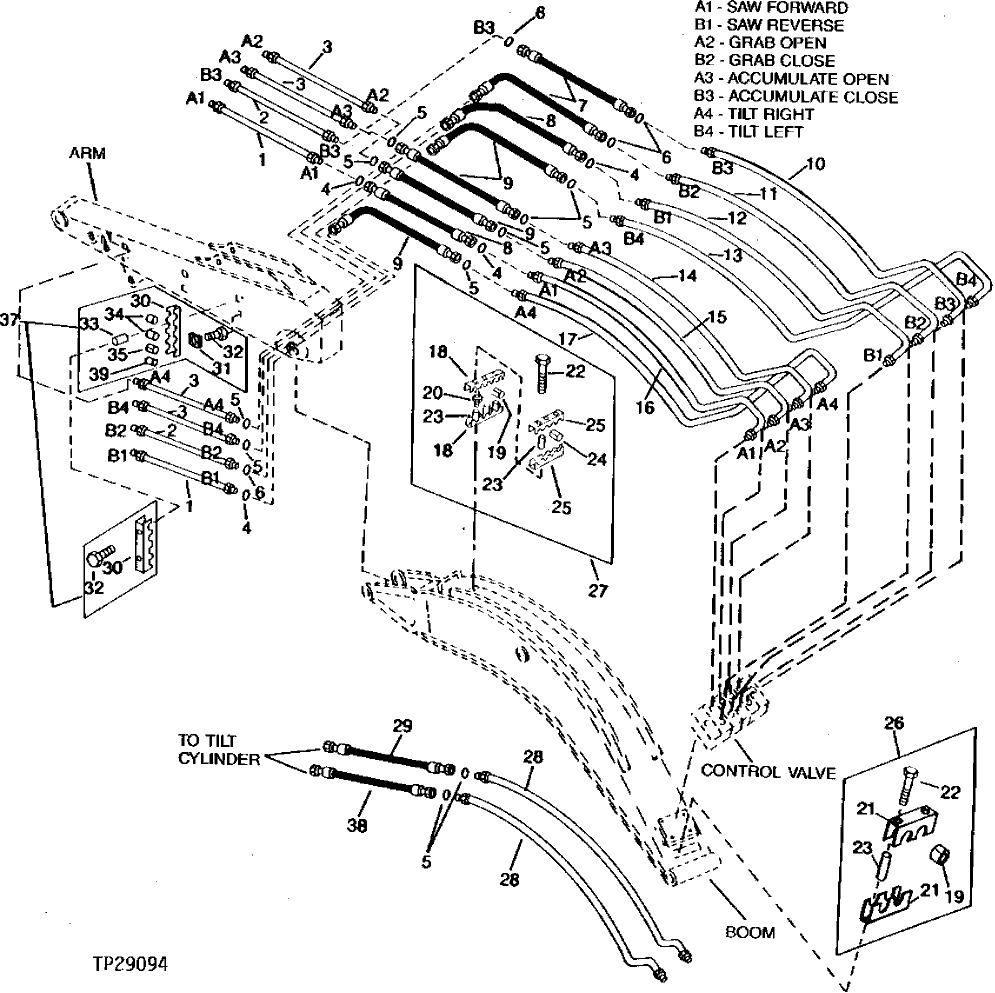

Запчасти John Deere 90D 106 - BOOM AND ARM HOSES, LINES AND FITTINGS 3360 - EXCAVATOR 33

1

AT108541

OIL LINE

2шт.

2

AT108542

OIL LINE

2шт.

3

AT108543

OIL LINE

4шт.

4

T76938

O-RING

23.520 X 1.780 MM (0.926" X 0.070")

4шт.

5

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070")

10шт.

6

T77858

O-RING

18.770 X 1.780 MM (0.739" X 0.070")

4шт.

7

AT108540

HYDRAULIC HOSE

2шт.

8

AT108539

HYDRAULIC HOSE

2шт.

9

AT108538

HYDRAULIC HOSE

4шт.

10

AT108530

OIL LINE

1шт.

11

AT108531

OIL LINE

1шт.

12

AT108532

OIL LINE

1шт.

13

AT108533

OIL LINE

1шт.

14

AT108534

OIL LINE

1шт.

15

AT108535

OIL LINE

1шт.

16

AT108536

OIL LINE

1шт.

17

AT108537

OIL LINE

1шт.

18

CLAMP

( AT108496 NO LONGER AVAILABLE)

8шт.

19

AT108517

GROMMET

(1/2 INCH I.D. HOSE)

26шт.

20

AT108505

STUD

12шт.

21

AT108524

CLAMP

2шт.

22

19H2664

CAP SCREW

5/16" X 3/4"

14шт.

23

AT108515

SPACER

26шт.

24

AT108503

GROMMET

(3/4 INCH I.D. HOSE)

8шт.

25

AT108504

CLAMP

8шт.

26

CLAMP

( AT108372 NO LONGER AVAILABLE)

1шт.

27

AT108545

CLAMP

4шт.

28

AT108547

OIL LINE

2шт.

29

AT108548

HYDRAULIC HOSE

HEAD END OF TILT CYLINDER

1шт.

30

AT108499

CLAMP

12шт.

31

AT108501

PLATE

12шт.

32

19H2664

CAP SCREW

5/16" X 3/4"

24шт.

33

AT108515

SPACER

12шт.

34

AT108497

GROMMET

(1/2 INCH I.D. TUBE)

12шт.

35

AT108522

GROMMET

(3/4 INCH I.D. TUBE)

6шт.

37

AT108544

CLAMP

6шт.

38

AT108521

STRUCTURAL TUBING

ROD END OF TILT CYLINDER

1шт.

39

AT108523

GROMMET

(1.00 IN. I.D. TUBE)

6шт.
