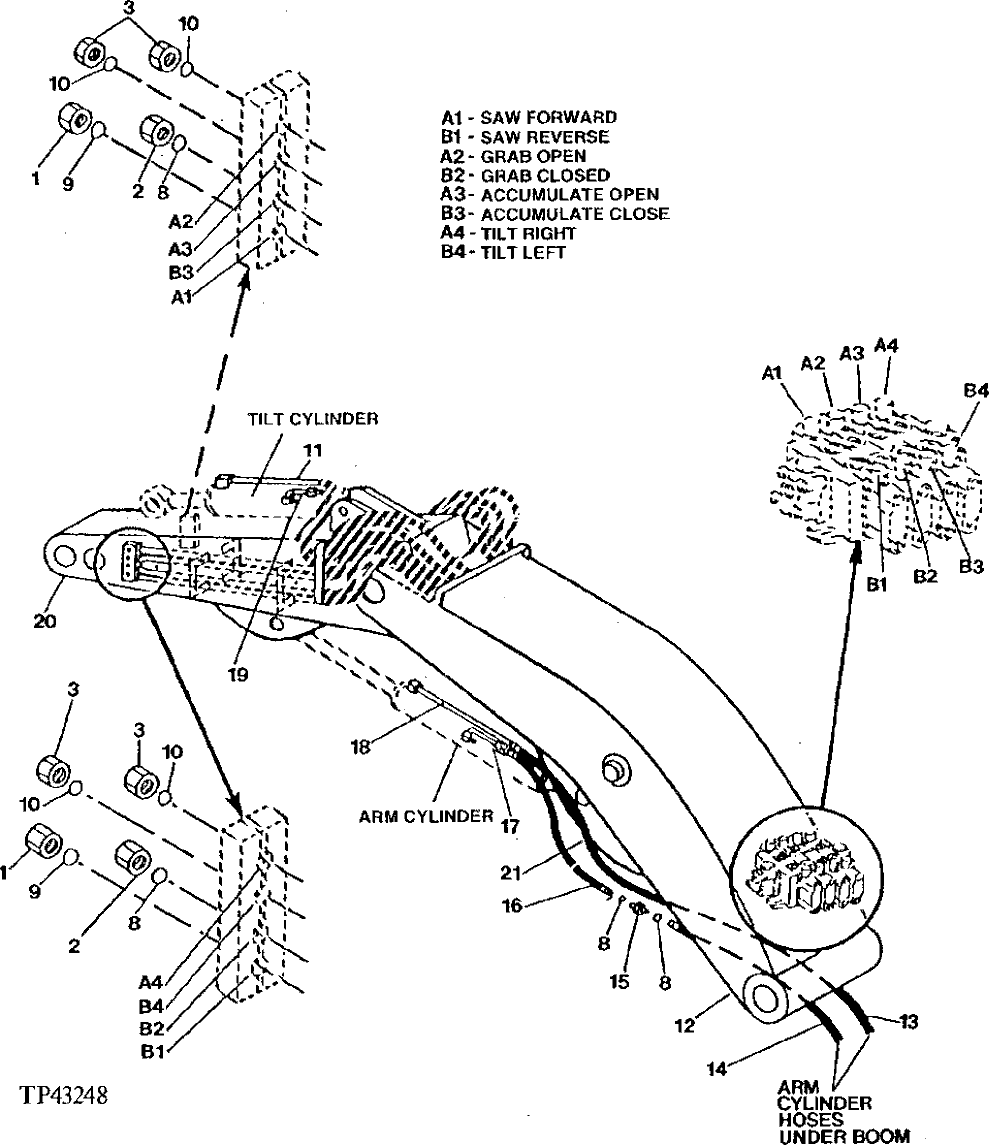

Запчасти John Deere 90D 104 - BOOM AND ARM HOSES, LINES AND FITTINGS 3360 - EXCAVATOR 33

1

38H1419

FITTING

2шт.

2

38H1418

FITTING

2шт.

3

38H1416

FITTING

4шт.

8

T77858

O-RING

18.770 X 1.780 MM (0.739" X 0.070")

4шт.

9

T76938

O-RING

23.520 X 1.780 MM (0.926" X 0.070")

2шт.

10

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070")

4шт.

11

AT131313

OIL LINE

1шт.

12

84086

MAIN BOOM

(B)

1шт.

13

TH108338

HOSE

(SUB FOR AT108510)

1шт.

14

TH108339

HOSE

(SUB FOR AT108511)

1шт.

15

38H1272

UNION FITTING

2шт.

16

AT108519

HYDRAULIC HOSE - FABRICATE

1-3/16" X 3 251 MM (128") X 1-3/16"

1шт.

17

AT131314

OIL LINE

1шт.

18

AT131315

OIL LINE

1шт.

19

AT131316

OIL LINE

1шт.

20

ARM

(B) (SUB 84090A)

1шт.

84090A

ARM

(B)

1шт.

21

AT130925

HOSE

1-3/16" X 3 658 MM (144") X 1-3/16"

1шт.
