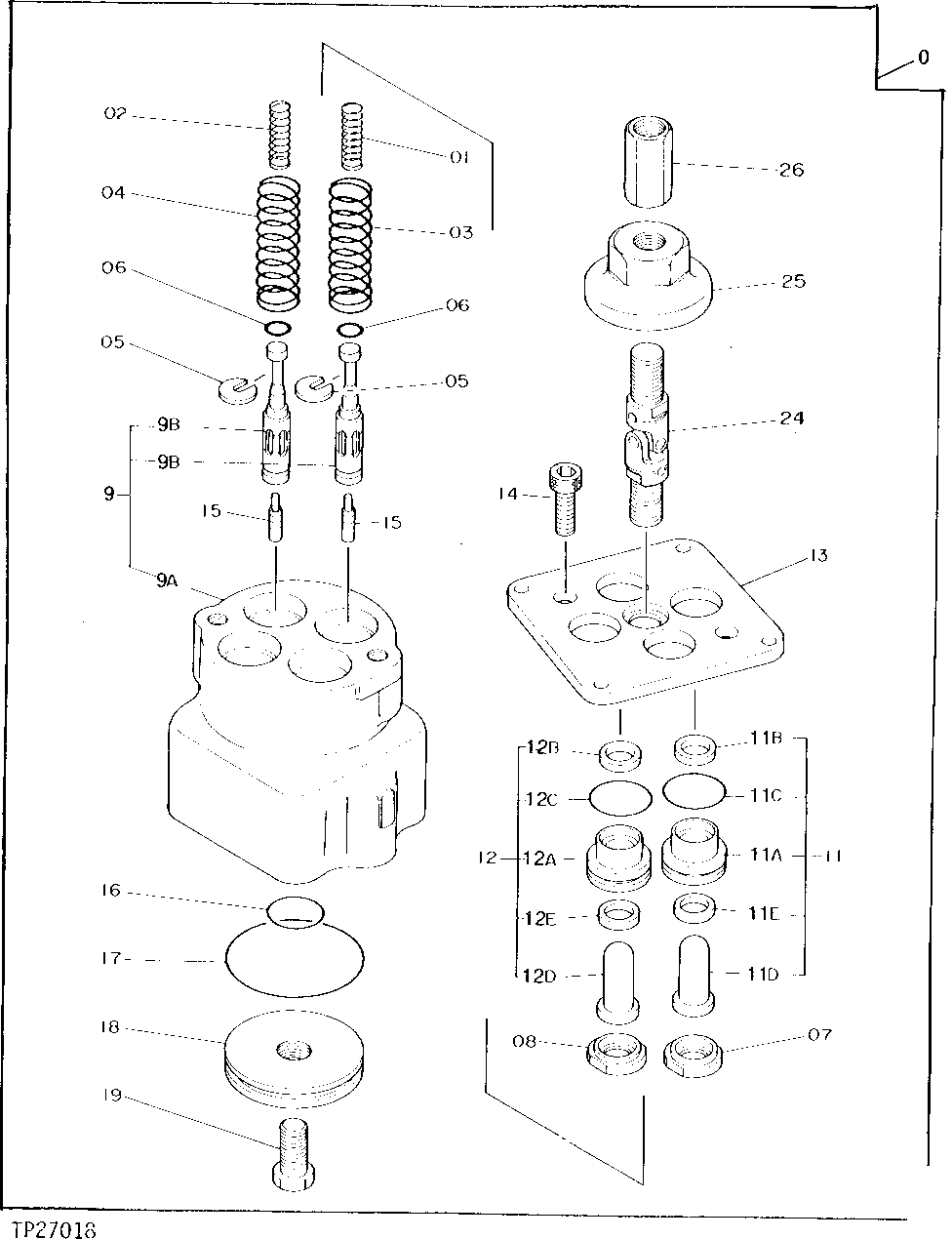

Запчасти John Deere 90D 94 - HAND PILOT VALVE 3360 - EXCAVATOR 33

0

AT189840

HYD/PILOT CNTL VALVE REMAN

(USE AT131277 IF AVAILABLE) ( TH111710, TH108366, OR AT130916 NO LONGER AVAILABLE) (SUB FOR AT131277)

1шт.

1

4201915

SPRING

(SUB FOR TH109212)

2шт.

2

4166686

COMPRESSION SPRING

(SUB FOR TH109213)

2шт.

3

4195421

COMPRESSION SPRING

(SUB FOR TH109214)

2шт.

4

4186544

COMPRESSION SPRING

(SUB FOR TH109215)

2шт.

5

4177777

SPACER

(SUB FOR TH109216)

4шт.

6

4173208

SHIM

(SUB FOR TH109217)

20шт.

7

4179257

GUIDE

(SUB FOR TH109219) (PORTS 1 AND 3)

2шт.

8

4177896

GUIDE

(SUB FOR TH109218) (PORTS 2 AND 4)

2шт.

9

CASE

( TH109211 NO LONGER AVAILABLE)

1шт.

9A

CASE

(NOT AVAILABLE FOR SERVICE)

1шт.

9B

SPOOL

(NOT AVAILABLE FOR SERVICE)

4шт.

11

ROD

(SUB (2) 9104359, (2) 9104360 AND 4284175)

2шт.

ROD

(SUB (2) 9104359, (2) 9104360 AND 4284175) ( TH109220 NO LONGER AVAILABLE)

2шт.

PLUNGER

(SUB (2) 9104360, (2) 9104359 AND 4284175) ( 9089809 NO LONGER AVAILABLE)

2шт.

11A

BUSHING

( TH109221 NO LONGER AVAILABLE)

1шт.

BUSHING

1шт.

11B

4240150

SEAL

(SUB FOR TH109222) (SUB FOR TH111960)

1шт.

11C

U46166

O-RING

24.400 X 3.100 MM (0.961" X 0.122") (SUB FOR TH103946)

1шт.

11D

PUSH ROD

1шт.

11E

SEAL

(SUB TH109224)

1шт.

4240151

SEAL

(SUB FOR TH109224)

1шт.

12

ROD

(SUB (2) 9104359, (2) 9104360 AND 4284175)

2шт.

ROD

(SUB (2) 9104359, (2) 9104360 AND 4284175) ( TH109225 NO LONGER AVAILABLE)

2шт.

PLUNGER

(SUB (2) 9104359, (2) 9104360 AND 4284175) ( 9089808 NO LONGER AVAILABLE)

2шт.

12A

BUSHING

( TH109221 NO LONGER AVAILABLE)

1шт.

BUSHING

1шт.

12B

4240150

SEAL

(SUB FOR TH109222) (SUB FOR TH111960)

1шт.

12C

U46166

O-RING

24.400 X 3.100 MM (0.961" X 0.122") (SUB FOR TH103946)

1шт.

12D

PUSH ROD

1шт.

12E

SEAL

(SUB TH109224)

1шт.

4240151

SEAL

(SUB FOR TH109224)

1шт.

13

PLATE

( 4184930 NO LONGER AVAILABLE) (SUB 4284175, ALONG WITH (2) 9104359 AND (2) 9104360)

1шт.

14

19M8440

SCREW

M10 X 25

2шт.

15

4184929

PISTON

(SUB FOR TH109228)

4шт.

16

CH11562

O-RING

(SUB FOR TH102676)

1шт.

17

CH11571

PACKING

(SUB FOR TH102358)

1шт.

18

4184954

PLATE

(SUB FOR TH109229)

1шт.

19

19M8168

SCREW

M12 X 25

1шт.

24

4285209

UNIVERSAL JOINT

(SUB FOR TH109230)

1шт.

25

4184931

CAM

(SUB FOR TH109231)

1шт.

26

4182067

JOINTER

(SUB FOR TH109232)

1шт.
