Запчасти John Deere 90D 76 - FORESTRY ARM ATTACHED CONTROL VALVE 3360 - EXCAVATOR 33

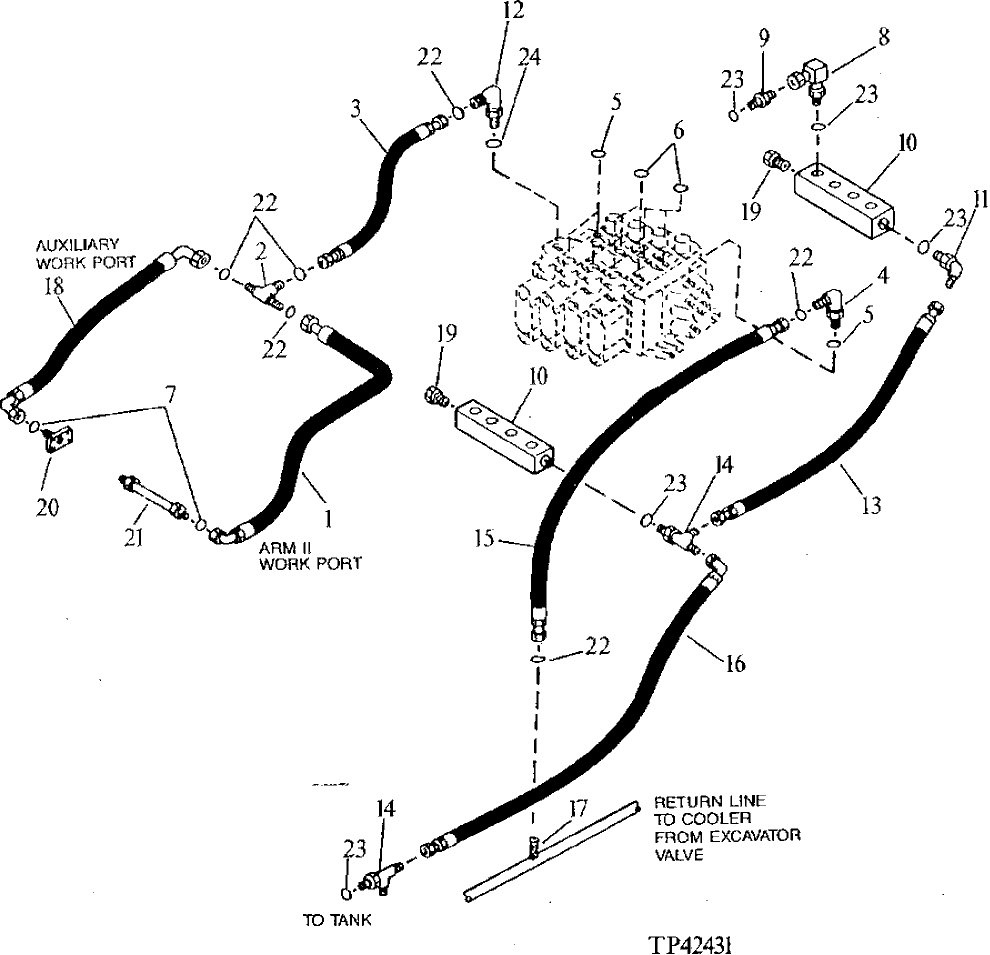

Схема запчастей John Deere 90D - 76 - FORESTRY ARM ATTACHED CONTROL VALVE 3360 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

1

AT108550

HYDRAULIC HOSE

1шт.

2

38H1209

TEE FITTING

1шт.

3

AT108500

HYDRAULIC HOSE - FABRICATE

1-7/16" X 762 MM (30") X 1-7/16"

1шт.

4

38H1325

ELBOW FITTING

1шт.

5

R29936

O-RING

29.743 X 2.946 MM (1.171" X 0.116")

3шт.

6

U12547

O-RING

23.470 X 2.946 MM (0.924" X 0.116")

6шт.

7

T77858

O-RING

18.770 X 1.780 MM (0.739" X 0.070")

2шт.

8

AT108367

ADAPTER FITTING

8шт.

9

AT108370

ADAPTER FITTING

8шт.

10

AT108371

MANIFOLD

2шт.

11

AT35121

ELBOW FITTING

1шт.

12

38H1037

ELBOW FITTING

1шт.

13

AT108476

HYDRAULIC HOSE - FABRICATE

9/16" X 635 MM (25") X 9/16"

1шт.

14

AT37518

TEE FITTING

2шт.

15

AT108498

HYDRAULIC HOSE - FABRICATE

1-7/16" X 1 461 MM (57-1/2") X 1-7/16"

1шт.

16

AT108477

HYDRAULIC HOSE - FABRICATE

9/16" X 1 600 MM (63") X 9/16"

1шт.

17

AT108492

STRUCTURAL TUBING

1шт.

18

AT108549

HYDRAULIC HOSE

1шт.

19

R55233

PIPE PLUG

6.350 MM (1/4")

2шт.

20

AT108389

ADAPTER FITTING

1шт.

21

AT108373

FITTING

1шт.

22

T76938

O-RING

23.520 X 1.780 MM (0.926" X 0.070")

6шт.

23

T70177

O-RING

11.887 X 1.981 MM (0.468" X 5/64")

19шт.

24

U13639

O-RING

37.465 X 2.997 MM (1.475" X 0.118")

1шт.

Выбрано товаров: 24
