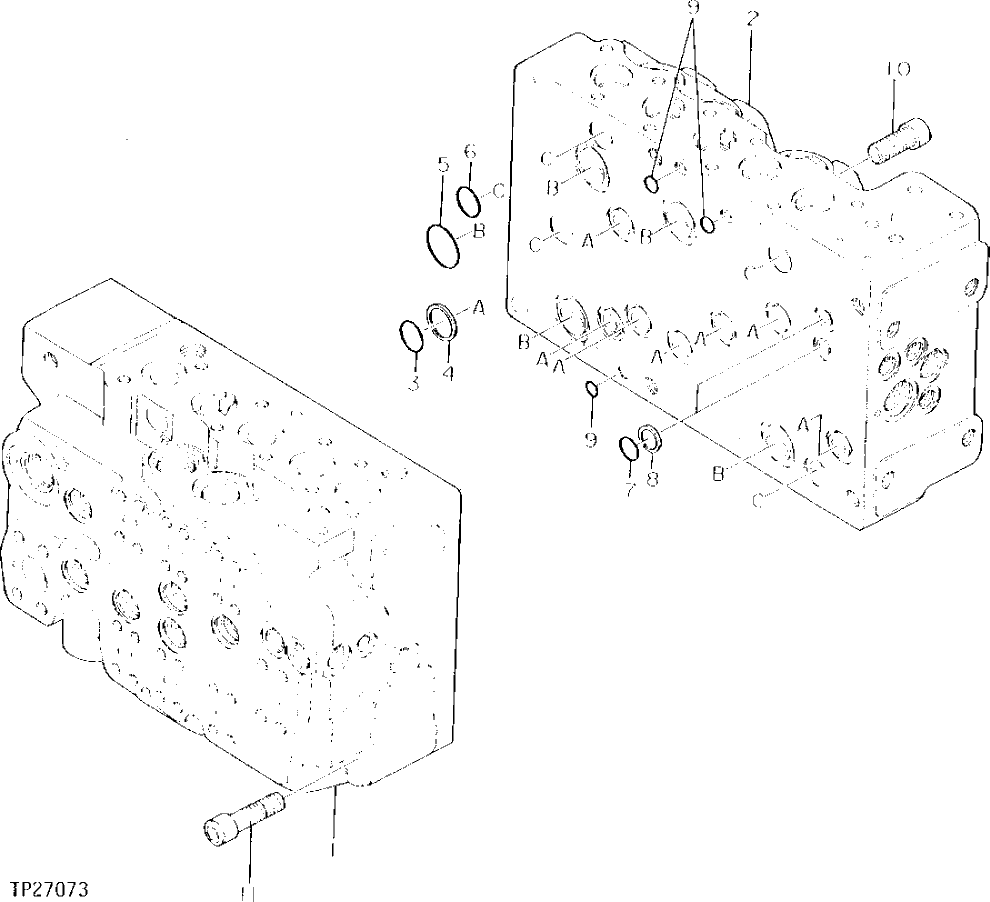

Запчасти John Deere 90D 70 - CONTROL VALVE 3360 - EXCAVATOR 33

0

4224897

HYD ACTUATED CONTROL VALVE

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGES) (SUB FOR TH108295, TH111889, AT186093 AND 4271412EX)

1шт.

1

HOUSING

1шт.

2

HOUSING

1шт.

3

985099

O-RING

20.800 X 2.400 MM (0.819" X 0.094") (SUB FOR TH101479)

7шт.

4

0309401

BACK-UP RING

(SUB FOR TH109140)

7шт.

5

0309402

O-RING

29.700 X 2.400 MM (1.169" X 0.094") (SUB FOR TH109141)

4шт.

6

4S00734

O-RING

(SUB FOR TH103574 OR AT264354, 0976602)

4шт.

7

CH11570

O-RING

2шт.

8

0309403

BACK-UP RING

(SUB FOR TH109142)

2шт.

9

CH11568

PACKING

3шт.

10

19M8531

SCREW

M14 X 35, (SUB FOR TH109143)

3шт.

11

19M8712

SCREW

M14 X 50, (SUB FOR TH109144)

6шт.
