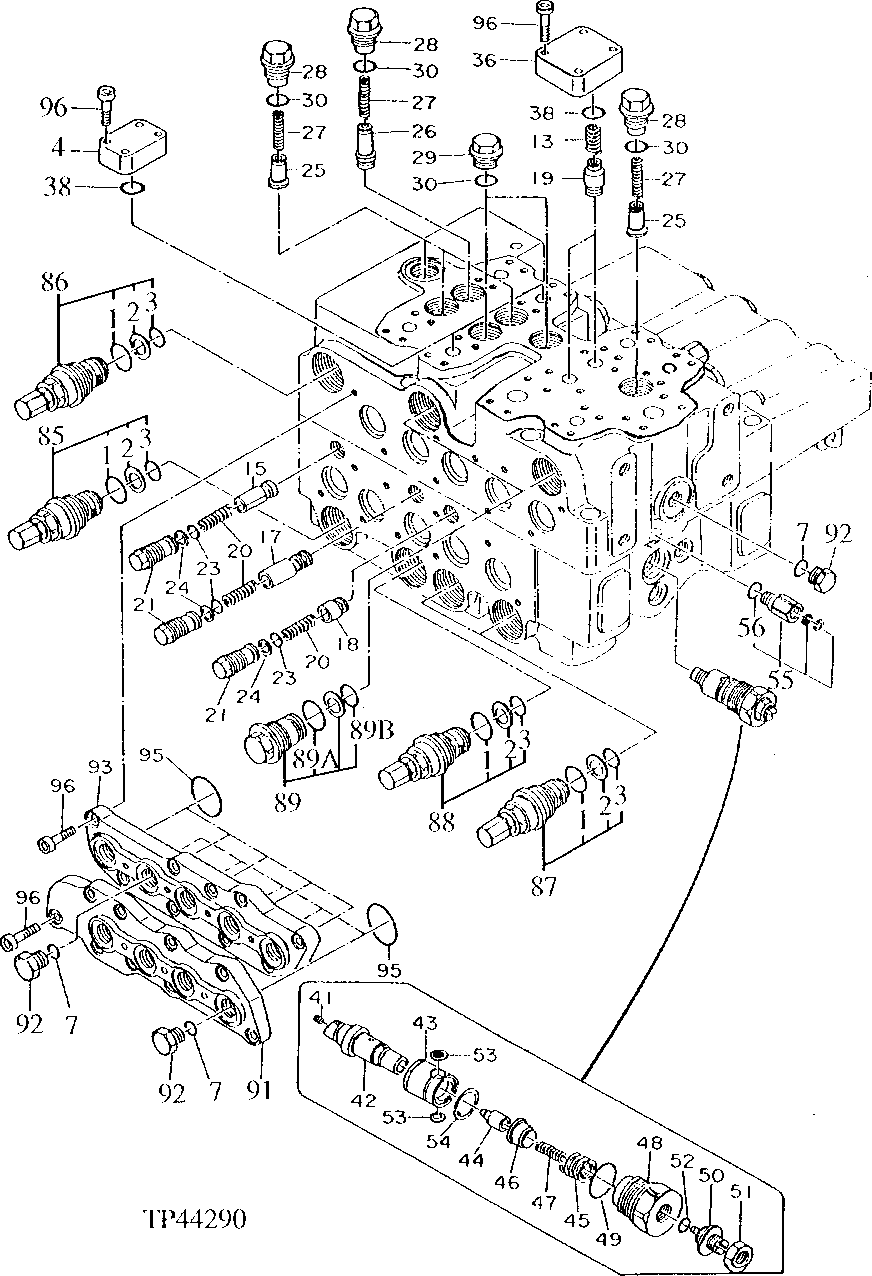

Запчасти John Deere 90D 64 - CONTROL VALVE 3360 - EXCAVATOR 33

0

4224897

HYD ACTUATED CONTROL VALVE

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES) (SUB FOR TH111889, AT186093, TH108295 AND 4271412EX)

1шт.

51

2046464

NUT

(SUB FOR TH109179 AND 0309439)

1шт.

52

CH17167

O-RING

9.800 X 1.900 MM (0.386" X 0.075") (SUB FOR TH109180)

1шт.

53

0328505

FILTER

(SUB FOR AT128046)

2шт.

54

0328504

SNAP RING

(SUB FOR AT128045)

1шт.

55

9202621

ADAPTER FITTING

(SUB FOR 0328506, AT128047)

1шт.

56

M800650

PACKING

1шт.

85

0357602

PRESSURE RELIEF VALVE

(SUB FOR TH109197 OR AT128068) (DIG RELIEF)

1шт.

86

0309470

PRESSURE RELIEF VALVE

(PROPEL RELIEF) (SUB FOR TH109198 OR TH111983)

1шт.

0357603

PRESSURE RELIEF VALVE

(SUB FOR AT128069) (PROPEL RELIEF)

1шт.

87

9202625

FLOW CONTROL HYD. VALVE

(SUB FOR TH109199 OR AT128070 OR AT128356) (SUB FOR 4265364) (ARM II HEAD END AND BOOM I HEAD END)

2шт.

88

9202625

FLOW CONTROL HYD. VALVE

(SUB FOR AT128070 OR AT128356) (SUB FOR 4265364) (BUCKET HEAD END)

1шт.

4265365

PRESSURE RELIEF VALVE

(SUB FOR AT128070 OR AT128357)

1шт.

89

0309461

PLUG

(SUB FOR TH109201)

2шт.

89A

AT264347

O-RING

(SUB FOR TH100136, 4506428)

1шт.

89B

CH12329

PACKING

1шт.

91

0309450

HOUSING

(SUB FOR TH109190)

1шт.

92

0218608

DRAIN PLUG

(SUB FOR TH109203) (SUB FOR TH110243)

3шт.

93

0309452

HOUSING

(SUB FOR TH109192)

1шт.

95

4S00101

O-RING

(SUB FOR (10) TH109194)

10шт.

96

0309455

SCREW

(SUB FOR TH109195)

30шт.
