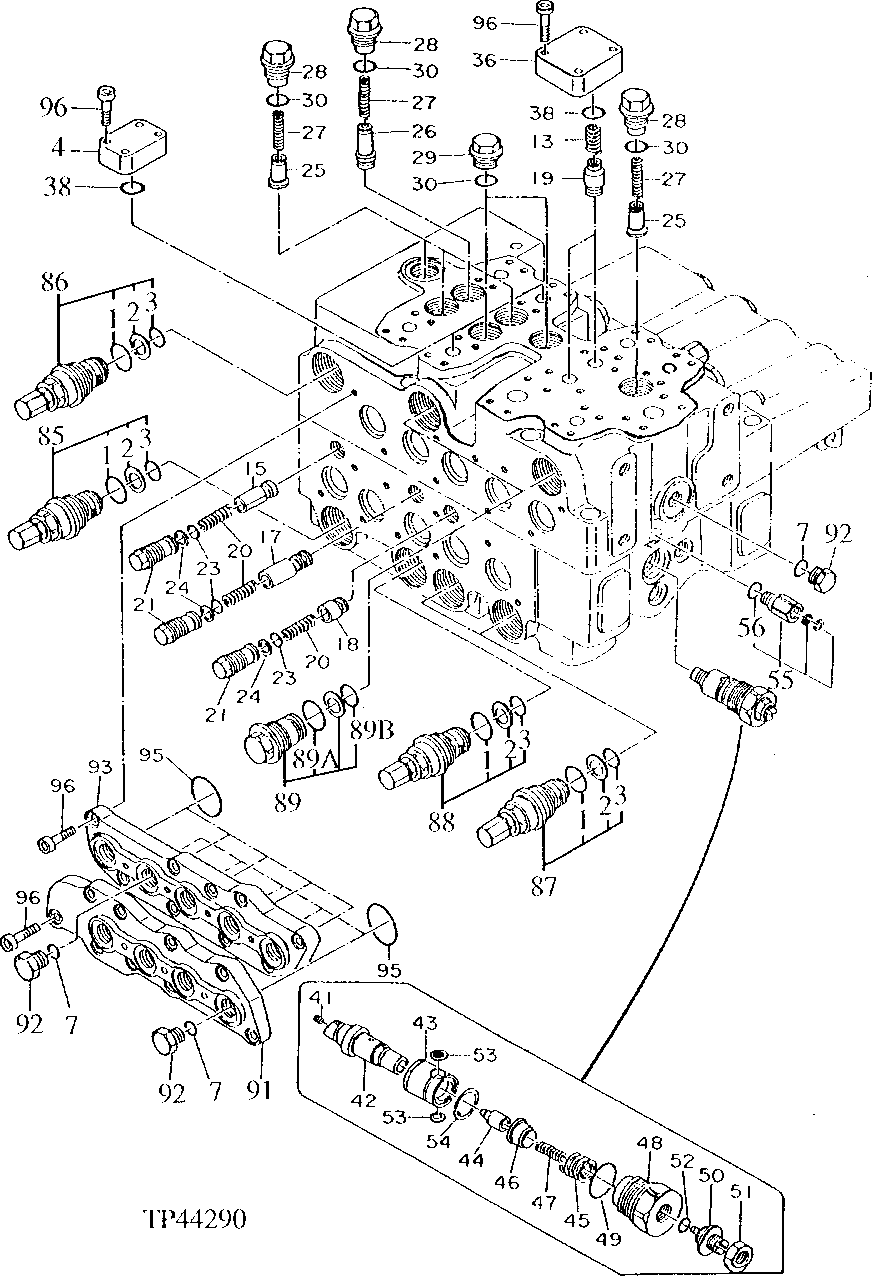

Запчасти John Deere 90D 62 - CONTROL VALVE 3360 - EXCAVATOR 33

0

4224897

HYD ACTUATED CONTROL VALVE

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES) (SUB FOR TH108295, TH111889, AT186093 AND 4271412EX)

1шт.

1

AT264347

O-RING

(SUB FOR TH100136, 4506428)

1шт.

2

4027959

BACK-UP RING

(SUB FOR AT134327) (SUB FOR TH100771)

1шт.

3

CH12329

PACKING

1шт.

4

0309464

PLATE

(SUB FOR TH109204)

2шт.

7

CH11570

O-RING

3шт.

13

0309406

SPRING

(SUB FOR TH109145)

2шт.

15

0309408

FLOW CONTROL HYD. VALVE

(SUB FOR TH109147)

1шт.

17

0309410

FLOW CONTROL HYD. VALVE

(SUB FOR TH109149)

1шт.

18

0309411

FLOW CONTROL HYD. VALVE

(SUB FOR TH109150)

1шт.

19

0309412

FLOW CONTROL HYD. VALVE

(SUB FOR TH109151)

2шт.

20

0309413

SPRING

(SUB FOR TH109152)

3шт.

21

0357606

FITTING PLUG

(SUB FOR TH109153)

3шт.

23

CH10568

PACKING

(SUB FOR TH102668)

3шт.

24

0309416

BACK-UP RING

(SUB FOR TH109155)

3шт.

25

0309417

FLOW CONTROL HYD. VALVE

(SUB FOR TH109156)

4шт.

26

0309418

FLOW CONTROL HYD. VALVE

(SUB FOR TH109157)

1шт.

27

0309419

SPRING

(SUB FOR TH109158)

5шт.

28

0309420

ADAPTER FITTING

(SUB FOR TH109159)

5шт.

29

R27474

DRAIN PLUG

(SUB FOR TH109160)

2шт.

30

R47151

O-RING

19.177 X 2.464 MM (0.755" X 0.097") (SUB FOR TH109161)

7шт.

36

0309502

PLATE

(SUB FOR TH109167)

1шт.

0328507

PLATE

(SUB FOR AT128072)

1шт.

38

CH12329

PACKING

(SUB FOR TH100770)

4шт.

41

22M7152

SET SCREW

M4 X 4, (SUB FOR TH109169)

1шт.

42

0309431

FLOW CONTROL HYD. VALVE

(SUB FOR TH109170)

1шт.

43

2046851

BUSHING

(SUB FOR TH109171, 0309432 OR 2046851)

1шт.

2046851

BUSHING

(SUB FOR AT128044 OR 0328503)

1шт.

44

0309433

FLOW CONTROL HYD. VALVE

(SUB FOR TH109172)

1шт.

45

0309434

SPRING

(SUB FOR TH109173)

1шт.

46

0309435

VALVE SEAT

(SUB FOR TH109174)

1шт.

47

0309436

SPRING

(SUB FOR TH109175)

1шт.

48

0309437

ADAPTER FITTING

(SUB FOR TH109177)

1шт.

49

R56751

O-RING

23.470 X 2.946 MM (0.924" X 0.116") (SUB FOR TH100741)

1шт.

50

0309438

SCREW

(SUB FOR TH109178)

1шт.
