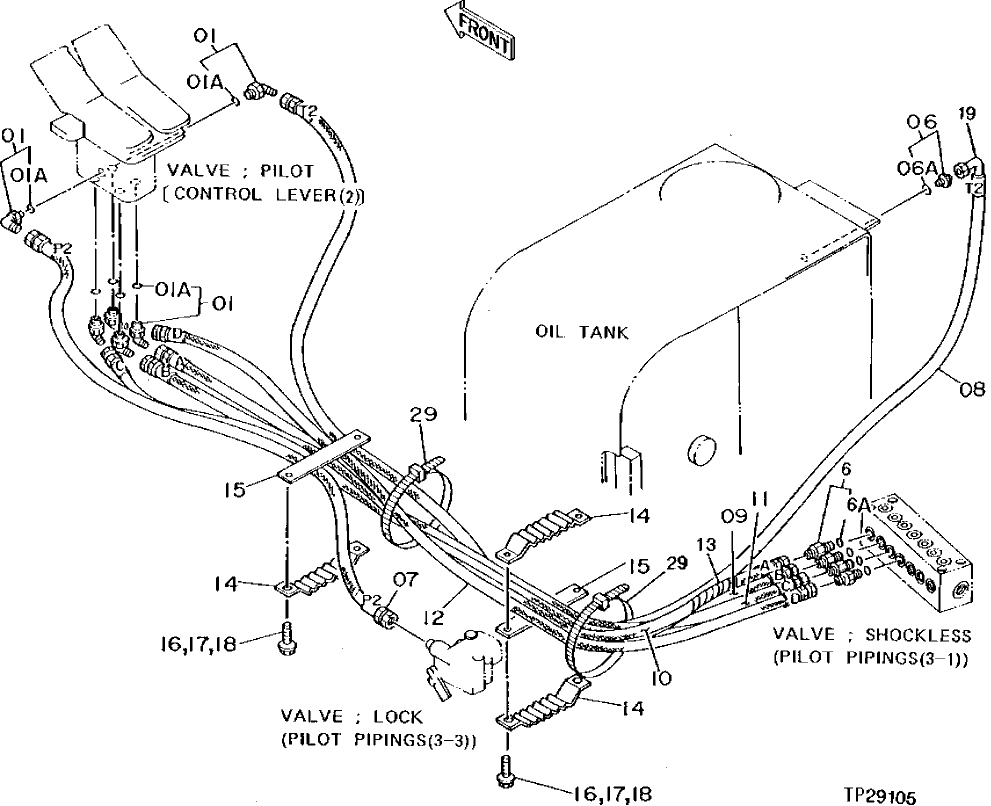

Запчасти John Deere 90D 42 - PILOT PIPINGS 3360 - EXCAVATOR 33

1

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

6шт.

1A

M800650

PACKING

1шт.

6

4200466

ADAPTER FITTING

(SUB FOR TH108320)

5шт.

6A

CH11570

O-RING

5шт.

7

AT57860

HYDRAULIC HOSE - FABRICATE

9/16" X 1 016 MM (40") X 9/16", (SUB FOR TH108463) (P2)

1шт.

8

AH89075

HYDRAULIC HOSE - FABRICATE

9/16" X 2 743 MM (108") X 9/16", (T2) (SUB FOR 4203020 ALONG WITH AE24616)

1шт.

9

AH83490

HYDRAULIC HOSE

9/16" X 1 702 MM (67") X 9/16", (SUB FOR TH108465) (B)

1шт.

10

AH83490

HYDRAULIC HOSE

9/16" X 1 702 MM (67") X 9/16", (SUB FOR TH108466) (A)

1шт.

11

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (SUB FOR TH108467 OR AH99310, THIS APPLICATION) (C)

1шт.

12

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (D)

1шт.

13

E90991

HOSE GUARD

(SUB FOR TH106022, 4133527 OR 4327293)

1шт.

14

9727639

HOSE CLAMP

(SUB FOR TH108456)

3шт.

15

9727637

PLATE

(SUB FOR TH108457)

2шт.

16

19M7550

CAP SCREW

M10 X 35

4шт.

17

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

18

12M7066

LOCK WASHER

10 MM

4шт.

19

AE24616

ELBOW FITTING

1шт.

29

H77698

TIE BAND

(SUB FOR TH106422)

2шт.
