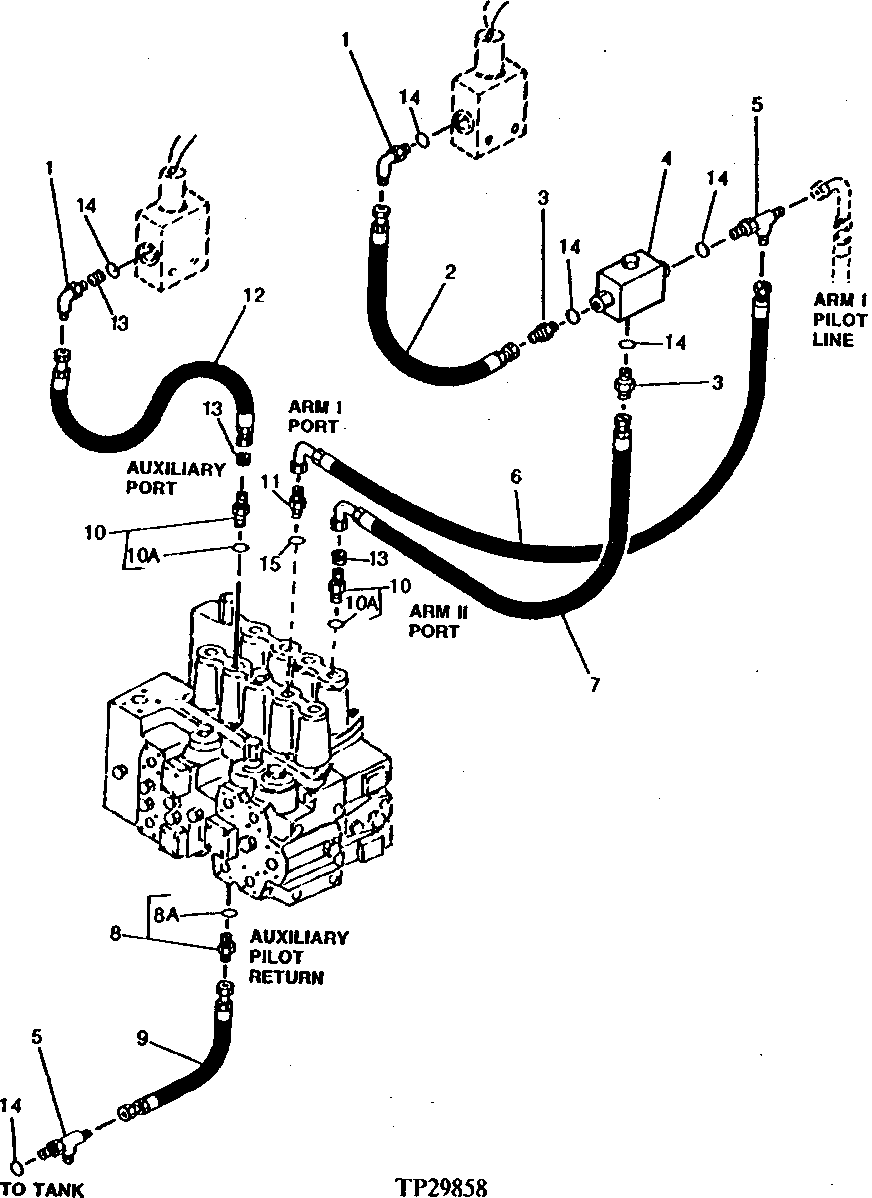

Запчасти John Deere 90D 40 - PILOT HOSES, FITTINGS AND SHUTTLE VALVE 3360 - EXCAVATOR 33

1

AT35121

ELBOW FITTING

2шт.

2

AT108463

HYDRAULIC HOSE - FABRICATE

9/16" X 686 MM (27") X 9/16"

1шт.

3

R27212

FITTING

2шт.

4

AH91325

CHECK VALVE

1шт.

5

AT37518

TEE FITTING

2шт.

6

AT108464

HYDRAULIC HOSE - FABRICATE

9/16" X 267 MM (10-1/2") X 9/16"

1шт.

7

AT108465

HYDRAULIC HOSE - FABRICATE

9/16" X 210 MM (8-1/4") X 9/16"

1шт.

8

4200466

ADAPTER FITTING

(SUB FOR TH108320)

1шт.

8A

CH11570

O-RING

1шт.

9

AT108482

HYDRAULIC HOSE - FABRICATE

9/16" X 1 524 MM (60") X 9/16"

1шт.

10

4202422

ADAPTER FITTING

(SUB FOR TH108440)

2шт.

10A

CH11570

O-RING

1шт.

11

AT108366

ADAPTER FITTING

1шт.

12

AT108400

HYDRAULIC HOSE

1шт.

13

T84317

ORIFICE

3шт.

14

T70177

O-RING

11.887 X 1.981 MM (0.468" X 5/64")

6шт.

15

CH11570

O-RING

1шт.
