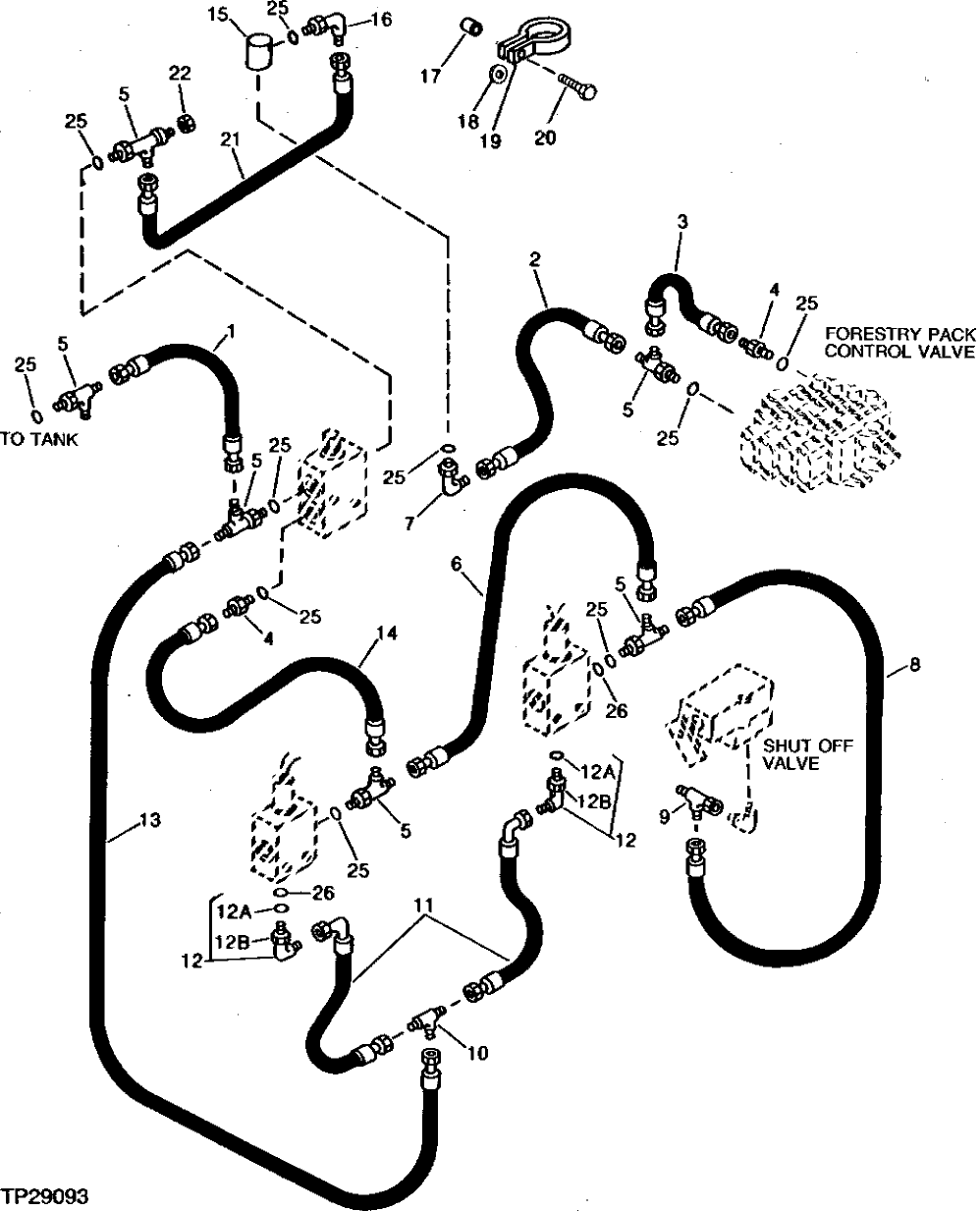

Запчасти John Deere 90D 36 - PILOT HOSES AND FITTINGS 3360 - EXCAVATOR 33

1

AT108455

HYDRAULIC HOSE - FABRICATE

9/16" X 1 118 MM (44") X 9/16"

1шт.

2

AT108456

HYDRAULIC HOSE - FABRICATE

9/16" X 1 321 MM (52") X 9/16"

1шт.

3

AT108476

HYDRAULIC HOSE - FABRICATE

9/16" X 635 MM (25") X 9/16"

1шт.

4

R27212

FITTING

3шт.

5

AT37518

TEE FITTING

6шт.

6

AT108459

HYDRAULIC HOSE - FABRICATE

9/16" X 483 MM (19") X 9/16"

1шт.

7

AT35121

ELBOW FITTING

1шт.

8

AT108460

HYDRAULIC HOSE - FABRICATE

9/16" X 2 743 MM (108") X 9/16"

1шт.

9

AT36921

TEE FITTING

1шт.

10

T20926

TEE FITTING

1шт.

11

AT108461

HYDRAULIC HOSE - FABRICATE

9/16" X 216 MM (8-1/2") X 9/16"

2шт.

12

AR31674

FITTING

2шт.

12A

R27449

WASHER

16.612 X 25.400 X 0.914 MM (0.654" X 1" X 0.036")

1шт.

12B

R27448

NUT

19.050 MM (3/4")

1шт.

13

AT108458

HYDRAULIC HOSE - FABRICATE

9/16" X 381 MM (15") X 9/16"

1шт.

14

AT108457

HYDRAULIC HOSE - FABRICATE

9/16" X 406 MM (16") X 9/16"

1шт.

15

AT115276

HYDRAULIC FILTER

1шт.

16

AT35121

ELBOW FITTING

1шт.

17

28H1785

BUSHING

0.546" X 0.840" X 1-1/16"

1шт.

18

24H1219

WASHER

7/16" X 1" X 0.083"

1шт.

19

E63955

CLAMP

1шт.

20

19M7658

CAP SCREW

M10 X 50

1шт.

21

AT73707

HYDRAULIC HOSE - FABRICATE

9/16" X 395 MM (15-1/2") X 9/16"

1шт.

22

R39783

FITTING

1шт.

25

T70177

O-RING

11.887 X 1.981 MM (0.468" X 5/64")

ARшт.

26

R26375

O-RING

16.358 X 2.210 MM (0.644" X 0.087")

2шт.
