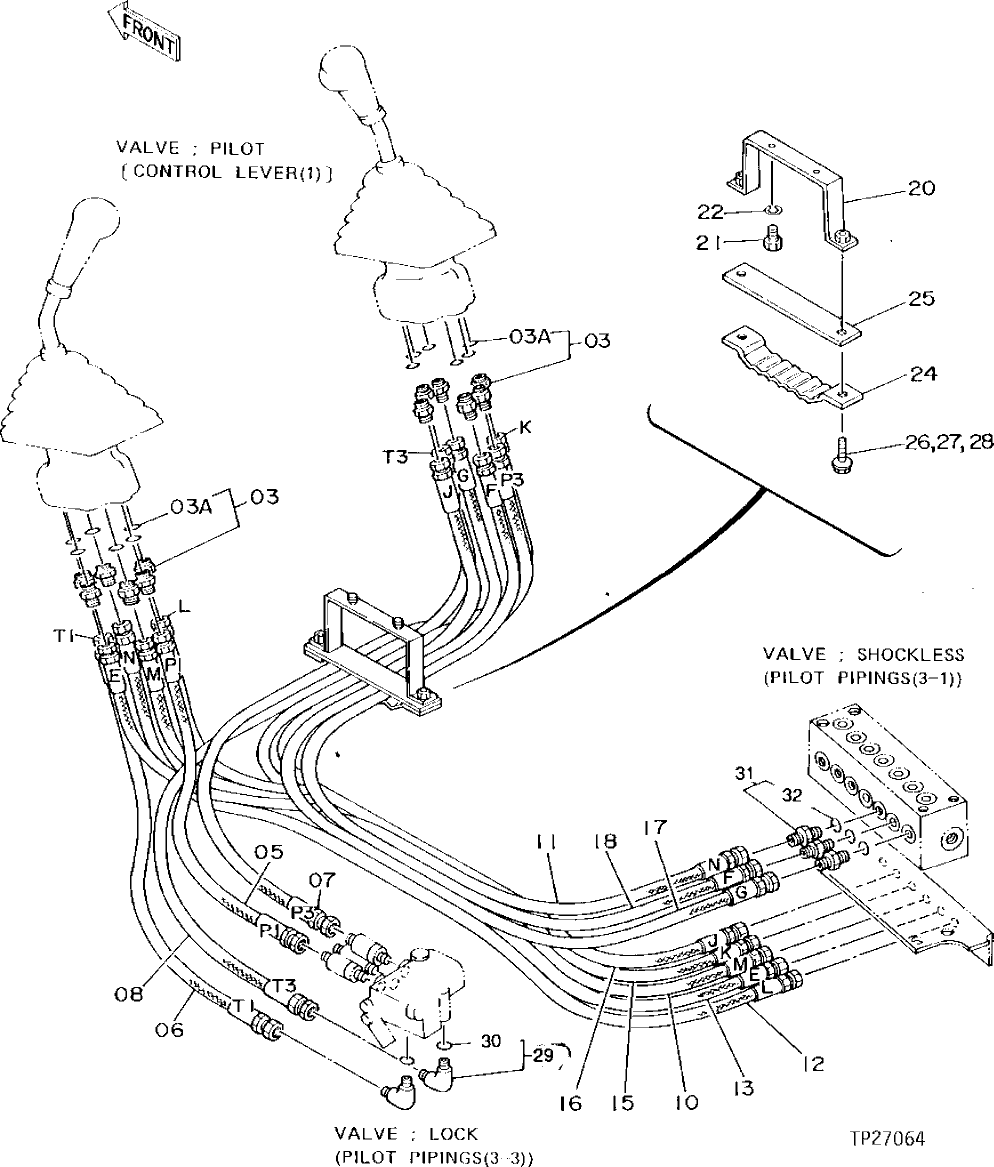

Запчасти John Deere 90D 34 - PILOT PLUMBING 3360 - EXCAVATOR 33

3

4200467

ADAPTER FITTING

(SUB FOR TH108417)

12шт.

3A

M800650

PACKING

1шт.

5

AH108250

HOSE

9/16" X 787 MM (31") X 9/16", (SUB FOR TH108470) (P1)

1шт.

6

AH108250

HOSE

9/16" X 787 MM (31") X 9/16", (SUB FOR TH108471) (T1)

1шт.

7

AT48717

HYDRAULIC HOSE - FABRICATE

9/16" X 1 131 MM (44-1/2") X 9/16", (SUB FOR TH108472) (P3)

1шт.

8

AT48717

HYDRAULIC HOSE - FABRICATE

9/16" X 1 131 MM (44-1/2") X 9/16", (SUB FOR TH108473) (T3)

1шт.

10

AH83490

HYDRAULIC HOSE

9/16" X 1 702 MM (67") X 9/16", (SUB FOR TH108474) (L)

1шт.

11

AH83490

HYDRAULIC HOSE

9/16" X 1 702 MM (67") X 9/16", (SUB FOR TH108475) (E)

1шт.

12

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (SUB FOR TH108476 OR AH99310, THIS APPLICATION) (N)

1шт.

13

AH83490

HYDRAULIC HOSE

9/16" X 1 702 MM (67") X 9/16", (SUB FOR TH108477) (M)

1шт.

15

AE42000

HYDRAULIC HOSE

9/16" X 2 000 MM (78-3/4") X 9/16", (SUB FOR TH108478) (K)

1шт.

16

AE42000

HYDRAULIC HOSE

9/16" X 2 000 MM (78-3/4") X 9/16", (SUB FOR TH108479) (J)

1шт.

17

AE42000

HYDRAULIC HOSE

9/16" X 2 000 MM (78-3/4") X 9/16", (SUB FOR TH108480) (G)

1шт.

18

AE42000

HYDRAULIC HOSE

9/16" X 2 000 MM (78-3/4") X 9/16", (SUB FOR TH108481) (F)

1шт.

20

8038404

BRACKET

(SUB FOR TH108482)

1шт.

21

19M8324

CAP SCREW

M10 X 16

2шт.

22

12M7066

LOCK WASHER

10 MM

2шт.

24

9727639

HOSE CLAMP

(SUB FOR TH108456)

1шт.

25

9727637

PLATE

(SUB FOR TH108457)

1шт.

26

19M7662

CAP SCREW

M10 X 30

2шт.

27

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

28

12M7066

LOCK WASHER

10 MM

2шт.

29

4154671

ELBOW FITTING

(SUB FOR TH101047)

2шт.

30

CH11570

O-RING

1шт.

31

4200466

ADAPTER FITTING

(SUB FOR TH108320)

3шт.

32

CH11570

O-RING

1шт.
