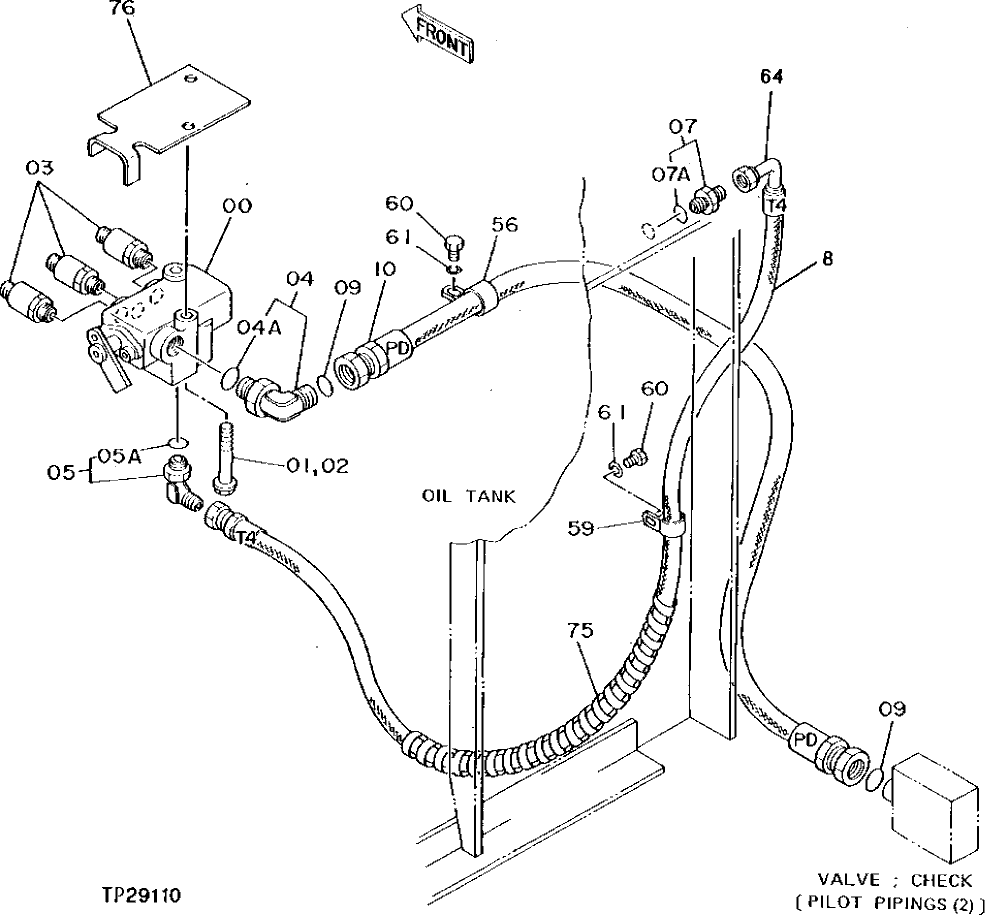

Запчасти John Deere 90D 32 - PILOT PLUMBING 3360 - EXCAVATOR 33

0

4179025

FLOW CONTROL HYD. VALVE

(SUB FOR TH108432)

1шт.

1

19M7875

CAP SCREW

M10 X 70

2шт.

19M7329

CAP SCREW

M10 X 75, (SUB FOR TH101999)

2шт.

2

12M7066

LOCK WASHER

10 MM

2шт.

3

4188687

FILTER

(SUB FOR TH108433)

3шт.

4

A853344

ELBOW FITTING

(SUB FOR TH108401, 4200580)

1шт.

4A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR TH100061) (SUB FOR U46489)

1шт.

5

4154671

ELBOW FITTING

(SUB FOR TH101047)

1шт.

5A

CH11570

O-RING

1шт.

7

4200466

ADAPTER FITTING

(SUB FOR TH108320)

1шт.

7A

CH11570

O-RING

1шт.

8

AT48422

HYDRAULIC HOSE - FABRICATE

9/16" X 1 422 MM (56") X 9/16", (T4) (SUB FOR TH108434 ALONG WITH AE24616)

1шт.

9

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070") (SUB FOR TH108323)

2шт.

10

AT145154

HYDRAULIC HOSE - FABRICATE

13/16" X 1 270 MM (50") X 13/16", (SUB FOR TH108435, AT101149 AND AT135721) (PD)

1шт.

56

T28949

CLAMP

(SUB FOR TH108458 OR 4190274)

1шт.

59

4190292

CLIP

(SUB FOR TH108321)

1шт.

60

19M8324

CAP SCREW

M10 X 16

2шт.

61

12M7066

LOCK WASHER

10 MM

2шт.

64

AE24616

ELBOW FITTING

1шт.

75

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

76

4218688

STOP

(SUB FOR TH110769)

1шт.
