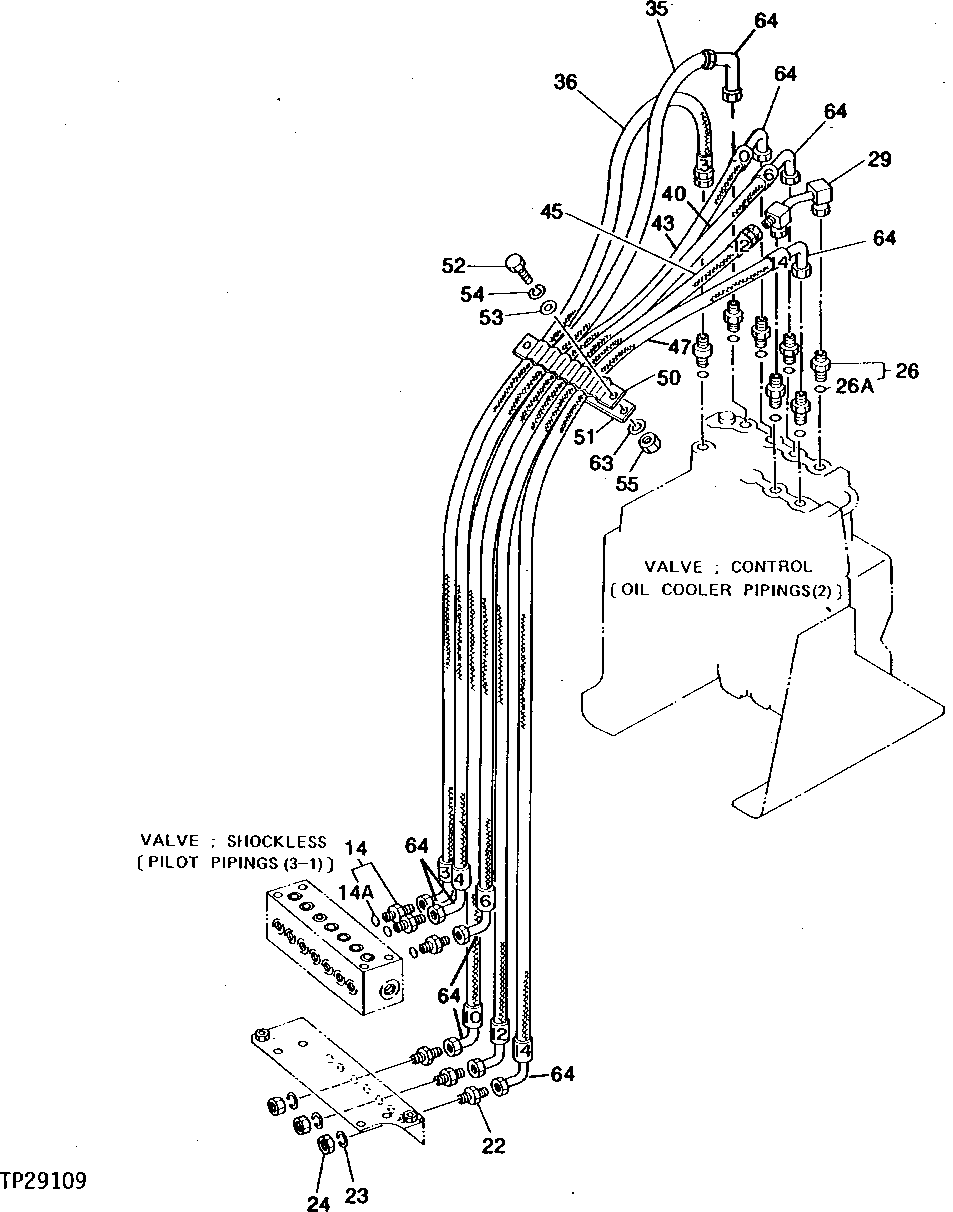

Запчасти John Deere 90D 30 - PILOT PLUMBING 3360 - EXCAVATOR 33

14

4200466

ADAPTER FITTING

(SUB FOR TH108320)

3шт.

14A

CH11570

O-RING

(SUB FOR TH100061)

1шт.

22

R27238

FITTING

(SUB FOR TH108438)

3шт.

23

12H294

LOCK WASHER

5/8"

3шт.

24

14H888

NUT

9/16", (SUB FOR TH108439)

3шт.

26

4202422

ADAPTER FITTING

(SUB FOR TH108440)

7шт.

26A

CH11570

O-RING

1шт.

29

8038382

LINE

(SUB FOR TH108441)

1шт.

35

AT48434

HYDRAULIC HOSE - FABRICATE

9/16" X 1 067 MM (42") X 9/16", (4) (SUB FOR TH108443 ALONG WITH (2) AE24616)

1шт.

36

AT57860

HYDRAULIC HOSE - FABRICATE

9/16" X 1 016 MM (40") X 9/16", (3) (SUB FOR 4203116 ALONG WITH AE24616)

1шт.

40

AT48434

HYDRAULIC HOSE - FABRICATE

9/16" X 1 067 MM (42") X 9/16", (6) (SUB FOR 4203117 ALONG WITH (2) AE24616)

1шт.

43

AT48707

LINE

(10) (SUB FOR 4203119 ALONG WITH (2) AE24616)

1шт.

45

AT52127

HYDRAULIC HOSE

9/16" X 1 124 MM (44-1/4") X 9/16", (SUB FOR TH108452) (12)

1шт.

47

AT36980

HYDRAULIC HOSE - FABRICATE

9/16" X 1 067 MM (42") X 9/16", (14) (SUB FOR 4203121 ALONG WITH (2) AE24616)

1шт.

50

9727639

HOSE CLAMP

(SUB FOR TH108456)

1шт.

51

9727637

PLATE

(SUB FOR TH108457)

1шт.

52

19M7550

CAP SCREW

M10 X 35

2шт.

53

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

54

12M7066

LOCK WASHER

10 MM

2шт.

55

14M7274

NUT

M10

2шт.

63

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

64

AE24616

ELBOW FITTING

9шт.
