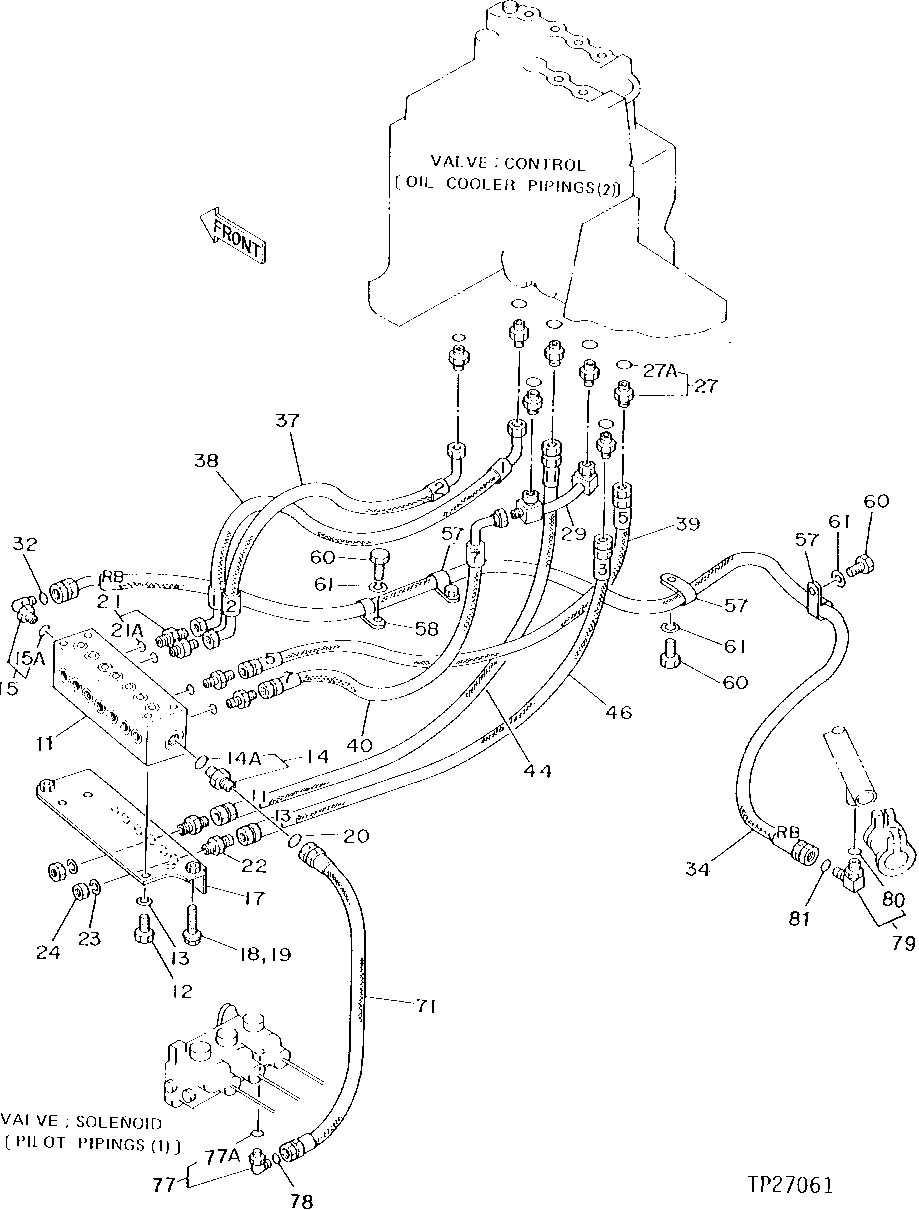

Запчасти John Deere 90D 28 - PILOT PLUMBING 3360 - EXCAVATOR 33

11

4188553

VALVE

(SUB FOR TH108436)

1шт.

12

19M7938

CAP SCREW

M10 X 20

4шт.

13

12M7066

LOCK WASHER

10 MM

4шт.

14

4189602

FITTING

(SUB FOR TH108350)

1шт.

14A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR TH100061) (SUB FOR U46489)

1шт.

15

A853344

ELBOW FITTING

(SUB FOR TH108401, 4200580)

1шт.

15A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR TH100061) (SUB FOR U46489)

1шт.

17

8038154

BRACKET

(SUB FOR TH108437)

1шт.

18

19M7938

CAP SCREW

M10 X 20

2шт.

19

12M7066

LOCK WASHER

10 MM

2шт.

20

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070") (SUB FOR TH108323)

1шт.

21

4200466

ADAPTER FITTING

(SUB FOR TH108320)

4шт.

21A

CH11570

O-RING

1шт.

22

R27238

FITTING

(SUB FOR TH108438)

2шт.

23

12H294

LOCK WASHER

5/8"

2шт.

24

14H888

NUT

9/16", (SUB FOR TH108439)

2шт.

27

4200466

ADAPTER FITTING

(SUB FOR TH108320)

7шт.

27A

CH11570

O-RING

1шт.

29

8038382

LINE

(SUB FOR TH108441)

1шт.

32

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070") (SUB FOR TH108323)

1шт.

34

TH108442

HYDRAULIC HOSE - FABRICATE

13/16" X 1 750 MM (69") X 13/16", (RB)

1шт.

37

AT48428

HYDRAULIC HOSE - FABRICATE

9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR TH108445) (2)

1шт.

38

AT48428

HYDRAULIC HOSE - FABRICATE

9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR TH108446) (1)

1шт.

39

AT48428

HYDRAULIC HOSE - FABRICATE

9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR TH108447) (5)

1шт.

41

AT54262

HYDRAULIC HOSE - FABRICATE

9/16" X 737 MM (29") X 9/16", (SUB FOR TH108449) (7)

1шт.

44

AH108250

HOSE

9/16" X 787 MM (31") X 9/16", (SUB FOR TH108451) (11)

1шт.

46

AT48428

HYDRAULIC HOSE - FABRICATE

9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR TH108454) (13)

1шт.

57

XCL-19

HOSE CLAMP

(SUB FOR TH108459 OR 4192035)

3шт.

58

T28949

CLAMP

(SUB FOR TH108460 OR 4190273)

1шт.

60

19M8324

CAP SCREW

M10 X 16

4шт.

61

12M7066

LOCK WASHER

10 MM

4шт.

71

AT101779

HYDRAULIC HOSE - FABRICATE

13/16" X 445 MM (17-1/2") X 13/16", (SUB FOR TH108461)

1шт.

77

A853344

ELBOW FITTING

(SUB FOR TH108401, 4200580)

1шт.

77A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

78

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070") (SUB FOR TH108323)

1шт.

79

4202112

ELBOW FITTING

(SUB FOR TH108322)

1шт.

80

CH11570

O-RING

1шт.

81

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070") (SUB FOR TH108323)

1шт.
