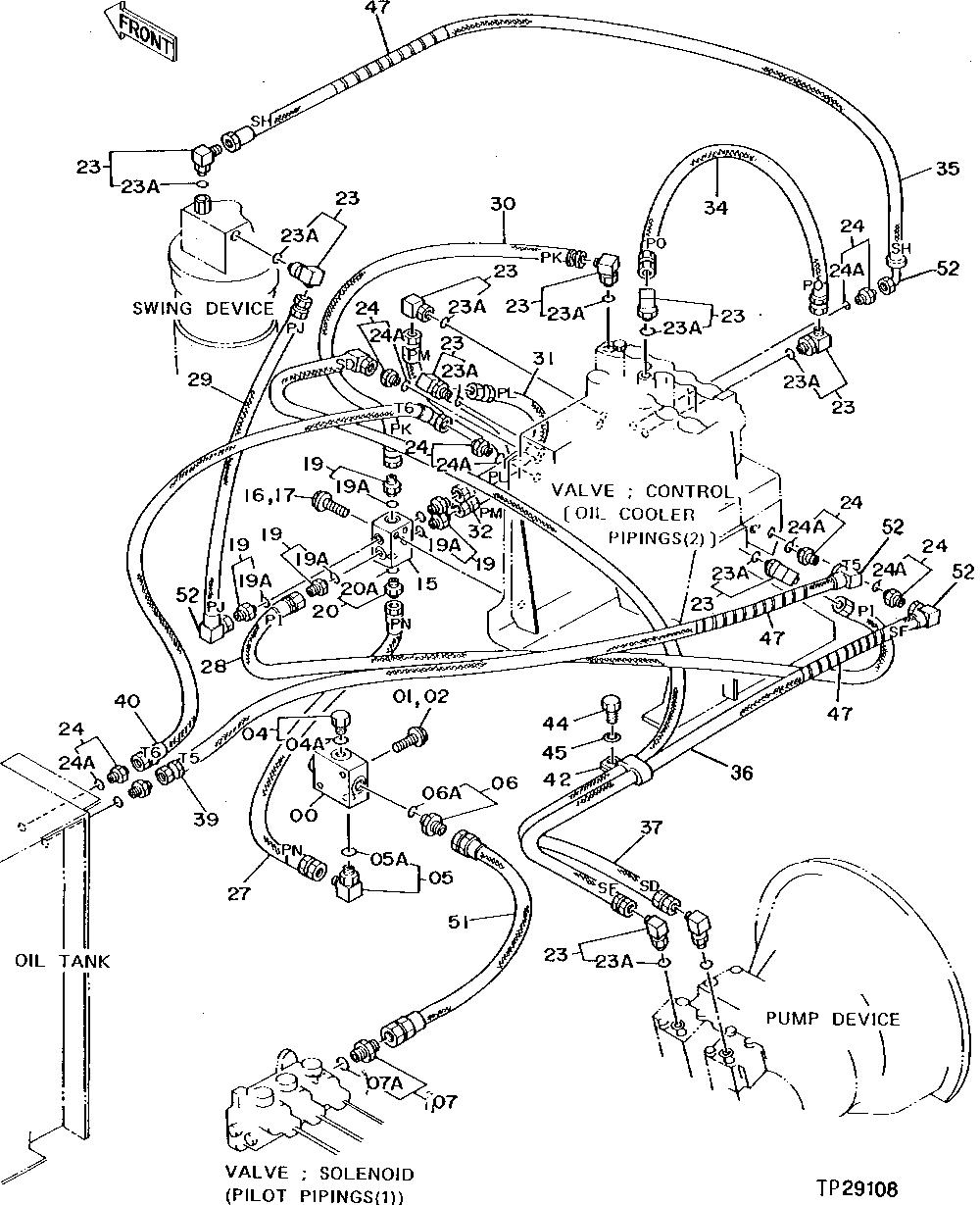

Запчасти John Deere 90D 26 - PILOT PLUMBING 3360 - EXCAVATOR 33

0

9072360

CHECK VALVE

(SUB FOR TH108415)

1шт.

1

19M7935

CAP SCREW

M10 X 55

2шт.

2

12M7066

LOCK WASHER

10 MM

2шт.

4

AT318013

DRAIN PLUG

(SUB FOR 4093624) (SUB FOR TH103949) (SUB FOR TH102536)

1шт.

4A

M800650

PACKING

1шт.

5

4154671

ELBOW FITTING

(SUB FOR TH101047)

1шт.

5A

CH11570

O-RING

1шт.

6

4200469

ADAPTER FITTING

(SUB FOR TH108400)

1шт.

6A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR TH100061) (SUB FOR U46489)

1шт.

7

4200469

ADAPTER FITTING

(SUB FOR TH108400)

1шт.

7A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

15

3035426

MANIFOLD

(SUB FOR TH108416)

1шт.

16

19M7658

CAP SCREW

M10 X 50

2шт.

17

12M7066

LOCK WASHER

10 MM

2шт.

19

4200465

ADAPTER FITTING

(SUB FOR TH108328)

5шт.

19A

M800650

PACKING

1шт.

20

4200467

ADAPTER FITTING

(SUB FOR TH108417)

1шт.

20A

M800650

PACKING

1шт.

23

4154670

ELBOW FITTING

(SUB FOR TH100951)

10шт.

23A

M800650

PACKING

1шт.

24

4200465

ADAPTER FITTING

(SUB FOR TH108328)

7шт.

24A

M800650

PACKING

1шт.

27

AR98204

HYDRAULIC HOSE

9/16" X 407 MM (16") X 9/16", (SUB FOR TH108418)

1шт.

28

AE42282

HYDRAULIC HOSE

7/16" X 900 MM (35-1/2") X 7/16", (SUB FOR TH108419) (PI)

1шт.

29

AE42718

HYDRAULIC HOSE

7/16" X 600 MM (23-1/2") X 7/16", (PJ) (SUB FOR 4200499 ALONG WITH AH89069)

1шт.

30

AE42718

HYDRAULIC HOSE

7/16" X 600 MM (23-1/2") X 7/16", (SUB FOR TH108421) (PK)

1шт.

31

AH97777

HYDRAULIC HOSE

7/16" X 407 MM (16") X 7/16", (SUB FOR TH108422) (PL)

1шт.

32

AH97777

HYDRAULIC HOSE

7/16" X 407 MM (16") X 7/16", (SUB FOR TH108423) (PM)

1шт.

34

AR101376

HYDRAULIC HOSE

7/16" X 356 MM (14") X 7/16", (SUB FOR TH108424) (PO)

1шт.

35

AE42718

HYDRAULIC HOSE

7/16" X 600 MM (23-1/2") X 7/16", (SH) (SUB FOR 4203111 ALONG WITH AH89069)

1шт.

36

AE42281

HYDRAULIC HOSE

7/16" X 1 850 MM (72-3/4") X 7/16", (SF) (SUB FOR TH108426 ALONG WITH AH89069)

1шт.

37

AT30743

HYDRAULIC HOSE - FABRICATE

7/16" X 1 626 MM (64") X 7/16", (SD) (SUB FOR 4204128 ALONG WITH AH89069)

1шт.

39

AE42282

HYDRAULIC HOSE

7/16" X 900 MM (35-1/2") X 7/16", (T5) (SUB FOR 4203007 ALONG WITH AH89069)

1шт.

40

AE42282

HYDRAULIC HOSE

7/16" X 900 MM (35-1/2") X 7/16", (T6) (SUB FOR 4203008 ALONG WITH AH89069)

1шт.

42

4190292

CLIP

(SUB FOR TH108321)

1шт.

44

19M7938

CAP SCREW

M10 X 20

1шт.

45

12M7066

LOCK WASHER

10 MM

1шт.

47

E90991

HOSE GUARD

(SUB FOR TH106022, 4133527 OR 4327293) (CUT TO 600MM LENGTH)

3шт.

51

AT42428

HYDRAULIC HOSE

9/16" X 711 MM (28") X 9/16", (SUB FOR TH108430)

1шт.

52

AH89069

ELBOW FITTING

6шт.
