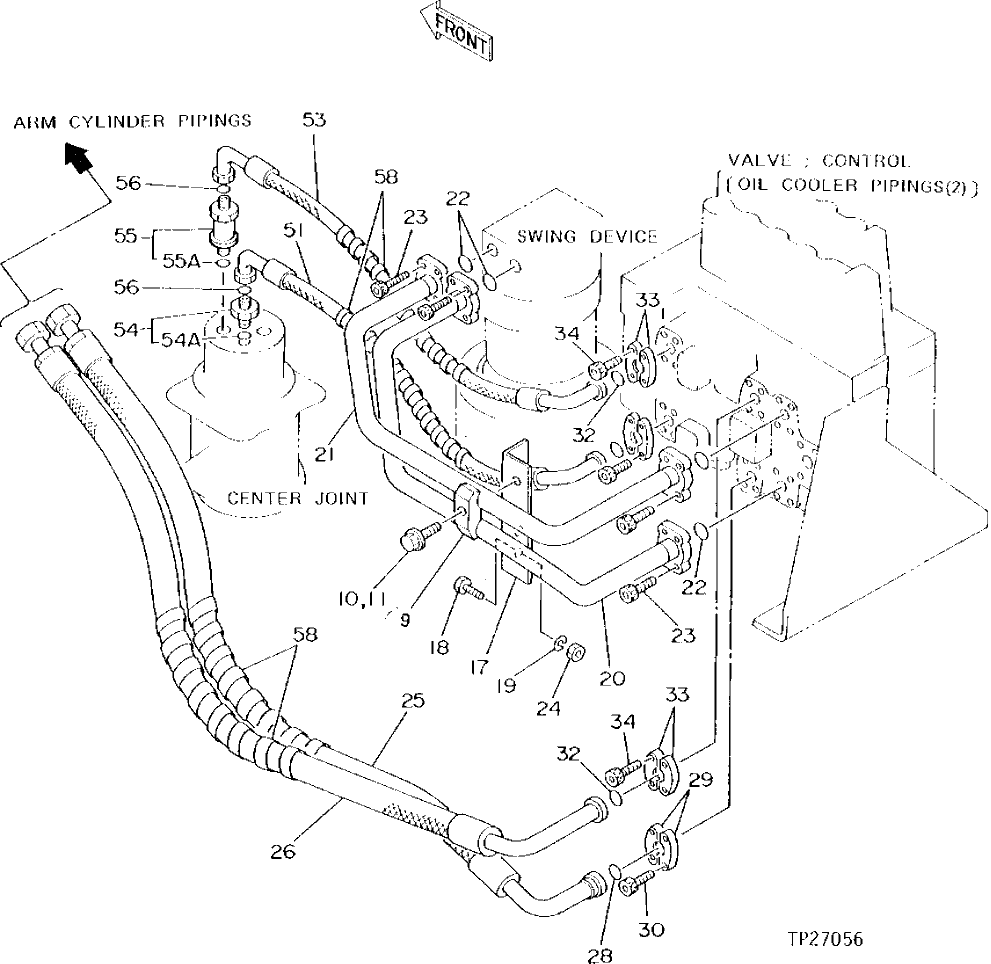

Запчасти John Deere 90D 18 - MAIN PIPINGS 3360 - EXCAVATOR 33

9

4189858

CLAMP

(SUB FOR TH108333)

1шт.

10

19M7361

CAP SCREW

M12 X 50

1шт.

11

12H301

LOCK WASHER

1/2"

1шт.

17

9727592

SUPPORT

(SUB FOR TH108335)

1шт.

18

19M7403

CAP SCREW

M12 X 35

2шт.

19

12H301

LOCK WASHER

1/2"

2шт.

20

8042184

OIL LINE

(SUB FOR TH108336) (SUB FOR TH111891)

1шт.

21

8042185

OIL LINE

(SUB FOR TH108337) (SUB FOR TH111892)

1шт.

22

CH12329

PACKING

(SUB FOR TH100770)

4шт.

23

19M8439

SCREW

M8 X 25

16шт.

24

14M7275

NUT

M12

2шт.

25

TH108338

HOSE

1шт.

26

TH108339

HOSE

1шт.

28

T59014

O-RING

24.990 X 3.530 MM (0.984" X 0.139") (SUB FOR TH100939)

1шт.

29

R29424

FLANGE FITTING

(SUB FOR TH108300)

2шт.

30

19M8337

SCREW

M10 X 30

4шт.

32

R69667

O-RING

18.644 X 3.531 MM (47/64" X 0.139") (SUB FOR TH108340 OR T59013)

3шт.

33

4510173

FITTING

(SUB FOR TH108341)

6шт.

34

19M8439

SCREW

M8 X 25

12шт.

51

TH108347

HOSE

1шт.

53

TH108348

HOSE

1шт.

54

A853166

ADAPTER FITTING

(SUB FOR AT107392 OR 4189619)

1шт.

54A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

55

4189539

ADAPTER FITTING

(SUB FOR AT107393)

1шт.

55A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

56

T77858

O-RING

18.770 X 1.780 MM (0.739" X 0.070") (SUB FOR TH108349)

2шт.

58

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

4шт.
