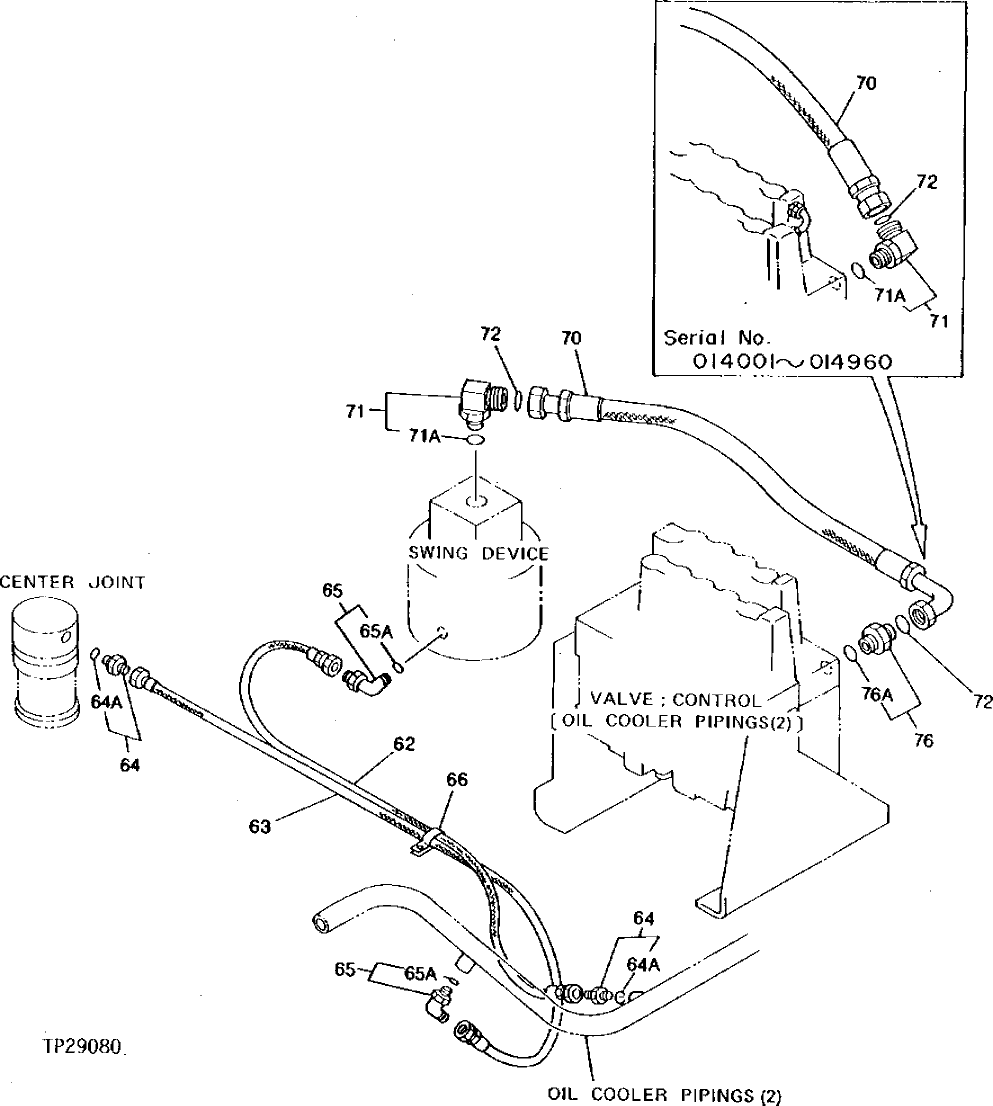

Запчасти John Deere 90D 16 - SUCTION, RETURN AND OIL COOLER PLUMBING 3360 - EXCAVATOR 33

62

AT48422

HYDRAULIC HOSE - FABRICATE

9/16" X 1 422 MM (56") X 9/16", (SUB FOR TH108318)

1шт.

63

AT48717

HYDRAULIC HOSE - FABRICATE

9/16" X 1 131 MM (44-1/2") X 9/16", (SUB FOR TH108319)

1шт.

64

4200466

ADAPTER FITTING

(SUB FOR TH108320)

2шт.

64A

CH11570

O-RING

1шт.

65

4154671

ELBOW FITTING

(SUB FOR TH101047)

2шт.

65A

CH11570

O-RING

1шт.

66

4190292

CLIP

(SUB FOR TH108321)

1шт.

70

AT103301

HYDRAULIC HOSE - FABRICATE

1-7/16" X 705 MM (27-3/4") X 1-7/16", (SUB FOR TH108324)

1шт.

4223584

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH111890)

1шт.

71

A853388

ELBOW FITTING

(SUB FOR TH108325 OR 4198799)

2шт.

4157562

ELBOW FITTING

(SUB FOR TH109540)

1шт.

71A

TH101926

O-RING

28.700 X 3.500 MM (1.130" X 0.138")

1шт.

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

72

T76938

O-RING

23.520 X 1.780 MM (0.926" X 0.070") (SUB FOR TH108326)

2шт.

T77858

O-RING

18.770 X 1.780 MM (0.739" X 0.070") (SUB FOR TH108349)

2шт.

76

AT318016

ADAPTER FITTING

(SUB FOR 4189537, TH110496)

1шт.

76A

TH101926

O-RING

28.700 X 3.500 MM (1.130" X 0.138")

1шт.
